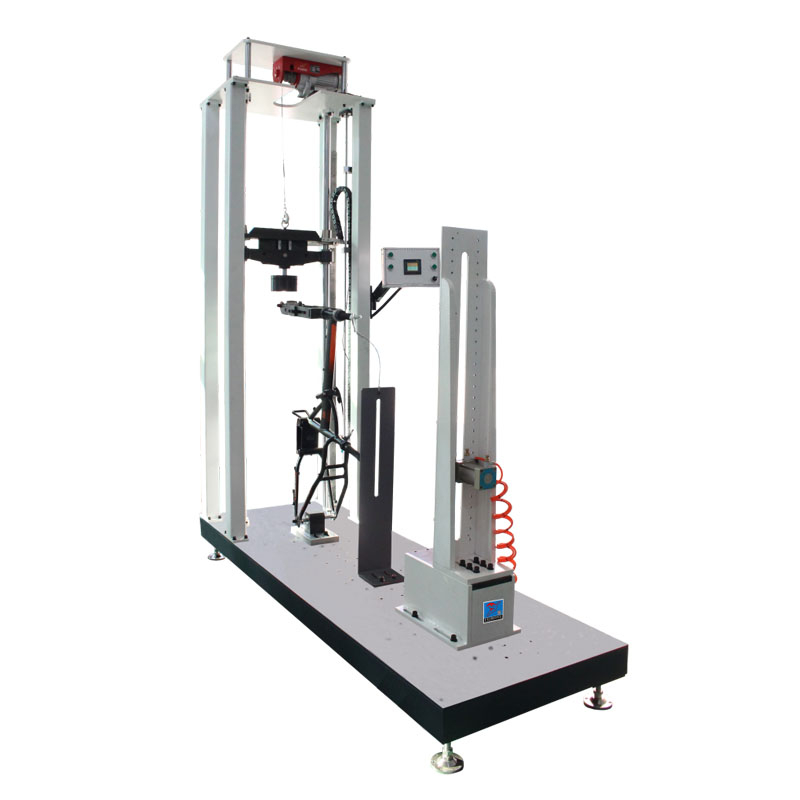

Bicycle Front Fork Backward Impact Testing Machine

Product Overview

The Bicycle Front Fork Backward Impact Testing Machine is a specialized piece of equipment engineered to assess the backward impact resistance of bicycle front forks. Its primary function is to simulate real-world impact scenarios, providing accurate and reliable data to manufacturers, quality control teams, and testing institutions. By subjecting bicycle front forks to controlled backward impacts, this machine helps ensure that the components meet industry standards and safety regulations, ultimately contributing to the production of safer and more durable bicycles.

This testing machine is designed with precision and efficiency in mind. It incorporates advanced technology and robust construction to deliver consistent performance even under repeated testing conditions. Whether used in a factory production line or a dedicated testing laboratory, it serves as an essential tool for evaluating the structural integrity and durability of bicycle front forks.

Features

Impact height: The machine offers a maximum impact height of 1500mm, allowing for a wide range of impact intensity simulations to meet different testing standards.

Height marking scale: It is adjustable according to the height of the mold and test parts combination, ensuring precise positioning for each test.

Impact weight: Comes with 15kg and 22.5kg weights, and can be allocated additionally based on specific test requirements. This flexibility enables testing for various bicycle models and front fork designs.

Lifting guidance: Utilizes linear bearing + SUJ bearing rail, which ensures smooth and stable lifting of the impact hammer, minimizing any interference with the test results.

Impact hammer trigger: Equipped with a mechanical electromagnetic clutch device featuring double fall protection. This ensures reliable and safe release of the impact hammer, preventing accidental drops and ensuring accurate impact timing.

Impact hammer module: Allows for the replacement of various impact hammers according to different test specifications, making the machine versatile for multiple testing scenarios.

Upper and lower limit device: Includes upper and lower limit protection switches with position setting, providing an extra layer of safety and preventing damage to the machine or test specimens due to excessive movement.

Product dimensions: Measures W1000D600*H2400(mm), making it compact enough to fit in most testing environments while still offering sufficient testing capabilities.

Weight: Approximately 160KG, ensuring stability during operation.

Power: Operates on AC220V, 15A, which is a standard power supply, making it easy to integrate into existing electrical systems.

Unique Advantages

Beyond the technical parameters, the machine boasts several unique advantages. Its robust construction using high-quality materials ensures long-term durability and minimal maintenance requirements. The user-friendly interface allows for easy operation and quick setup, reducing the time and effort needed to conduct tests. Additionally, the precise control system ensures that each test is repeatable, providing consistent results that are crucial for accurate analysis and comparison.

Applications

The Bicycle Front Fork Backward Impact Testing Machine finds extensive applications in the bicycle industry. It is widely used by bicycle manufacturers during the production process to conduct quality checks on front forks before they are assembled into finished bicycles. This helps identify any potential defects or weaknesses early on, reducing the risk of product recalls and ensuring customer safety.

Testing institutions and regulatory bodies also rely on this machine to verify that bicycle front forks comply with national and international standards. By performing rigorous impact tests, they can certify that the products meet the required safety and performance criteria.

Furthermore, research and development departments in bicycle companies use the machine to test new front fork designs and materials. This allows them to evaluate the performance of innovative concepts and make improvements before mass production, driving technological advancements in the industry.

It is suitable for testing front forks of various types of bicycles, including mountain bikes, road bikes, city bikes, and electric bicycles. Its versatility makes it an indispensable tool for anyone involved in the design, production, or testing of bicycle front forks.

FAQ

What is the main purpose of the Bicycle Front Fork Backward Impact Testing Machine?

The main purpose of this machine is to test the backward impact resistance of bicycle front forks. It simulates real-world impact conditions to determine if the front forks can withstand such forces without failing, ensuring their safety and durability.

Can the impact weight be adjusted beyond 15kg and 22.5kg?

Yes, the impact weight can be allocated additionally according to specific test requirements. This allows the machine to accommodate a wider range of testing standards and bicycle front fork designs.

How does the double fall protection on the impact hammer trigger work?

The mechanical electromagnetic clutch device with double fall protection ensures that the impact hammer is released only when intended. It prevents accidental drops by having two separate safety mechanisms, providing an extra level of security during testing operations.

What power supply is required for the machine?

The machine operates on AC220V, 15A, which is a standard power supply in most regions. This makes it convenient to install and use in various testing environments.

Is the machine easy to operate?

Yes, the machine is designed with a user-friendly interface, making it easy to set up and operate. Even personnel with limited technical expertise can learn to use it effectively with minimal training.
