Surviving the Torture Test – How We Validate MTB Frame & Fork Fatigue Before It Hits the Dirt

Every mountain bike engineer knows the uneasy transition between a flawless CAD design and a production-ready bicycle. On the computer screen, simulations look promising. Finite Element Analysis (FEA) predicts that every tube junction and weld area can withstand the intended loads.

But the real world has a way of exposing weaknesses that software simply can't predict.

For modern enduro, trail, and downhill mountain bikes, durability is non-negotiable. Riders expect their bikes to survive repeated drops, aggressive braking, rough rock gardens, and countless high-impact landings. The greatest challenge isn't achieving stiffness on day one—it's ensuring long-term fatigue resistance after months or even years of abuse.

That's why laboratory fatigue testing plays a critical role in bicycle development. Before any frame or fork reaches the trail, it must endure an extensive series of controlled fatigue and durability tests designed to accelerate years of riding into just a few days or weeks.

Phase 1: Pushing the Frame to Its Structural Limits

Mountain bike frames are subjected to complex loads from multiple directions during actual riding. To evaluate how each section of the frame responds under repeated stress, we begin with dedicated frame fatigue testing procedures.

The first stage involves the Frame Horizontal Fatigue Testing Machine, which simulates severe frontal impacts similar to striking a square-edged obstacle at speed.

Next, the frame is transferred to the Frame Vertical Fatigue Testing Machine, where it experiences continuous vertical loading cycles that replicate hard landings, jump impacts, and huck-to-flat scenarios commonly encountered in gravity riding disciplines.

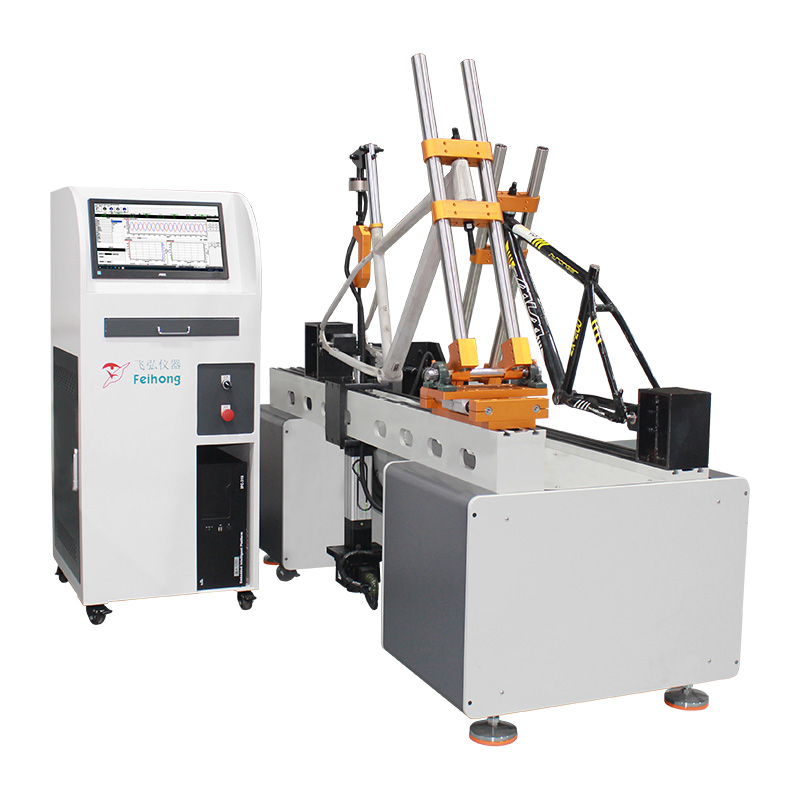

For advanced carbon and aluminum frame development programs, we often utilize a Combined Frame Vertical & Horizontal Fatigue Testing Machine. This system simultaneously applies vertical and horizontal loads in varying phases, creating a much more realistic representation of the multidirectional forces experienced on technical trails and downhill courses.

By identifying high-stress zones early in development, engineers can optimize tube profiles, reinforcement structures, and carbon layup schedules before production begins.

Phase 2: Simulating Real Trail Conditions

While static and directional fatigue tests provide valuable structural data, they don't fully replicate what happens when a bike is actually rolling over terrain.

To bridge that gap, we employ the Frame Dynamic Tread Fatigue Testing Machine.

In this test, the complete frame assembly is mounted onto a rolling-road simulation platform. Under a standardized rider load—typically around 90 kg—the wheels continuously travel across specially designed obstacles that generate vibration, impact, and rolling resistance forces.

This dynamic fatigue test allows engineers to evaluate:

• Carbon fiber layup durability

• Frame vibration resistance

• Joint integrity under high-frequency loading

• Long-term fatigue life performance

• Structural stability over millions of cycles

The result is a far more accurate assessment of how the bicycle will behave after prolonged real-world use.

Phase 3: Fork and Braking System Validation

As riding speeds continue to increase and brake systems become more powerful, front-end durability has become one of the most critical areas of mountain bike safety testing.

To verify steering and suspension reliability, we utilize the Front Fork Bending Fatigue Rearward Impact Testing Machine. This equipment repeatedly applies rearward bending forces to the fork, simulating aggressive cornering, heavy compressions, jump landings, and severe impacts.

Braking performance introduces another major source of structural stress.

With modern MTB platforms commonly equipped with 200 mm to 220 mm disc rotors, braking torque transmitted through the frame and fork can be substantial. To ensure compliance with international bicycle safety standards and prevent fatigue-related failures, dedicated brake fatigue tests are conducted on both the frame and fork assemblies.

Rear Triangle Braking Validation

The rear frame structure is evaluated using the Frame Disc Brake Dynamic Fatigue Testing Machine, which repeatedly applies braking loads to assess the durability of the brake mount area and surrounding structure.

Front Fork Braking Validation

The Front Fork/Suspension Fork Forward Disc Brake Fatigue Testing Machine subjects the fork and brake mounting interfaces to thousands of cycles of simulated emergency braking forces.

These tests help verify that critical components such as caliper mounts, dropouts, and reinforcement zones can withstand long-term service loads without cracking, delamination, or structural failure.

Key Safety Verification Areas

Rear Frame Safety
→ Frame Disc Brake Dynamic Fatigue Testing Machine

Front Fork Safety
→ Front Fork/Suspension Fork Forward Disc Brake Fatigue Testing Machine

Steering Integrity
→ Front Fork Bending Fatigue Rearward Impact Testing Machine

Meeting International Bicycle Testing Standards

Beyond internal development requirements, many of these testing procedures are aligned with internationally recognized bicycle safety standards, including:

• ISO 4210 Bicycle Safety Requirements

• EN Bicycle Testing Standards

• Mountain Bike Fatigue Test Requirements

• Carbon Frame Durability Verification Protocols

By combining standardized testing with application-specific fatigue simulations, manufacturers can obtain a more complete understanding of real-world product reliability.

What the Data Revealed

One recent development project provided a perfect example of why comprehensive fatigue testing matters.

During disc brake fatigue testing, engineers discovered a significant stress concentration near the front brake mount reinforcement area. Although the design had performed well in simulation, laboratory testing revealed an unexpected fatigue hotspot.

Using data collected from the Front Fork Forward Disc Brake Fatigue Testing Machine, the engineering team optimized the carbon fiber layup transition in that region. The result was a 35% increase in fatigue life without adding any additional weight.

Without physical testing, this issue would likely have remained undetected until much later in the product lifecycle.

Final Thoughts

Designing a high-performance mountain bike is equal parts engineering and creativity. Validating that design, however, is driven entirely by data.

From frame fatigue testing and dynamic tread simulation to fork impact validation and brake fatigue analysis, every stage of testing contributes to a safer, stronger, and more reliable bicycle.

For manufacturers, investing in advanced MTB testing equipment isn't simply about meeting standards—it's about delivering confidence. Because when riders push their limits on the trail, they need complete trust that their frame and fork have already survived something even tougher inside the laboratory.
