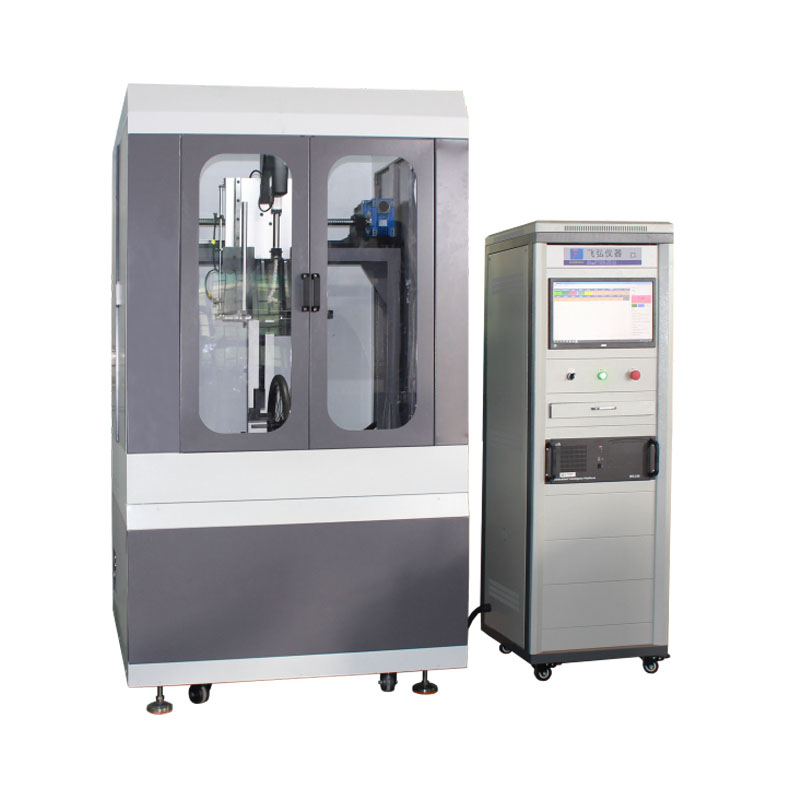

Bicycle Wheel Rim Deflection Testing Machine
According to the standards: EN14764:2005 and ISO4210-2014
This machine uses a large wheel as the active wheel to drive the tested wheel rim, and can perform dynamic walking test, brake performance test, and wheel static pressure test. It is suitable for carbon fiber frame brake testing.
Test Function:
1. Load bearing test;
2. Road condition test (with obstacles);
3. deflection test;
4. Temperature rise test.
Technical parameters:
Load | 1500N(direct pressure) |
Obstacle angle | 30 degree |
Power supply | 380V±10% 50HZ 5.5KW |
Speed range | 0.05~35000m/h |
Operation direction | Supports forward and reverse rotation |
Tray lifting range | 50~200 mm |
Absolute error of the measured stroke | ≤±0.5m |
Stroke control range | 0.05—99.9km |
Absolute error of the measurement time | 0.1 Second |
Main machine dimension | 2900*1200*2500mm |
Control cabinet size | 600*600*1850 mm |
Weight | About 510kg |
