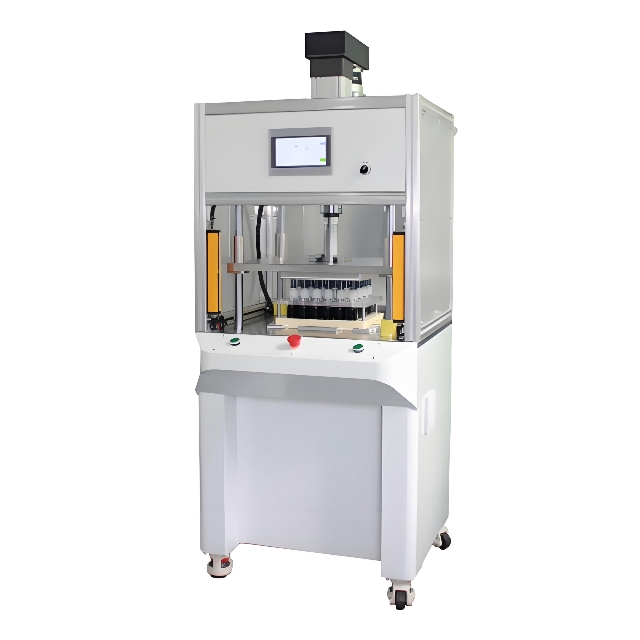

Product Overview
This machine is primarily used for the press-fit assembly of the oil cup and base of the smoke cartridge.
Performance characteristics
1. The equipment has high horsepower and is easy to operate and understand.
2. Utilizing a touchscreen operating system, multiple parameters are immediately clear at a glance, with the capability to save product type data.
3. The equipment is easy and fast to operate, improving work efficiency.
4. The equipment is compatible with multiple types of electronic cigarette atomizers.
Action flow
The specific operational steps are as follows: On the platform of the capping machine, the operator places the base of the oil cup in the fixture, which holds the semi-finished oil-filled cup, and then places it on the tray platform. The bottom of the capping machine has a pressing device, which aligns with the fixture for pressing. When the pressing device reaches the set pressing height, it will perform the pressing operation and return to a safe height after pressing. This pressing device is characterized by its high work efficiency and ease of use.
instrument parameters
Drive Type:Electric servo
Input voltage (V):Single-phase AC220V
Input power (W):3500W
Equipment size (mm):720x730x1400mm（L*W*H）
Equipment weight (KG):330kg
Work pressure (ton):4T
Environmental conditions:Temperature: 10~60°C Humidity: ≤80%
