Transitioning from manual craft production to automated manufacturing requires precise synchronization of parts, labor, and technology. Ever since the advent of interchangeable parts, the drive has been toward maximizing throughput. Today, a poorly specified assembly process creates production bottlenecks and inflates unit costs. Manufacturing engineers and operations directors struggle to balance throughput requirements with the flexibility needed for shorter product life cycles. Many operations over-invest in rigid automation, while others under-invest in modularity, losing baseline efficiency. This transition shifts dependency away from variable human labor toward scalable, predictable machine output. You must engineer these solutions to match your distinct cycle times and factory layout limitations. Examining concrete examples of modern manufacturing systems provides the operational framework necessary to specify, evaluate, and procure the right production infrastructure for specific BOM (Bill of Materials) requirements. Evaluating from progressive manual lines to deterministic, robotic-driven Assembly Machines helps solve this exact problem.
Hierarchy Dictates Design: Every system scales from individual components to sub-assemblies to final products; how you structure this in your CAD/BOM directly determines machine requirements.
The Four Pillars of Modularity: High-performance assembly machines leverage modular sub-assemblies to deliver flexibility, production efficiency, isolated quality control, and system scalability.
The "Dual Assembly" Interdependence: Modern manufacturing relies equally on physical hardware assembly (actuators, tooling) and software "assembly" (low-level, deterministic code ensuring real-time precision).
Mathematical Constraints Drive ROI: System profitability is bottlenecked by the "precedence graph" (assembly order) and "cycle time" (production speed). Matching these to machine capabilities prevents capital waste.
Flexibility vs. Throughput Trade-off: Evaluating dedicated continuous-motion assembly machines against modular, flexible robotic cells is the primary decision-stage hurdle for modern manufacturers.
Modern production relies fundamentally on progressive assembly. This framework defines a controlled sequence where incomplete products move systematically between designated workstations. Moving either linearly on conveyors or sequentially through modular cells, the base unit receives parts one by one until it reaches full completion. This method strips wasted motion out of the production cycle. It ensures completely predictable output metrics and stabilizes overall equipment effectiveness (OEE).
This engineering foundation connects directly to Henry Ford's original principles. These core rules still govern modern automated equipment today. First, you optimize worker and tool placement to guarantee the shortest possible distance for part movement. Second, production lines utilize gravity, chutes, and mechanical feeders for efficient, zero-energy part delivery. Third, the system uses a sliding or moving mechanism, such as a pallet-transfer conveyor, to dictate the pace of production. Modern automated equipment digitizes and accelerates these three core rules through servo motors, programmable logic controllers (PLCs), and machine vision.
Understanding production equipment requires breaking down the product's structural hierarchy. Every manufactured good follows a strict, non-negotiable progression from base material to finished unit.

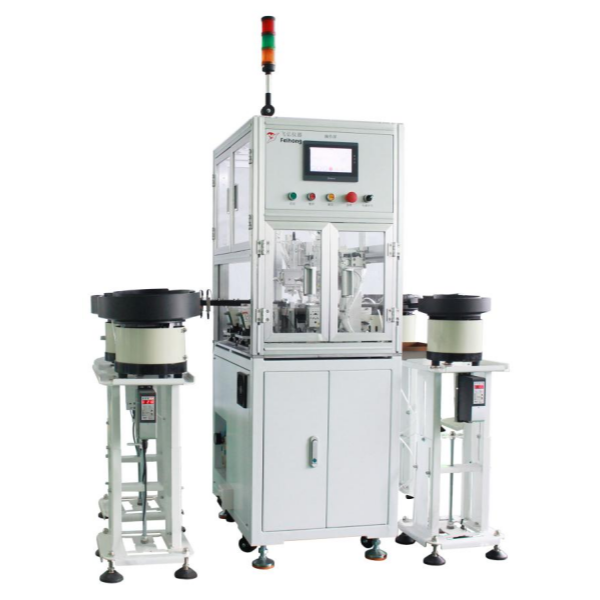

Individual Components: These represent the indivisible base elements. Examples include raw brass gears, stamped steel brackets, threaded inserts, and standard hex fasteners. These items cannot be broken down further without destroying them. In automated lines, they require precise bulk feeding mechanisms like vibratory bowl feeders, step feeders, or flexible robotic bin-picking stations.
Sub-assemblies: These are modular, pre-assembled functional units. Engineers categorize them into mechanical sub-assemblies (like a planetary gearbox), electrical sub-assemblies (like a printed circuit board assembly or PCBA), and mechatronic sub-assemblies (like a smartphone camera module with auto-focus motors). Sub-assemblies enable concurrent parallel processing. They also allow for rigorous offline quality testing before final integration, which prevents costly rework downstream.
Connecting Elements: These constitute the physical joining mechanisms. Bolts, ultrasonic welds, laser welds, structural epoxies, and snap-fit plug connectors dictate the exact tooling requirements of your automation equipment. A station dispensing structural epoxy looks entirely different from a station driving pneumatic screws.
The Final Assembly: This represents the ultimate integration stage. Specialized equipment merges validated sub-assemblies and base components into the completed, fully functional end product, ready for end-of-line (EOL) testing and packaging.
Your Bill of Materials (BOM) acts as the single source of truth for the entire factory floor. Defining "Assemblies" accurately within your CAD software directly dictates the physical layout of your workstations. If your engineering team generates a flat BOM, procurement will likely purchase linear, serial production lines. If engineering structures a multi-level, modular BOM, manufacturing can build parallel processing cells. Structuring this data correctly guides CapEx decisions. It tells operations exactly what kind of automated machinery the facility needs to hit target cycle times without overspending.
| BOM Structure | System Architecture Impact | Machine Type Required | Production Advantage |
|---|---|---|---|
| Flat BOM (Single Level) | Linear, serial production line | Dedicated progressive indexing machines | Low unit cost for extremely high volumes |
| Multi-Level BOM (Modular) | Parallel cellular layout | Flexible robotic cells, offline test stations | High agility, isolated quality control capabilities |
| Configurable BOM (High Mix) | Agile, operator-assisted routing | Cobots, digital work instruction terminals | Rapid changeovers for customized orders |
Automotive manufacturing represents the pinnacle of progressive continuous lines. The architecture relies on moving chassis mounted to heavy-duty automated guided vehicles (AGVs) or overhead power-and-free conveyors. Highly specialized, parallel sub-assembly feeders supply major modules like drivetrains, seating systems, and dashboards directly to the main line exactly when needed. This parallel processing creates massive efficiency gains.
Producing sub-modules simultaneously allows a plant to output a finished unit every 60 seconds. Traditional serial production for heavy machinery might require hours per unit. Machine applications in this sector include heavy payload 6-axis robotics for spot welding, automated multi-spindle torque stations for heavy lug fasteners, and vision-guided robotic arms for precise windshield installation. These lines prioritize relentless throughput and maximum uptime.
The 3C sector (Computers, Communications, and Consumer Electronics) demands entirely different architectures. These setups handle complex box builds, delicate custom wire harnesses, custom cable configurations, and tight-tolerance PCB integration. The environment frequently requires ISO Class 7 clean-room conditions or micron-level mechanical tolerances. Equipment footprints must remain incredibly compact to maximize clean-room floor space.
Machine applications here prioritize extreme speed and high-resolution vision. Facilities deploy high-speed Selective Compliance Assembly Robot Arm (SCARA) robots and Delta robots for rapid pick-and-place operations. They rely heavily on in-line Automated Optical Inspection (AOI) stations to catch microscopic soldering defects or misaligned surface mount components. Precision fluid dispensing systems apply thermal pastes, conformal coatings, and structural adhesives with strict milligram accuracy.
Industrial fluid handling systems require high-mix, low-volume (HMLV) production environments. The architecture involves custom rack assemblies, pneumatic manifolds, and specialized utility boxes. Progressive continuous lines fail completely here due to constant product changeovers and unpredictable batch sizes. Instead, manufacturers build custom modular cells using flexible aluminum extrusion framing.
Machine applications in this space feature flexible, semi-automated assembly stations. Collaborative robots (cobots) work directly alongside human operators without heavy safety caging. Digital work instructions project directly onto the workbench via overhead lasers. These visual guides route human operators through complex pneumatic tubing paths and dense wiring schematics, effectively error-proofing the manual portions of the build.
The visible layer of automated production consists of physical material handling and tooling. Material handling hardware dictates the precise flow of parts through space. Pallet-transfer conveyors, gravity chutes, and high-speed rotary dial indexers dominate the factory floor. Engineers explicitly design these mechanical pathways to minimize unnecessary movement, adhering strictly to Lean manufacturing principles.
Actuation and tooling represent the interactive layer where machines touch the product. Pneumatic cylinders provide rapid, cost-effective linear force for staking or pressing. Servo motors deliver highly controllable, variable rotation and precise positioning for complex paths. Custom end-of-arm tooling (EOAT) grips, places, and joins specific sub-assemblies. EOAT ranges from simple pneumatic parallel grippers to complex vacuum arrays and magnetic lifting tools. The design of the EOAT must securely manipulate the part without causing cosmetic or structural damage.
| Actuator Type | Primary Mechanism | Best Application Use Case | Cost & Complexity |
|---|---|---|---|
| Pneumatic Cylinders | Compressed air pressure | Simple, two-position linear motion (extend/retract) | Low CapEx, High long-term energy OpEx |
| Servo Motors | Electromagnetic rotary force | High-precision, multi-stop positioning tasks | High CapEx, High programming complexity |
| Hydraulic Actuators | Pressurized fluid power | Extreme force requirements (heavy pressing, stamping) | High CapEx, High maintenance requirements |
Modern equipment operates heavily on a "Dual Assembly" paradigm. While the physical steel and aluminum structure assembles hardware, the control brain relies heavily on software "assembly" language. Industrial automation demands rigid, low-level PLC code. It requires deterministic performance. You cannot run a high-speed production machine on a standard Windows or Linux operating system. High-level IT languages process instructions with variable timing based on CPU load.
Deterministic code, running on industrial protocols like EtherCAT or PROFINET, guarantees millisecond-precise execution every single cycle. This exact timing prevents robotic collisions and ensures perfectly timed hand-offs between fast-moving indexing tables and robotic grippers. This control layer depends strictly on discrete I/O (Input/Output) processing. Proximity sensors, vision cameras, and servo drives communicate instantly across the network.
This instant feedback loop maintains safety protocols. It ensures mechanical synchronization across the entire precedence graph. Equipment designers must also reference international standards constantly. ISO 8373 establishes strict baseline definitions for industrial robots. It mandates specific criteria for multi-axis, programmable mechanical systems operating within these high-speed automated environments.
Procuring automation equipment begins with raw factory mathematics. You must accurately map out your precedence constraints. A precedence graph identifies rigid sequence dependencies mathematically. For example, a machine must press a bearing into a housing, insert a shaft, and then bolt a cover over the housing. You cannot reverse this order. These physical dependencies dictate machine sequencing, floor layout, and how many stations you need.
Next, engineers must master cycle time calculation to understand machine speed requirements. You determine your required output rate, known as Takt time. Takt time equals your available production time divided by customer demand. If you have 480 minutes of shift time and need to build 480 units, your Takt time is 60 seconds per unit. Comparing Takt time against machine capabilities determines your entire investment path. You will either invest in slower, serial machines or procure high-speed, parallel processing cells with multiple robots working concurrently.
Manufacturing directors face a constant fork in the road regarding equipment type. Dedicated machines, frequently known as hard automation, represent one path. Examples include continuous-motion rotary dials or cam-driven indexing machines. They operate best for ultra-high-volume, low-mix products like disposable lighters or ballpoint pens. Hard automation requires high initial CapEx. However, it delivers an incredibly low unit cost over time due to blazing speeds. The primary drawback remains its total inflexibility to product design changes.
Flexible and modular systems offer the modern alternative. These setups utilize agile 6-axis robotics, SCARA arms, and modular 3D vision systems. They carry a higher CapEx and a slower cycle time, leading to a higher cost per unit produced. Yet, they allow for rapid component scalability. When a product life cycle ends, you do not scrap the machine. You simply reprogram the cell, change out the EOAT, and feed a new product through the line.
System evaluation requires a comprehensive Total Cost of Ownership (TCO) analysis. You must evaluate the initial capital expenditure (CapEx) against long-term operational expenditure (OpEx). Key OpEx factors include preventative maintenance schedules, daily compressed air energy consumption, tooling wear parts, and the physical square footage the machinery occupies on your factory floor.
You must also calculate the financial impact of defect interception. Modular stations allow testing at the sub-assembly level. Catching a faulty PCBA before it enters a hermetically sealed aluminum chassis saves massive amounts of money. It prevents final assembly rejection, reduces expensive scrap material, and significantly lowers the Cost of Poor Quality (COPQ). ROI calculations must include these avoided scrap costs to paint an accurate financial picture.
Integrating automation introduces distinct human risks. Physical repetitive stress injuries plague manual or poorly designed semi-automated lines. Workers suffer from carpal tunnel and joint degradation. Sociological impacts also arise. Worker alienation and extreme boredom stem from single-task repetition over an eight-hour shift. Declining morale directly correlates to increasing defect rates and lower final product quality.
Mitigation requires strategic technology deployment adhering to ISO/TS 15066 safety guidelines. Implementing collaborative robots (cobots) changes the factory dynamic entirely. Cobots handle heavy lifting operations, eliminating strain. They manage high-torque fastening and highly repetitive positioning tasks. This shift elevates the human worker's role. Humans transition from brute-force labor to high-cognition oversight, process management, and complex problem solving.
System integration often exposes severe line balancing problems. A single slow machine creates cascading bottlenecks down the entire factory floor. If Station C takes 45 seconds while Station A and B take 20 seconds, Station C becomes the line constraint. This inefficient station forces expensive upstream robots to sit idle while simultaneously starving downstream operators of parts.
Mitigation relies on virtual simulation before building actual hardware. Engineering teams must utilize discrete event simulation and digital twin software before physical installation begins. A digital twin allows you to stress-test throughput virtually. You can identify I/O communication lags, map robot reach studies, and expose mechanical bottlenecks without spending a single dollar on physical steel.
Quality control escapes represent the most expensive risk in manufacturing. Sub-assembly faults advancing to final stages destroy profit margins. When a defective part moves forward on the line, it wastes valuable downstream machine cycles. You end up assembling a product destined for the scrap bin, wasting the materials, the labor, and the machine time.
Mitigation demands integrated validation and poka-yoke (error-proofing) principles. You must integrate in-line vision systems directly into the workstations. Equip machines with force-feedback sensors and load cells. These tools provide real-time validation. If a servo torque driver senses a cross-threaded bolt based on the resistance curve, it halts the process instantly. It flags the specific unit for rejection before further value is added to the defective assembly.
An effective production environment is never merely a sequence of conveyors moving metal boxes. It is a highly synchronized integration of modular hardware, deterministic software, and rigorously managed BOMs. Success requires understanding exactly how components flow through a validated structural hierarchy, moving from single fasteners up to highly complex final integrations.
Base your procurement logic on strict mathematical evaluation. Analyze your precedence graph dependencies to structure your floor layout. Calculate your precise Takt time requirements to understand machine speed constraints. Determine your organization's acceptable trade-off between flexible robotic operations and dedicated, high-speed hard automation. Proceeding without this data guarantees stranded capital and missed production quotas.
Take these concrete next steps today:
Conduct a rigorous line-balancing audit of your current manual processes using time-study software to locate exact cycle bottlenecks.
Draft a comprehensive sub-assembly BOM with your engineering team to identify which modules can be built and tested in parallel.
Establish specific OEE targets for your future equipment based on historical downtime data and quality metrics.
Request proofs-of-concept (POCs) from automation integrators, demanding strict cycle time guarantees before signing purchase orders.
A: This defines the mathematical challenge of assigning production tasks to specific workstations. The primary goal is minimizing idle time across the entire line. You must meet strict cycle time constraints, ensuring output matches customer demand, without ever violating the physical sequence dependencies mapped out in the precedence graph.
A: Modular design relies on four mechanical pillars. Flexibility allows you to replace specific modules instead of scrapping whole machines. Efficiency stems from pre-fabrication and parallel work. Quality improves via isolated station testing. Scalability lets you reuse proven modular stations across entirely different product lines, extending the life of the asset.
A: Sub-assemblies represent modular functional units built from individual discrete components. Common examples include mechatronic camera modules, printed circuit boards, or pre-built gearboxes. Final assembly is the last integration stage. High-level machines merge these validated sub-assemblies together with connecting elements into the completed, fully sellable product.
A: Deterministic systems run on low-level industrial code utilizing real-time networks like EtherCAT. They guarantee a mechanical response within a strictly defined, microsecond timeframe. This exact timing is absolutely mandatory. It prevents physical robot collisions, guarantees perfectly timed hand-offs, and prevents defect generation during high-speed manufacturing processes.
A: Precedence graphs map rigid operational dependencies. If Task B mathematically cannot start until Task A finishes, this physical reality dictates your equipment design. It directly determines floor layout, sequential tooling operations, and the exact parallel processing capabilities your automated machines must possess to function correctly.
A: Several core drivers dictate the final equipment costs. These include your required cycle time speed, necessary robotic payload capacity, and clean-room requirements. Additional massive costs stem from integrating machine vision systems, engineering custom end-of-arm tooling (EOAT), and developing complex deterministic PLC control software.
A: Modularity dramatically extends equipment lifespan and lowers the Total Cost of Ownership. It allows individual sub-assembly stations to be upgraded or rapidly repurposed for new product lines. This flexibility prevents entire multi-million dollar automation lines from becoming completely obsolete and written off during standard product life cycle changeovers.
