Product Overview

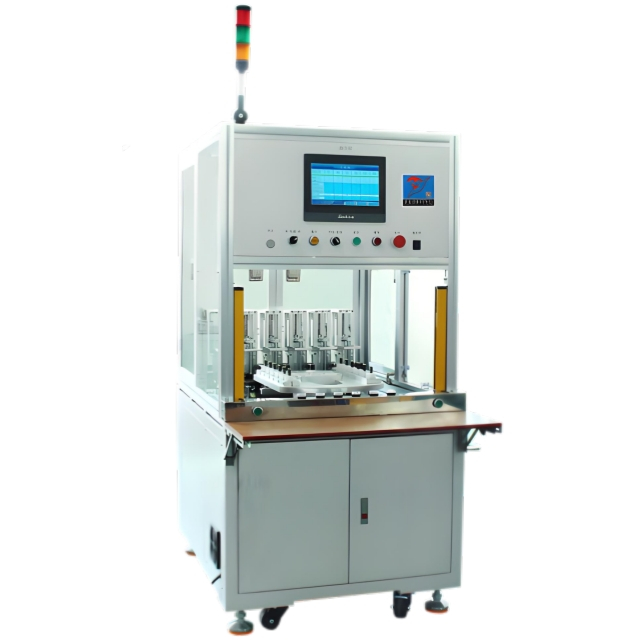

This machine is used for finished cigarette rod suction resistance test, sensitivity test(upper and lower limit), voltage test (no load voltage, load voltage) and short circuit protection test.
Specification Parameters
No | Item | Parameters | Accuracy |
1 | Station | 6 Station |
|
2 | Suction resistance range | 0～-3000Pa | ±10pa |
3 | Smoking volume | 0～100ml | ±1ml |
4 | Airflow speed | 0～30ml/s | ±0.1ml/s |
5 | True effective value voltage | 10V | ±0.01V |
6 | Suction Resistance | 1/0.2Ω | ±2% |
7 | Smoking time | 0～99 s |
|
8 | Pause smoking time | 0～99999 s |
|
9 | Test port fixture | Simulated vape cartridge |
|
10 | Test parameter | Upper and lower limits can be set, machine will automatically judge whether the sample is qualified or not. |
|
11 | Unqualified product alarm | Buzzer, indicator light: red / green light |
|
12 | USB port | 1个 |
|
13 | Bottom | Equipped with universal wheel |
|
14 | Product dimension | 1500*1000*1900mm（长宽高） |
|
15 | Capacity | 720pcs/H, 30S/cycle |
|
