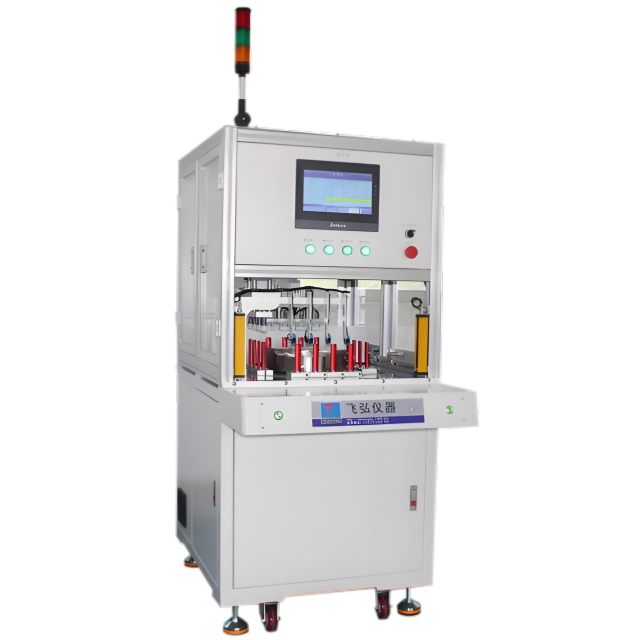

Cigarette Rod Four in One Turntable Testing Machine

This machine is used for electronic cigarette suction resistance test, charging current test, voltage test (no load voltage, load voltage), short circuit protection test and pressing, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not.

Availability:

Quantity:



Inquire Add to Basket

Cigarette Rod Four in One Turntable Testing Machine Smoking frequency tester Smoking duration tester

Product Description

Product Overview

This machine is used for electronic cigarette suction resistance test, charging current test, voltage test (no load voltage, load voltage), short circuit protection test and pressing, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not.

Specification Parameters

Suction mode	Flow rate suction, time suction
Station	4 Station
Smoking time	1-10s
Display and control mode	Touch screen+ PLC+self-programming
Flow rate	0-50ml/s
Suction Resistance	0-3000pa
Product dimension	68010601540mm
Weight	About 120kg
Power	AC220V 50Hz
