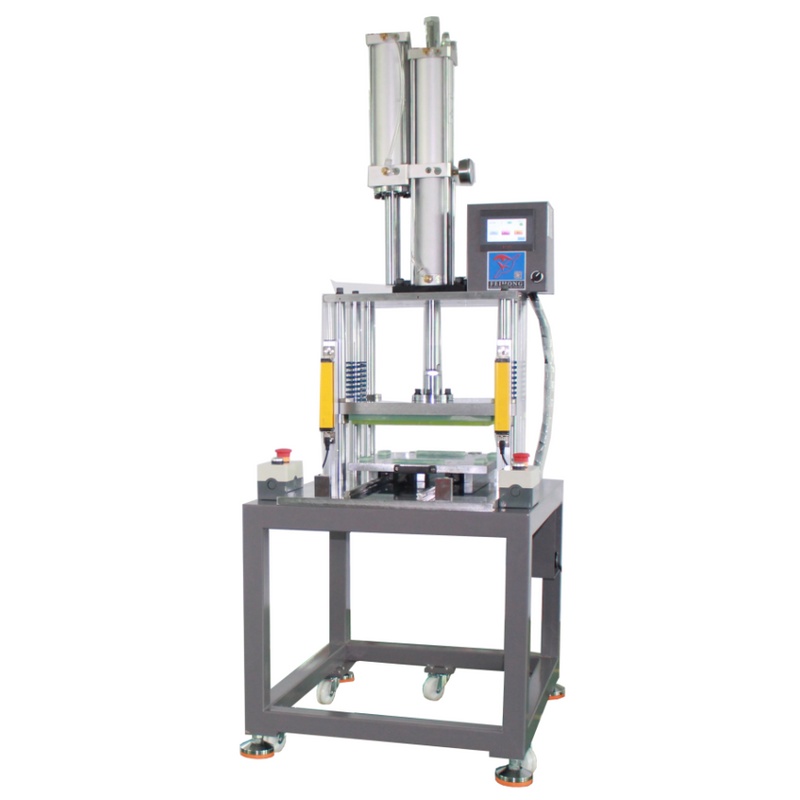

Disposable Vape Press Assembly Machine
The Disposable Vape Press Assembly Machine is designed for the efficient assembly and press-fitting of disposable electronic cigarettes. Equipped with an integrated PLC control system and touchscreen interface, the machine delivers stable performance, easy operation, and high production efficiency for vape manufacturing facilities.
The machine can press and assemble up to 100 products per cycle (depending on fixture design), making it an ideal solution for medium- and high-volume production environments. By simply changing the fixture, manufacturers can quickly switch between different disposable vape models, improving production flexibility and reducing downtime.
To ensure operator safety, the equipment is equipped with a safety light curtain system that automatically protects personnel during machine operation. Combined with pneumatic power and precision press control, the machine achieves consistent assembly quality while minimizing labor costs.
This vape assembly equipment is widely used by disposable vape manufacturers, OEM/ODM factories, and electronic cigarette production lines for cartridge, battery, and housing press-fit assembly processes.
Key Features
Presses up to 100 vape products per cycle (fixture dependent)
Compatible with multiple disposable vape models through fixture replacement
High assembly efficiency and reduced labor requirements
Integrated PLC control system with 4.3-inch touchscreen
Pneumatic-driven operation for stable and reliable pressing
Safety light curtain protection for enhanced operator safety
Easy operation and quick product changeover
Suitable for mass production and OEM manufacturing environments
Technical Specifications
Machine Size: 950 × 950 × 1830 mm (W × D × H)
Power Supply: AC220V ±10%, 50Hz
Air Supply Pressure: 0.4–0.8 MPa
Control System: Integrated PLC + 4.3-inch Touchscreen
Operating Temperature: 0–60°C
Net Weight: To Be Confirmed
Production Capacity: Up to 100 pieces per cycle (depending on fixture)
FAQ
Q1: What products can this press assembly machine be used for?
The machine is primarily designed for disposable vape assembly, including battery, cartridge, housing, and other press-fit components. Custom fixtures can be developed for different product designs.
Q2: How many products can be assembled at one time?
The machine can process up to 100 pieces per cycle, depending on the fixture configuration and product dimensions.
Q3: Can the machine handle different vape models?
Yes. The equipment is designed with interchangeable fixtures, allowing manufacturers to switch between different disposable vape products quickly and efficiently.
Q4: Is the machine fully automatic?
The machine operates with PLC-controlled press assembly and pneumatic actuation. Depending on production requirements, loading and unloading can be manual or integrated into a semi-automatic production process.
Q5: What safety features are included?
The machine is equipped with a safety light curtain that helps prevent accidental operation and enhances workplace safety during production.
Q6: What type of control system does the machine use?
The equipment uses an integrated PLC control system with a 4.3-inch touchscreen interface, allowing operators to easily manage production parameters and machine functions.
Q7: What air pressure is required for operation?
The machine requires a compressed air supply between 0.4 MPa and 0.8 MPa for stable operation.
Q8: Is customization available?
Yes. Custom fixtures, tooling, and machine configurations can be designed according to specific disposable vape products and production requirements.
Applications
Disposable Vape Manufacturing
E-Cigarette OEM/ODM Production
Vape Cartridge Assembly
Battery and Housing Press Fitting
Electronic Cigarette Production Lines
Vape Factory Automation Upgrades
Mass Production Assembly Processes
