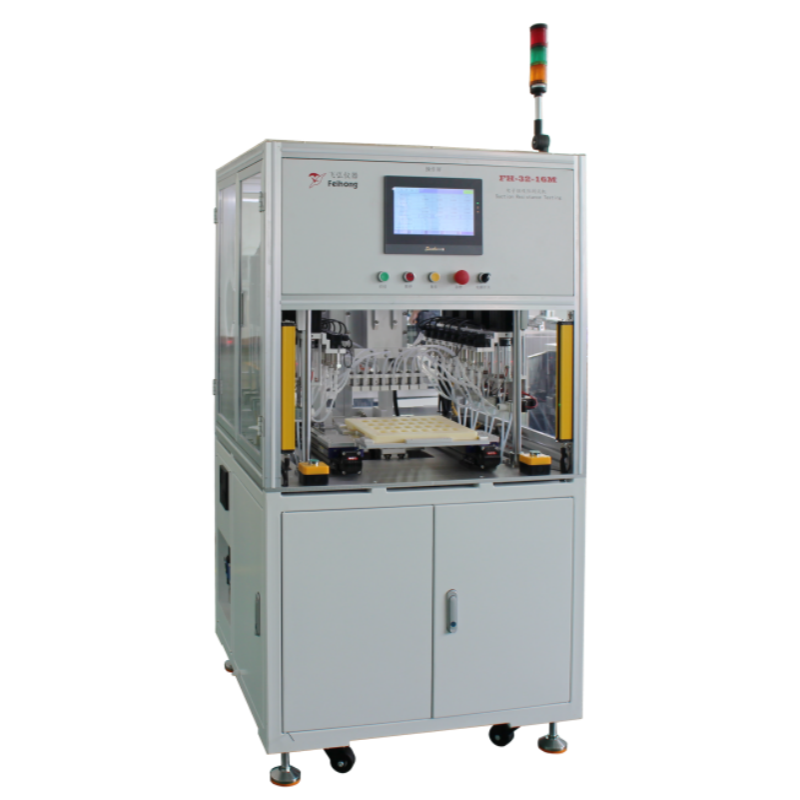

10-Channel Matrix Vape Draw Resistance Testing Machine
The 10-Channel Matrix Vape Testing Machine is designed for high-efficiency quality inspection of disposable vapes, vape pods, and electronic cigarette products. Combining draw resistance testing, aerosol detection, LED light inspection, and e-liquid collection in a single system, it helps manufacturers ensure product consistency before shipment.
The machine uses a pneumatic piston-driven inhalation mechanism to simulate real-world puffing conditions. By programming puff duration, puff volume, and puff count, the system evaluates airflow resistance, vapor production, and LED activation to automatically determine whether a device meets quality standards.
Featuring a PLC control system with touchscreen operation, the machine supports manual loading and unloading while delivering fast and reliable testing performance for production lines and quality control departments.
Key Features & Benefits
10-Channel Simultaneous Testing for increased production efficiency.
Automatic Draw Resistance Measurement to ensure airflow consistency.
Aerosol Detection Function to verify vapor generation performance.
LED Light Inspection System to confirm proper device activation.
Built-in E-Liquid Collection System for cleaner operation and maintenance.
Pneumatic Piston Puff Simulation accurately reproduces user inhalation behavior.
Programmable Puff Parameters including puff duration, puff volume, and puff count.
Automatic Pass/Fail Judgment based on customized testing criteria.
PLC + Touchscreen Interface for simple setup and operation.
Designed for High-Volume Vape Manufacturing Quality Control.
Technical Specifications
Item | Specification |
Testing Channels | 10 Channels |
Production Capacity | 3,000 PCS/Hour |
Machine Dimensions | 900 × 900 × 1750 mm (L × W × H) |
Power Supply | AC 220V, 50/60Hz |
Air Pressure | 0.4 – 0.6 MPa |
Equipment Failure Rate | ≤ 5% |
Repeatability Accuracy | ±0.05 mm |
Control System | PLC + Touchscreen |
Loading Method | Manual Loading & Unloading |
Test Functions | Draw Resistance, Aerosol Detection, LED Inspection, E-Liquid Collection |
FAQ
Q1: What is the purpose of a 10-Channel Matrix Vape Testing Machine?
The machine is used to test key performance indicators of vape products, including draw resistance, vapor generation, LED activation, and overall device functionality. It helps manufacturers identify defective products before they reach the market.
Q2: What types of vape products can be tested?
The system is suitable for disposable vapes, pod systems, rechargeable e-cigarettes, CBD vape devices, and other electronic smoking products.
The machine uses a pneumatic piston system to simulate human inhalation. During each puff cycle, airflow resistance is measured and compared against preset quality standards.
Q4: Can the machine verify vapor production?
Yes. The integrated aerosol detection function checks whether the device produces vapor during testing, helping to identify defective heating systems or airflow issues.
Q5: Does the machine inspect LED functionality?
Yes. The optical sensing system detects whether the vape device's LED indicator activates correctly during simulated inhalation.
Q6: What is the production capacity of the machine?
The 10-channel configuration can achieve a throughput of up to 3,000 pieces per hour, making it suitable for large-scale production environments.
Q7: Why is draw resistance testing important in vape manufacturing?
Consistent draw resistance directly affects the user experience. Testing ensures uniform airflow performance, improves product quality, and reduces customer complaints.
Q8: Is the machine suitable for factory quality control applications?
Absolutely. The 10-Channel Matrix Vape Testing Machine is designed for production-line inspection, incoming quality control, final product testing, and reliability verification in vape manufacturing facilities.
