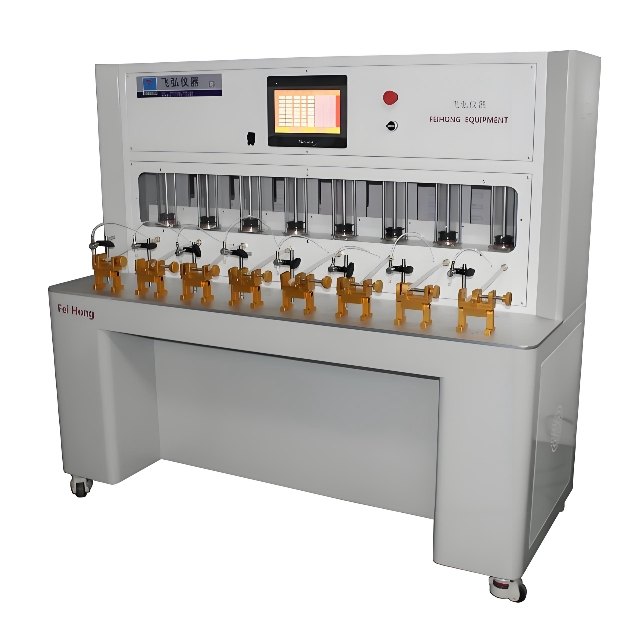

6 Station Suction Machine

This machine is used for testing e-cigarettes, it use cylinder plunger to inhale, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not, it is suitable for multiple specifications of e-cigarettes.

Availability:

Quantity:



Inquire Add to Basket

6 Station Suction Machine Draw Resistance Tester

Product Description

Product Overview

This machine is used for testing e-cigarettes, it use cylinder plunger to inhale, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not, it is suitable for multiple specifications of e-cigarettes.

Specification Parameters

Station	8 Station
Inhale mode	Cylinder plunger
Smoking volume	1-300ml (accuracy range ±1%)
Interval of each puff	1-999 seconds
Puff number	1-99999
Motor	Step motor (Model 60,1.8 N/M)+ PLC
Cylinder pushing mechanism	Ball screw
Touch screen	The number of test puff can be set, and the test will automatically stop when the set number is reached.
Button	With fixture and fire button
Display and control mode	Touch screen+ PLC+self-programming
Smoking tube	3 Specification: 7, 9, 11mm
Power	AC220V，50Hz，about 1kw
Product dimension	16007501440mm
