Product Overview

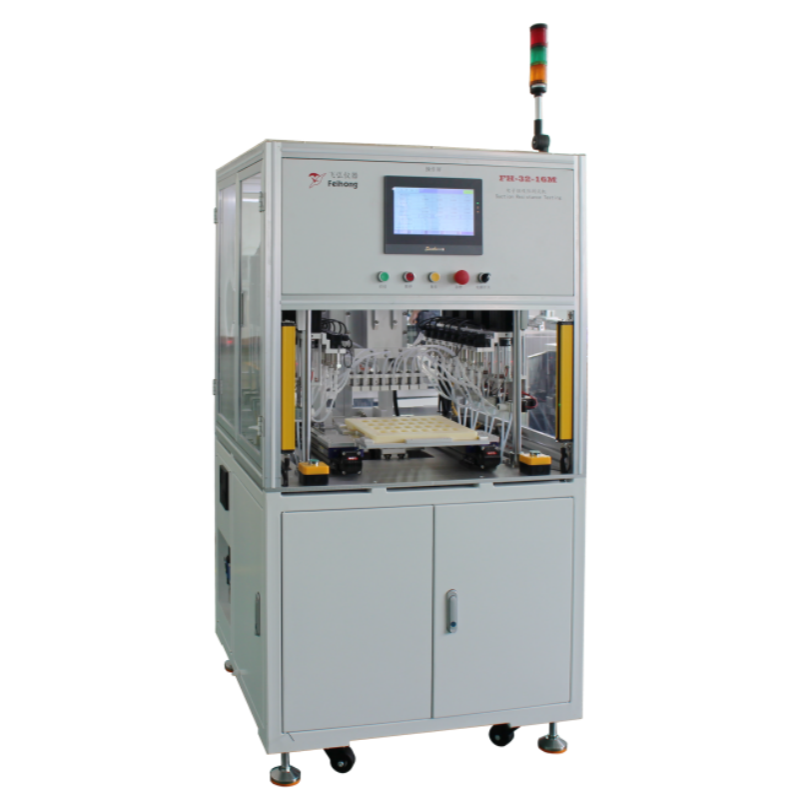

16-Channel Matrix Vape Draw Resistance Testing Machine
The 16-Channel Matrix Vape Testing Machine is designed for high-volume quality control testing of disposable vapes, vape pods, and electronic cigarettes. The system integrates draw resistance testing, aerosol detection, LED light inspection, and e-liquid collection into a single automated platform.
Using a pneumatic piston-driven inhalation system, the machine simulates real-world puffing behavior by controlling puff duration, puff volume, and puff count. During testing, the system automatically evaluates airflow resistance, vapor generation, and device light activation to determine whether each product meets quality standards.
The machine is controlled through a PLC and touchscreen interface, with manual loading and unloading of products. Its 16-channel matrix design enables simultaneous testing of multiple devices, making it ideal for mass-production quality inspection.
Key Features & Benefits
16-Channel Simultaneous Testing for high-throughput production environments.
Integrated Draw Resistance Testing to verify airflow consistency and product quality.
Aerosol Detection System to confirm proper vapor generation.
LED Light Inspection Function to verify device activation during puff testing.
E-Liquid Collection Design helps maintain a clean testing environment.
Pneumatic Piston Puff Simulation accurately replicates real user inhalation behavior.
Programmable Puff Parameters including puff duration, puff volume, and puff count.
Automatic Pass/Fail Evaluation based on predefined testing criteria.
PLC + Touchscreen Control System for easy operation and monitoring.
Suitable for Disposable Vape and Pod Production Lines.
Technical Specifications
Item | Specification |
Testing Channels | 16 Channels |
Production Capacity | ≥ 4,000 PCS/Hour |
Machine Dimensions | 900 × 920 × 1770 mm (L × W × H) |
Air Pressure | 0.4 – 0.6 MPa |
Equipment Failure Rate | ≤ 5% |
Repeatability Accuracy | ±0.05 mm |
Control System | PLC + Touchscreen |
Loading Method | Manual Loading & Unloading |
Test Functions | Draw Resistance, Aerosol Detection, LED Inspection, E-Liquid Collection |
FAQ
Q1: What is a 16-Channel Matrix Vape Testing Machine?
A 16-Channel Matrix Vape Testing Machine is an automated quality control system used to simultaneously test multiple vape devices for draw resistance, aerosol production, LED functionality, and overall performance.
Q2: What products can be tested with this machine?
The machine is suitable for disposable vapes, pod systems, rechargeable e-cigarettes, CBD vape devices, and other inhalation-based electronic smoking products.
Q3: What is draw resistance testing?
Draw resistance testing measures the airflow resistance experienced when a user inhales from a vape device. Consistent draw resistance is essential for maintaining product quality and user satisfaction.
Q4: How many products can the machine test at one time?
The machine features a 16-channel matrix testing system, allowing multiple devices to be tested simultaneously and achieving production capacities of over 4,000 units per hour.
Q5: Can the machine detect whether a vape device produces vapor?
Yes. The integrated aerosol detection system verifies whether vapor is generated during the puff test, helping identify defective products before shipment.
Q6: Does the machine check if the LED indicator works properly?
Yes. The built-in optical inspection function detects whether the device's LED light activates correctly during inhalation.
Q7: Why is aerosol and LED testing important for vape quality control?
Aerosol generation and LED activation are key indicators of device functionality. Testing these parameters helps manufacturers ensure product consistency, reduce customer complaints, and improve product reliability.
Q8: Is the machine suitable for mass production environments?
Yes. With a throughput of over 4,000 pieces per hour, the 16-Channel Matrix Vape Testing Machine is specifically designed for high-volume vape manufacturing and production line quality control.
