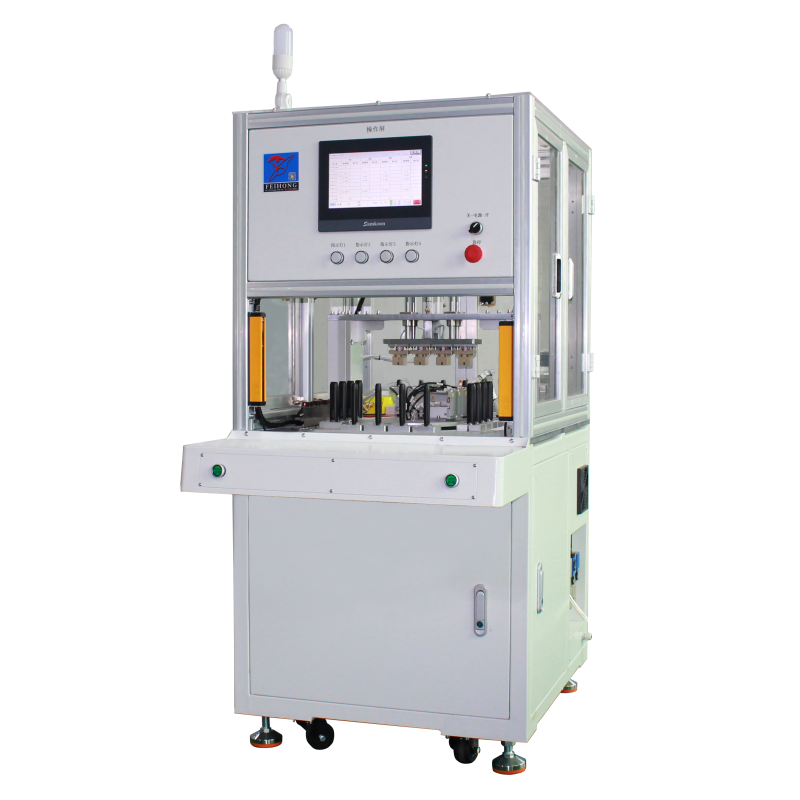

4-in-1 Electronic Vaporizer Testing Machine
The 4-in-1 Vape Testing Machine is a comprehensive quality control solution designed for disposable vapes, rechargeable e-cigarettes, vape pods, and other electronic atomizer products. The system integrates four critical testing functions into a single workstation, including draw resistance testing, charging current testing, LED light inspection, output voltage testing, and short-circuit protection verification.
Using a PLC touchscreen control system and built-in safety light curtain, the machine provides safe, reliable, and efficient operation. Sensors automatically detect product presence, while programmable puff duration, puff volume, and puff count settings simulate real-world usage conditions to evaluate product performance.
Each testing station is equipped with a Type-C charging port, enabling charging current and charging function verification during the testing process. This makes the machine an ideal solution for production-line quality control and final product inspection.
Key Features & Benefits
4-in-1 Integrated Testing Platform reduces equipment investment and floor space requirements.
Draw Resistance Testing ensures consistent airflow performance and user experience.
Output Voltage Testing supports:
Charging Current Testing verifies charging performance and battery functionality.
LED Light Inspection checks indicator light operation during charging and activation.
Short-Circuit Protection Testing validates built-in safety protection systems.
Type-C Charging Interface at Each Station for charging function verification.
PLC + Touchscreen Control System for intuitive operation and parameter setting.
Safety Light Curtain Protection improves operator safety during production.
Automatic Product Detection Sensors increase testing reliability and efficiency.
Technical Specifications
Item | Specification |
Production Capacity | 1,500 PCS |
Air Pressure | 0.4 – 0.6 MPa |
Equipment Failure Rate | ≤ 5% |
Repeatability Accuracy | ±0.05 mm |
Machine Dimensions | 1100 × 750 × 1810 mm (L × W × H) |
Power Supply | AC 220V, 50/60Hz |
Control System | PLC + Touchscreen |
Charging Port | Type-C |
Test Functions | Draw Resistance, Charging Current, LED Inspection, Output Voltage, Short-Circuit Protection |
FAQ
Q1: What is a 4-in-1 Vape Testing Machine?
A 4-in-1 Vape Testing Machine is a multifunctional quality control system that combines draw resistance testing, charging current testing, LED inspection, output voltage measurement, and short-circuit protection verification in one machine.
Q2: What types of vape products can be tested?
The machine is suitable for disposable vapes, rechargeable e-cigarettes, pod systems, vape pens, CBD vape devices, and other electronic atomizer products.
Yes. Each station is equipped with a Type-C charging port, allowing charging current measurement and charging functionality verification during testing.
Q4: What voltage parameters can be measured?
The machine can test:
These measurements help verify battery and circuit performance.
Q5: Why is draw resistance testing important?
Draw resistance directly affects vaping comfort and product consistency. The machine simulates inhalation conditions to ensure each device meets airflow specifications before shipment.
Q6: Can the machine verify LED functionality?
Yes. The integrated LED inspection system detects whether indicator lights operate correctly during charging and device activation.
Q7: Does the machine test short-circuit protection?
Yes. The system verifies whether the device's short-circuit protection circuit functions properly, helping ensure compliance with safety requirements.
Q8: Is this machine suitable for production-line quality control?
Absolutely. The machine is specifically designed for manufacturing environments and final quality inspection, helping improve product reliability while reducing defective products reaching customers.
Product Highlights
4 Critical Tests in One Machine
Draw Resistance Testing
Charging Current & Charging Function Verification
Open-Circuit & Load Voltage Testing
Short-Circuit Protection Verification
Type-C Charging Interface
PLC Touchscreen Control
Ideal for Disposable & Rechargeable Vape Quality Control
