What is an assembly machine?

The shift from manual assembly or localized semi-automated workstations to fully integrated automation represents one of the largest capital expenditures a manufacturing facility can undertake. Scaling production volumes while maintaining strict quality tolerances requires navigating highly complex equipment specifications, hidden integration costs, and extended procurement timelines. Manufacturers frequently struggle with workflow bottlenecks when they select improper equipment architectures for their specific product mix. Misaligned system capabilities can lead to compounded scrap rates, delayed product launches, and missed return on investment targets. This comprehensive guide details the functional architectures of Assembly Machines, defining exactly how to match specific mechanical designs with production requirements. We evaluate the variables that influence Total Cost of Ownership (TCO) and outline proven, data-driven strategies to mitigate deployment risks from the initial concept phase through final site integration.

Key Takeaways

• Architecture Dictates Throughput: The choice between rotary, linear, and robotic assembly systems directly determines limits on cycle times, footprint, and product-mix flexibility.

• Integration Over Isolation: High-performing assembly machines require seamless synchronization between parts feeding, fastening, and in-line quality inspection subsystems to prevent compounded scrap rates.

• Data and Connectivity are Non-Negotiable: Modern equipment must feature robust Industry 4.0 integration, allowing SCADA and MES systems to track cycle times, trace defects, and predict maintenance needs.

• TCO Extends Beyond Initial CapEx: True cost evaluation must account for tooling changeover times, proprietary software licenses, preventative maintenance schedules, and localized utility consumption.

• Specification Clarity (URS) is Critical: Successful deployment relies on a rigorous User Requirement Specification document, explicitly defining Factory Acceptance Testing (FAT) criteria before a build begins.

Defining Assembly Machines in Modern Manufacturing Operations

Functional Baseline

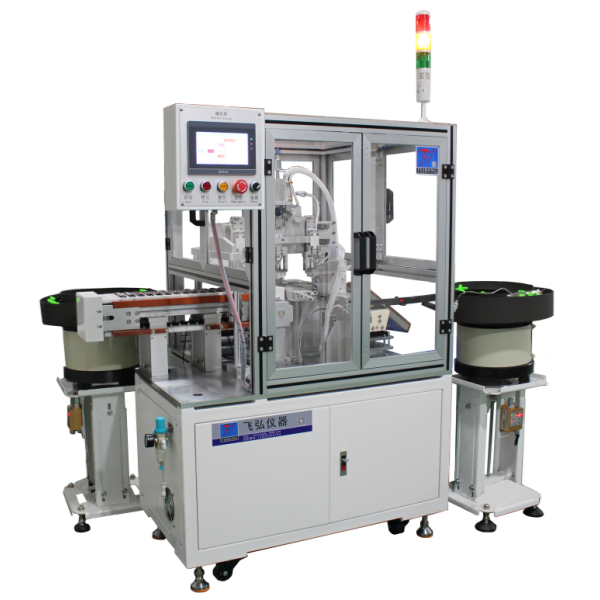

Engineers define automated assembly machines as highly synchronized mechanical systems built to sequentially combine discrete components into a finished product or sub-assembly. They execute these tasks continuously without requiring manual human intervention. Hard automation systems rely on fixed, cam-driven mechanical motions to achieve extreme speed, synchronizing every tooling station via a central driveshaft. Flexible automation utilizes programmable logic controllers (PLCs), servo motors, and multi-axis robotic arms to allow for software-driven motion profiles. Both configurations aim to eliminate the variability inherent in human labor. Modern production lines treat these machines as the central nervous system of the factory floor, demanding deterministic control where actions occur in exact millisecond intervals.

Scope of Operation

Facility planners must differentiate primary assembly tasks from secondary supporting functions when designing a system. Primary operations encompass the actual joining of materials. These include servo-controlled pressing, ultrasonic plastic welding, automated screwdriving with torque feedback, and snap-fitting. These actions permanently or semi-permanently join distinct parts into a rigid structure. Secondary functions support the core process. These encompass bulk raw material handling, part sorting, orientation, leak testing, electrical continuity testing, and final packaging. A well-designed system synchronizes these secondary operations to ensure the primary joining stations never starve for parts. If material handling lags behind the fastening speed, overall throughput drops significantly, and the expensive joining technology sits idle.

Success Criteria

The primary goal of deploying automated systems extends beyond simple mechanical speed. Facilities deploy them to achieve highly predictable cycle times, ensuring stable production planning. Repeatable precision is mandatory, guaranteeing every assembled unit meets identical structural tolerances regardless of the production shift. Verifiable quality at scale requires integrated, non-destructive inspection stations placed immediately after critical joining steps. Furthermore, modern machines must capture real-time production data through edge computing devices. This data proves compliance with strict industry standards and highlights microscopic efficiency bottlenecks. Manufacturers measure ultimate success through Overall Equipment Effectiveness (OEE), tracking Availability, Performance, and Quality metrics to minimize unplanned downtime and maximize good part yield.

Key Industry Applications and Sector-Specific Requirements

Medical Device and Pharmaceutical Assembly

Medical manufacturing introduces stringent regulatory and environmental hurdles. Assembly systems require strict adherence to ISO cleanroom standards, typically operating within ISO Class 7 or Class 8 environments. Machine designs must eliminate particle generation; engineers achieve this by utilizing enclosed pneumatics, sealed servo motors, and extensive 316L stainless steel construction. Builders must follow rigid FDA validation protocols, executing formal Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) phases. Furthermore, equipment software must ensure 21 CFR Part 11 compliance. This guarantees unalterable electronic records, password-protected parameter changes, and complete data traceability for every assembled unit. Common implementations include continuous motion catheter assembly lines, auto-injector pen manufacturing cells, and high-speed diagnostic test kit packaging systems.

Automotive and EV Battery Manufacturing

Automotive part assembly demands extreme mechanical durability and the capacity to handle significant torque. Systems must safely manage heavy payloads using heavy-duty gantry robots or industrial articulated arms. High-torque fastening stations require continuous force-distance validation to prevent structural failures in critical components like steering columns or brake calipers. These machines operate under gruelling 24/7 shifts, meaning wear parts must be easily accessible for rapid, tool-less replacement. Electric Vehicle (EV) battery manufacturing adds immense layers of complexity. Systems handle highly sensitive, volatile lithium-ion cells requiring precise environmental controls and fire suppression integration. Common automotive implementations include powertrain sub-assembly lines, EV battery module stacking equipment utilizing ultrasonic wire bonding, and automated wire harness integration cells.

Electronics and Semiconductor Production

Electronics assembly prioritizes extreme precision, low payloads, and rapid placement over heavy mechanical lifting. Components require micron-level placement accuracy. Machine bases often use heavy granite or engineered composite materials to dampen factory floor vibrations that could misalign tiny components. Electrostatic Discharge (ESD) protection is a strict, non-negotiable requirement across the entire machine architecture. Any static buildup generated by moving parts can instantly destroy sensitive microchips. End-of-arm tooling must utilize vacuum generation to handle fragile substrates gently. High-resolution machine vision systems guide robotic arms for precise alignment before any joining occurs. Common implementations include printed circuit board (PCB) connector insertion machines, smartphone chassis adhesive dispensing cells, and delicate micro-optics alignment stations.

Core Architectures of Industrial Assembly Machines

Rotary Indexing Dial Machines

Rotary systems utilize a compact circular layout. Component nests sit securely on a heavy steel or aluminum dial. The dial indexes components through sequential, stationary workstations simultaneously. Precision cam-driven indexers, such as Geneva mechanisms, provide exact positioning and controlled dwell times. These machines represent an excellent fit for high-volume, low-mix production environments. They offer minimal floor footprints and exceptionally rapid cycle times, often producing hundreds of parts per minute. However, rotary systems inherently lack flexibility. They cannot accommodate significant product design changes or variable part sizes easily. The physical diameter of the dial strictly limits the number of available workstations, usually capping out at 16 to 24 stations. Expanding a rotary system's capacity usually requires purchasing an entirely new machine frame.

Linear Transfer Systems (Palletized and Non-Palletized)

Linear transfer systems move components in a straight line, an L-shape, or a continuous rectangular loop. Palletized versions carry parts on precision-machined fixtures riding on dual-belt conveyors. Non-palletized versions might use walking-beam mechanisms to advance parts directly from station to station. Modern linear systems increasingly rely on magnetic levitation (mag-lev) tracks. Mag-lev systems provide independent, asynchronous shuttle control, allowing pallets to move backward, group together, or bypass specific stations based on real-time software commands. These linear architectures are the best fit for highly complex assemblies requiring dozens of sequential steps. They easily integrate manual rework stations alongside fully automated robotic cells. The primary limitation is required floor space. Linear systems demand large physical footprints and require long return loops to cycle empty pallets back to the start of the line.

Robotic Assembly Cells

Robotic cells utilize articulated 6-axis arms, SCARA (Selective Compliance Assembly Robot Arm) units, or high-speed Delta robots. These robots dynamically pick, orient, and join components within a safety-interlocked enclosure. Robotic systems excel in high-mix, low-to-medium volume environments. They offer maximum production flexibility and allow for rapid redeployment. Facilities can reprogram the robots for entirely different products using offline simulation software. They support frequent shift changeovers with minimal mechanical adjustments, relying instead on automatic tool changers. However, robotic cells generally exhibit slower overall cycle times compared to synchronous, cam-driven hard automation. Operating and maintaining them requires specialized programming expertise, kinematics knowledge, and advanced safety guarding infrastructure to protect human operators.

Continuous Motion Assembly Machines

Continuous motion machines operate on a distinct principle: the components never stop moving during the assembly process. Parts are joined, tested, and verified while in continuous, uninterrupted transit. They utilize highly complex, rotating drum-style tooling that travels alongside the components, driven by a single, massive central motor and a network of mechanical cams. This architecture fits ultra-high-speed production needs perfectly, easily exceeding 1,000 parts per minute. The consumer packaged goods and medical disposable industries rely heavily on this technology, as halting motion to assemble a part causes unacceptable throughput drops. The limitations are significant. Continuous motion demands the highest initial capital expenditure (CapEx) of any architecture. Mechanical tooling complexity is extreme, making maintenance highly specialized. Furthermore, the system has zero tolerance for raw component dimensional variation; a single oversized part can jam and damage the high-speed cams.

Architecture Comparison Summary

Key Sub-Systems and Capability Evaluation

Parts Feeding and Material Handling Mechanisms

An assembly system operates strictly at the speed of its slowest feeding station. Effectively orienting bulk parts requires robust feeding mechanisms.

1. Vibratory Bowl Feeders: The traditional industry standard for sorting bulk fasteners, pins, and small plastic parts. They utilize custom-tooled polyurethane or stainless steel tracks to drive and orient components upward through continuous electromagnetic vibration.

2. Step Feeders: Provide quieter operation and handle heavier, easily tangled, or abrasive parts more effectively by using pneumatically driven elevator plates to lift parts from a bulk bin.

3. Flexible Robotic Feeding: Often called bin picking or flexible bowl feeding, this integrates 3D telecentric cameras to locate random parts sitting on a backlit vibrating table. A Delta or SCARA robot then picks the properly oriented parts.

Engineers must evaluate the risk of system jams caused by out-of-tolerance raw materials. Pre-sorting bulk parts drastically reduces this risk. Integrating Automated Guided Vehicles (AGVs) or Autonomous Mobile Robots (AMRs) into the factory layout streamlines raw material logistics. These mobile robots deliver standardized bins directly to the machine's infeed hoppers, minimizing dangerous forklift traffic and reducing localized labor overhead.

Joining and Fastening Technologies

Choosing the correct fastening technology impacts structural integrity directly. Sub-systems must match the specific material properties of the components.

1. Servo-Driven Presses: Replace traditional pneumatic or hydraulic cylinders. They provide exact, micron-level control over pressing force and travel distance. The PLC logs detailed force-distance curves for every single pressing cycle, proving structural integrity.

2. Ultrasonic Welding: Uses high-frequency acoustic vibrations directed into plastic components to generate localized friction heat. This melts the plastics together cleanly without introducing adhesives or external heat sources.

3. Laser Welding: Offers ultra-precise, contactless joining for metals and optically clear plastics. It delivers concentrated thermal energy, minimizing the heat-affected zone and preventing distortion in delicate assemblies.

4. Automated Screwdriving: Utilizes vacuum tubes or pneumatic blow-feed mechanisms to deliver screws rapidly to a robotic driver. Modern systems utilize DC electric drivers with built-in torque transducers to measure final seating torque and fastening angle simultaneously.

Discussing exact torque-monitoring and force-feedback capabilities with your equipment builder ensures real-time validation of assembly integrity, preventing loose joints and eliminating costly field recalls.

In-Line Vision and Quality Inspection

Relying solely on human end-of-line testing creates massive operational waste and allows defective batches to slip through. In-line machine vision integration operates as the primary defense against quality escapes. Industrial cameras perform rapid presence and absence checks instantly, confirming a microscopic O-ring or spring was placed correctly before the system closes the housing. Dimensional gauging uses laser profilers to verify critical part tolerances down to the millimeter. Defect detection software utilizes edge-detection algorithms to spot surface scratches, flash, or misalignments immediately after critical assembly steps. The system utilizes closed-loop feedback to communicate these failures directly to the central PLC. The machine then digitally flags the pallet and bypasses the defective unit in all subsequent assembly stations. This programmable logic prevents the system from performing expensive, value-add operations on already ruined sub-assemblies. Finally, the defective unit automatically diverts into a locked reject bin, requiring a supervisor key to empty.

Data Connectivity and Industry 4.0 Integration

Modern manufacturing requires total data transparency. Facility engineers must assess the capability of the machine's PLC to interface with the wider corporate network. The equipment should connect smoothly to Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) platforms. Standardized communication protocols, specifically OPC UA and MQTT, facilitate this data exchange securely. Implementing Supervisory Control and Data Acquisition (SCADA) monitoring provides immense long-term value. It enables accurate, unbiased Overall Equipment Effectiveness (OEE) tracking. Rather than relying on fixed calendar dates, the system issues predictive maintenance alerts based on actual motor torque load fluctuations and pneumatic cylinder actuation counts. This connectivity guarantees component-level traceability, ensuring quality control teams can track every finished product back to a specific batch of raw materials and the exact hour it was assembled.

Safety Infrastructure and Regulatory Compliance

Operator safety supersedes raw production speed under all circumstances. Essential safety integrations start with dedicated, redundant safety PLCs. These separate, specialized controllers handle only emergency stop circuits, guard lock monitors, and light curtains, guaranteeing a safe stop even if the primary motion PLC fails. Light curtains create invisible infrared safety barriers around manual loading zones, halting motion instantly if a hand breaks the beam. Laser area scanners monitor the floor space surrounding fenceless robotic cells, progressively slowing robot speeds if a human approaches the active zone. Physical interlocked polycarbonate guarding prevents access to all hazardous moving mechanisms during operation. Procurement teams must ensure all machine designs account for strict regional safety and ergonomic standards. Compliance with OSHA regulations in the United States, CE marking directives in Europe, and ISO 13849-1 functional safety performance levels (PLr) remains legally mandatory.

Evaluating Total Cost of Ownership (TCO) and ROI Drivers

CapEx vs. Throughput Value

Initial capital expenditure (CapEx) rarely tells the complete financial story of an automated system. Financial teams need a rigid framework for calculating true Return on Investment (ROI). Base initial calculations on direct cycle time reduction. An automated system that cuts cycle times by just three seconds translates to massive annual production volume increases when spread across multiple shifts. Calculate the financial value of labor reallocation; moving five human operators from tedious manual assembly to higher-value quality control or machine programming roles saves substantial direct labor costs over a five-year period. Factor in the expected reduction in scrap and rework. Automated systems enforce strict, unyielding mechanical tolerances, drastically lowering the cost of wasted raw materials, manual rework labor, and potential warranty claims stemming from human error.

Changeover Times, Tooling Costs, and Modularity

Unplanned and planned downtime during product changeovers rapidly drains operational profitability. Process engineers must assess the hidden costs associated with physically swapping tooling nests between production batches. Implementing Single-Minute Exchange of Die (SMED) methodologies directly into the machine's mechanical design is essential. Incorporating quick-release pneumatic fixtures, RFID-tagged tooling for automatic identification, and automated software recipe downloads reduces physical changeover times from multiple hours to a few minutes. Evaluate the financial trade-off between dedicated hard tooling and flexible robotic automation. Hard automation tooling costs less to manufacture initially but serves only one specific product shape. Robotic end-of-arm tooling requires a higher upfront investment but adapts easily to entirely new product sizes through simple software coordinate adjustments. Furthermore, utilizing standardized, modular machine bases provides long-term financial benefits. Modular aluminum extrusion or steel bases can be stripped and retooled efficiently for future product generations, extending the useful lifespan of the capital asset by decades.

Maintenance, Spare Parts, and Lifecycle Support

Ongoing maintenance expenses compound significantly over a decade of continuous machine operation. Factor the cost of proprietary replacement parts into the initial TCO calculation. Avoid equipment builders who attempt to lock facilities into purchasing only their highly expensive, custom-machined wear parts. Utilizing standardized, off-the-shelf commercial components for pneumatics, sensors, and servos keeps maintenance budgets predictable and lowers inventory costs. Review the builder's required preventative maintenance intervals during the bidding phase. Frequent, labor-intensive lubrication requirements actively reduce available, profitable production hours. Finally, assess the availability of local OEM service technicians and technical support engineers. If the machine builder is located overseas and lacks an established local support network, a minor software glitch or sensor failure could completely halt the production line for days while the facility waits for a specialized technician to clear customs and arrive on site.

Implementation Risks and Procurement Milestones

Developing the User Requirement Specification (URS)

Submitting a vague equipment request to a machine builder leads directly to disastrous deployments and endless cost overruns. Engineering teams must outline all required technical details in a formal, highly detailed User Requirement Specification (URS) document before requesting quotes. The URS serves as the absolute contractual foundation between the manufacturing facility and the automation builder. Define expected cycle times, payload capacities, and maximum allowable defect rates mathematically. Document strict physical floor space constraints, weight limits, and ceiling height restrictions. Detail all required facility utility connections, calling out specific electrical voltages, transformer requirements, and exact compressed air volumes (CFM) necessary to run the equipment. Explicitly list software integration standards, preferred PLC brands (e.g., Allen-Bradley, Siemens), HMI layout preferences, and corporate network security protocols. The tighter and more specific the URS, the lower the risk of expensive scope creep during the mechanical engineering phase.

FAT and SAT Protocols

Rigorous acceptance testing validates the automated equipment before final payment transfers. Define strict, non-negotiable criteria for the Factory Acceptance Testing (FAT) phase directly within the URS. The FAT occurs at the machine builder's facility prior to crating and shipping. It involves dry-cycling the machine to verify basic kinematics, safety circuit functionality, and baseline software logic. More importantly, it requires extensive wet-cycling with thousands of actual, in-tolerance production parts. The builder must prove the system hits the contracted throughput targets and scrap rates under simulated, continuous factory conditions. The Site Acceptance Testing (SAT) occurs at the buyer's facility after delivery and reassembly. SAT verifies the final integration into the existing production line. This phase includes rigorous mechanical and software interface testing with existing upstream conveyors and downstream packaging equipment to ensure seamless product handoffs without causing line backups.

Adoption Hurdles and Operator Training

A perfectly engineered and beautifully built machine fails entirely if the facility operators cannot run or maintain it. Management must address the internal skills gap risk early in the procurement process. Emphasize the absolute necessity for comprehensive OEM training programs. Internal maintenance technicians require deep-dive troubleshooting sessions, focusing on servo drive recovery, pneumatics schematic reading, and replacing critical wear parts. Process and control engineers need extensive training on software parameter adjustments, vision system recalibration, and PLC logic structures. Machine operators need clear, localized Human-Machine Interface (HMI) screens displaying straightforward diagnostic messages alongside rigid standard operating procedures. Investing heavily in thorough training during the SAT phase ensures long-term OEE stability and prevents operators from intentionally bypassing critical safety light curtains or quality inspection cameras to hit arbitrary production quotas.

Conclusion

The optimal assembly machine architecture is rarely the most technologically complex option available. Instead, the correct selection perfectly aligns with a facility’s specific daily production volume, expected product variation, and the internal technical competencies of the maintenance staff. Over-engineering a solution wastes capital, while under-engineering creates permanent production bottlenecks. The following steps outline how to proceed with automation procurement:

1. Assess current manual scrap rates, ergonomic injury reports, and direct labor costs to establish a mathematically sound, data-driven automation budget.

2. Review all existing product and component designs for strict Design for Assembly (DFA) compliance, ensuring parts feature the necessary chamfers and symmetries for automated vibratory feeding.

3. Engage an independent automation consultant or internal manufacturing engineering team to draft a highly rigid User Requirement Specification (URS) document before soliciting any bids.

4. Audit the existing facility utility infrastructure to confirm the building provides the necessary stabilized electrical power, clean compressed air, and network bandwidth to support the new automated line.

5. Demand transparent, data-backed cycle time studies and 3D kinematic simulations from the short-listed machine builders before signing final procurement contracts.

FAQ

Q: What is the difference between semi-automated and fully automated assembly machines?

A: Semi-automated machines require a human operator to load raw components, manually initiate the cycle, or unload the finished product. Fully automated systems utilize mechanical conveyors, robotic vision feeders, and bulk hoppers to run continuously without human intervention. They rely entirely on programmable logic controllers (PLCs) to manage the entire workflow, synchronize individual stations, and automatically eject finished assemblies or reject defective parts into designated bins.

Q: How do you calculate the true cycle time and throughput of an assembly system?

A: True cycle time measures the exact duration required to complete one full assembly operation, starting from part loading to final ejection. You calculate expected throughput by dividing total available production time by the true cycle time, and then subtracting expected downtime for preventative maintenance, part reloading, and planned tooling changeovers. Factoring in OEE variables gives you the actual yield rather than theoretical maximums.

Q: What role does Industry 4.0 data play in modern assembly machines?

A: Industry 4.0 data enables real-time, remote monitoring of machine health and production efficiency metrics. It allows facility systems to log individual part quality, predict mechanical failures before they cause extensive downtime, and automatically adjust servo parameters to compensate for slight variations in raw material dimensions. This connectivity supports component-level traceability through MES and ERP integrations.

Q: What is the typical lead time for engineering and building a custom assembly machine?

A: Lead times vary significantly based on mechanical complexity and component availability, but a custom automated assembly machine typically takes between 24 and 52 weeks from the initial purchase order to final delivery. This timeframe includes conceptual design engineering, specialized part procurement, custom fabrication, mechanical assembly, software programming, and rigorous internal testing.

Q: How does product mix and variation impact the choice of assembly automation?

A: High product variation requires flexible automation. You will need robotic cells equipped with vision systems and quick-change end-of-arm tooling to handle multiple part profiles. Conversely, low variation paired with high production volume favors hard automation, such as rotary indexing dials. Hard automation runs much faster but proves highly expensive and mechanically difficult to retool for different product dimensions.

Q: What is a Factory Acceptance Test (FAT) for automated equipment and why is it critical?

A: A Factory Acceptance Test (FAT) is a rigorous performance evaluation conducted at the manufacturer's facility prior to shipping. It validates that the machine meets all technical criteria explicitly defined in the User Requirement Specification (URS). The FAT involves running the machine at specified speeds using actual production parts, ensuring you do not inherit unresolved mechanical bugs or software glitches.

Q: What are the primary causes of downtime in automated assembly machines and how can they be mitigated?

A: The primary causes of unplanned downtime include jammed feeding mechanisms due to out-of-tolerance raw parts, sensor alignment faults, and excessive tooling wear. You can mitigate these issues by heavily pre-sorting raw materials, implementing predictive maintenance software that monitors motor torque loads, and utilizing easily replaceable, standardized modular tooling components to speed up repair times.
