Functions：
1. Can set the upper and lower limits of the charging voltage, which can well protect the product.
2. Can set the cut-off current to ensure that each product can be fully charged;
3. Can set the upper and lower limits of the current .
4. Can set the upper and lower limits of charging time, and products that can not be charged or have too short charging time due to battery or other reasons can be selected;
5. Product can be charged at fixed time.
6. Single point control: Each point is independent and can perform multiple standard tests simultaneously,
7. Data monitoring: The monitoring data is saved regularly and can monitor the charging voltage, charging current, charging capacity, and charging energy of the product, and can generate corresponding curve graphs;
8. The computer can automatically judge the quality of the product based on the parameter set, and alarm if product could not meet the request.
Parameters:

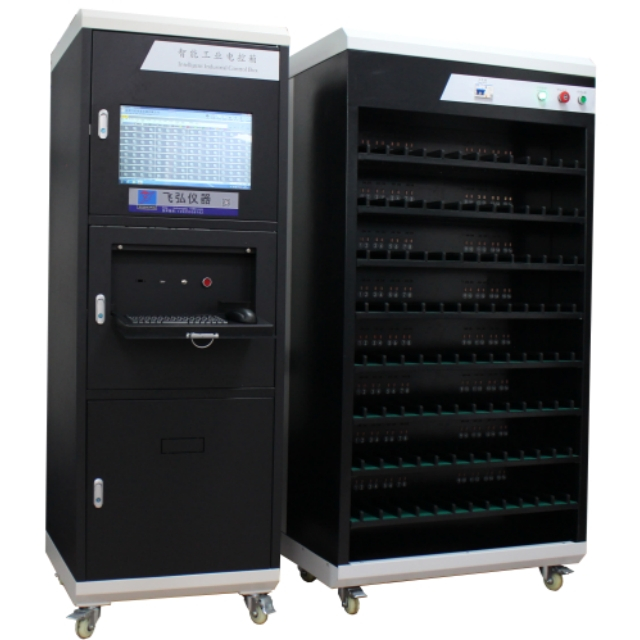

Product dimension Size | test rack:1780*650*1880mm(W*D*H）/electric cabinet: 650*650*1880mm（L*W*H） |
Station | 128 |
Charging voltage | 5V±0.2V |
Max Charge Current | 3A |
Charging mode | constant voltage charging |
Voltage resolution | 10mV, accuracy：±1% |
Current resolution | 1mA，accuracy：±1% |
System configuration | processor（CPU）：dual core or above, greater than 1.5GHz |
Memory（RAM） | greater than 1GB |
Hard drive | larger than 40GB |
Display screen | 20 inch |
Operating System | Windows 7 |
Power supply | AC 220V 50HZ ， Power：1.5KW
|
