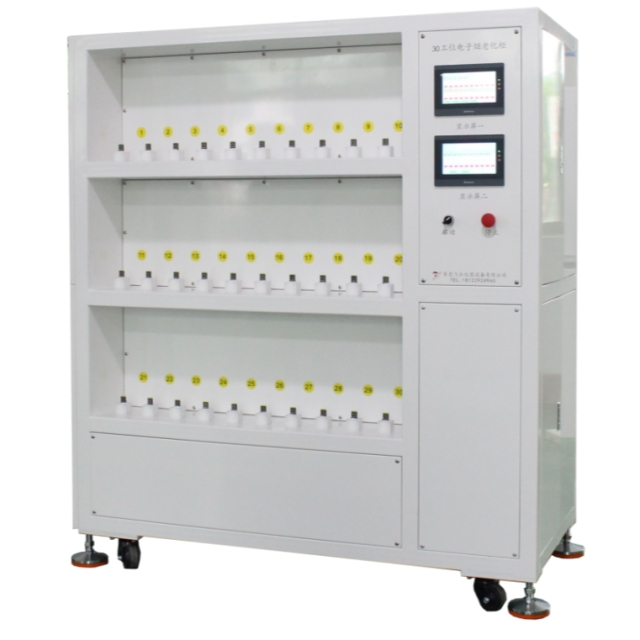

30 Station Suction Testing Machine

This machine is used for testing e-cigarettes and e-liquid, it use cylinder plunger to inhale, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not, it is suitable for multiple specifications of e-cigarettes.

Availability:

Quantity:



Inquire Add to Basket

30 Station Suction Testing Machine Draw Resistance Tester Suction Testing Machine

Product Description

Product Overview

This machine is used for testing e-cigarettes and e-liquid, it use cylinder plunger to inhale, by setting the smoking duration, smoking volume and smoking times, to judge whether the e-cigarettes are qualified or not, it is suitable for multiple specifications of e-cigarettes.

Specification Parameters

Inhale mode	Cylinder plunger
Smoking volume	1-100ml (accuracy range ±1%)
Smoking time	0.1-99sce
Duration time	1-9.9 seconds
Interval of each puff	1-999 seconds
Number of puff	1-99999
Motor	Step motor (Model 57,1.8 N/M) +PLC
Cylinder pushing mechanism	Ball screw
Touch screen	The number of test puff can be set, and the test will automatically stop when the set number is reached.
Display and control mode	Touch screen+ PLC+self-programming
Power	AC220V,50Hz
Product dimension	15407001490mm
