Product Overview

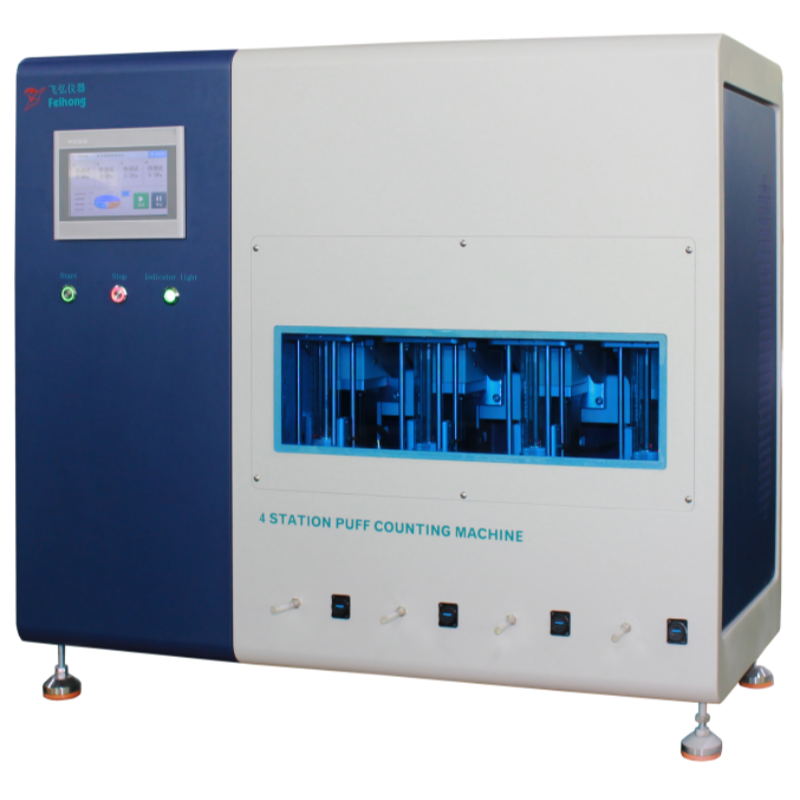

4-Station Precision Vape Puff Testing Machine
The 4-Station Precision Vape Puff Testing Machine is designed for performance testing and quality inspection of electronic cigarettes, disposable vapes, vape pods, and related products. The system simulates real user puffing behavior by controlling puff duration, puff volume, airflow rate, and puff count.
During testing, the vape device is secured in a dedicated fixture. A pneumatic trigger mechanism activates the device, while a precision piston system generates programmable airflow to simulate human inhalation. The machine then evaluates draw resistance, aerosol generation, and overall product performance to determine whether the device meets quality standards.
This equipment is ideal for R&D laboratories, production quality control, incoming inspection, and reliability testing.
Key Features & Benefits
4 Independent Testing Stations for higher throughput and efficiency.
Single-Test or Continuous Cycle Modes to meet different testing requirements.
Automatic Pass/Fail Evaluation based on programmable draw resistance parameters.
Real-Time Draw Resistance Monitoring for accurate product performance analysis.
Aerosol Detection Function verifies vapor generation during testing.
Optional Aerosol Density Measurement for advanced performance evaluation.
Real-Time Curve Display including:
USB Power Supply at Each Station for testing rechargeable vape devices.
PLC + Touchscreen Control System for intuitive operation and parameter setup.
Data Export Function for quality traceability and test reporting.
Low-Noise Operation with advanced pinch-valve technology.
Technical Specifications
Item | Specification |
Dimensions | 1000 × 400 × 800 mm (W × D × H) |
Testing Stations | 4 Stations |
Power Supply | AC 220V ±10%, 50Hz |
Net Weight | Approx. 98 kg |
Air Supply | 0.4 ~ 0.8 MPa |
Control System | PLC + 7-inch Touchscreen |
Puff Profile | Sine Wave / Trapezoidal Wave |
Puff Flow Rate | 0.1 ~ 60 ml/s Adjustable |
Puff Volume | 1 ~ 100 ml (Accuracy ±0.1%) |
Puff Interval | 0.1 ~ 999 s Adjustable |
Inhale/Exhale Interval | 0.1 ~ 999 s Adjustable |
Puff Count | 1 ~ 999,999 Puffs Adjustable |
Additional Functions | Low-Noise Operation, Aerosol Sensor, Data Export |
FAQ
Q1: What is a Vape Puff Testing Machine used for?
A Vape Puff Testing Machine is used to simulate real user inhalation behavior and evaluate key performance indicators such as draw resistance, airflow, puff volume, aerosol generation, and product consistency. It is widely used for vape quality control, product development, and reliability testing.
Q2: Can this machine test disposable vapes and rechargeable vape devices?
Yes. The system is compatible with disposable vapes, vape pods, rechargeable e-cigarettes, CBD cartridges, and other inhalation devices. Each station is equipped with a USB power port for testing rechargeable products.
Q3: What parameters can be programmed on the Vape Puff Tester?
Users can set puff duration, puff volume, airflow rate, puff interval, inhale/exhale interval, puff count, and pass/fail criteria according to specific testing standards.
Q4: Does the machine measure draw resistance?
Yes. The Vape Draw Resistance Tester continuously monitors and records draw resistance in real time and automatically evaluates whether the measured values meet predefined specifications.
Q5: Can the system detect vapor production?
Yes. The machine includes an aerosol detection function and can optionally be equipped with an aerosol concentration measurement module for more advanced testing applications.
Q6: What industries commonly use this E-Cigarette Testing Machine?
This equipment is commonly used by vape manufacturers, OEM/ODM factories, quality control laboratories, R&D departments, testing institutions, and certification laboratories.
Q7: Does the machine support data recording and export?
Yes. All testing data can be recorded and exported for quality analysis, traceability, compliance documentation, and product performance reports.
Q8: Why is draw resistance testing important for vape products?
Draw resistance directly affects user experience and product consistency. A Vape Draw Resistance Tester helps manufacturers identify airflow issues, manufacturing defects, and performance variations before products reach the market.
