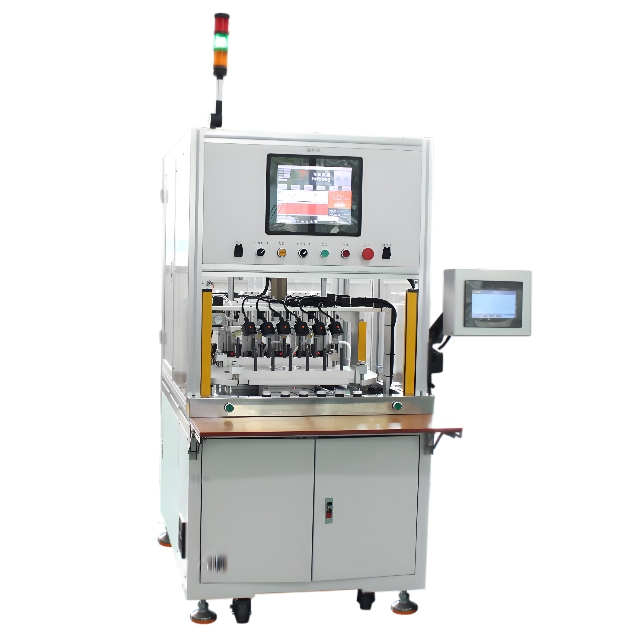

Elevate your electronic cigarette production line with the Feihong machine 6 Station Capping And Suction Resistance Testing Machine. Specifically engineered for medium to large-scale manufacturers, this advanced system is designed to streamline your workflow and enhance final product quality. By integrating automated capping with precise performance testing into a single, compact unit, you can significantly reduce operation time and boost your overall production throughput.
This machine is a critical asset for your quality assurance process. It delivers highly accurate and repeatable suction resistance testing, ensuring every disposable vape or e-cigarette meets your strict quality standards. For Production Managers and QA Engineers, this means guaranteeing product consistency and reliability. Trust the Feihong machine to reduce manual intervention, improve testing accuracy, and provide the efficiency your growing operation demands. As a robust Suction Testing Machine, it ensures product integrity and user satisfaction.
Engineered for high-volume production, the Feihong machine 6 Station Capping And Suction Resistance Testing Machine delivers precision and efficiency. Below are the key technical specifications that empower your quality control and assembly processes. This data highlights the machine's capability to integrate seamlessly into your existing workflow and meet demanding output targets.
Parameter | Specification |
|---|---|
Production Throughput (UPH) | 2,000 - 2,200 pcs/hr |
Test Stations | 6 |
Suction Resistance Range | 0 to -3,000 PA |
Smoking Volume | 100 ml |
Smoking Speed (Adjustable) | 5 - 30 ml/s |
Capping Pressing Time | 0.1 - 30 s |
Capping Pressing Speed | 0.5 - 10 cm/s |
Capping Pressing Distance | 50 mm |
Smoke Exhaust Speed | 5 - 40 ml/s |
Required Air Pressure | 0.45 - 0.6 MPa |
Power Supply | 220V / 2KW |
Power Supply Connection | Triangle plug |
Dimensions (L x W x H) | 800 x 1,400 x 1,750 mm |
Machine Weight | Approx. 400 kg |
Here are the standout features of the Feihong machine 6 Station Capping And Suction Resistance Testing Machine, designed to enhance your electronic cigarette production:
High-Throughput Dual Functionality: Boost your production line's efficiency by combining two critical processes into one. This fully automatic machine integrates both e-cigarette capping and precise suction resistance testing, achieving an impressive UPH of 2000-2200 pieces per hour. It's a true high-efficiency Suction Testing Machine.
Precision Quality Control: Ensure every unit meets your quality standards with highly accurate, automated testing. The machine precisely measures suction resistance within a 0 to -3000PA range and provides automatic pass/fail judgments based on your preset limits, guaranteeing product consistency. It functions as an advanced Draw Resistance Tester.
Advanced PLC-Driven Automation: Experience reliable, hands-off operation powered by a robust PLC core. This system minimizes manual intervention, reduces the chance of human error, and ensures consistent performance across every shift, making it easy for your team to operate. This fully automatic grade machine significantly improves production reliability.
Flexible and Adjustable Parameters: Adapt the machine to fit your specific product requirements. You can easily adjust key settings like pressing speed, pressing time, smoking speed, and suction time (1-20S), making this a versatile solution for various disposable vape and e-cigarette models.
Comprehensive Performance Testing: Beyond core suction resistance, this machine supports additional experimental capabilities such as puff count tests and battery life tests, allowing you to thoroughly evaluate product longevity and reliability.
The Feihong machine 6 Station Capping And Suction Resistance Testing Machine streamlines your quality control with a precise, automated process. Here’s how this advanced Suction Testing Machine ensures your products meet the highest standards:
Automated Test Initiation: Your electronic cigarettes are loaded into the six stations. The machine then initiates the capping and testing sequence automatically, maximizing your production line efficiency and reducing manual intervention.
Suction Resistance Measurement: To test suction resistance, the machine generates a controlled vacuum pressure at the mouthpiece, perfectly simulating a user's puff. This process, which measures the inhalation resistance (often referred to as suction resistance), provides an exact measurement of this critical quality metric.
Puff Count & Durability Validation: For lifecycle testing, you can set a specific number of puffs for a test cycle. The machine executes the cycle to verify if the product achieves the required puff count and battery life, assessing whether the electronic cigarette is qualified for intended usage.
Instant Quality Judgment: The system instantly compares results against your pre-set quality parameters (upper and lower limits), providing a clear pass/fail judgment for each unit and ensuring consistent product performance.
The Feihong machine 6 Station Capping And Suction Resistance Testing Machine is engineered to streamline your quality assurance process. It combines critical production steps into one efficient, automated system. Below is a breakdown of its core functions and how they benefit your manufacturing line.
Core Function | Benefit to Your Production Line |
|---|---|
6 Station Automated Capping | Securely caps up to six e-cigarette units simultaneously, drastically reducing manual operation time and boosting your overall throughput. This integration ensures consistent and reliable product assembly. |
Precise Suction Resistance Testing | Measures the exact inhalation pressure of each device. You can set custom upper and lower resistance limits, facilitating automatic pass/fail judgments to guarantee product consistency. This comprehensive Draw Resistance Tester capability ensures every unit meets quality criteria. |
Comprehensive Life Cycle Analysis | Performs essential performance tests, including puff count and battery life validation. This function allows you to assess the durability and reliability of your electronic cigarettes under simulated usage conditions. |
Integrated Quality Control | Combines capping and testing to ensure every unit leaving your facility meets consistent, high-quality standards before it is even packaged. This reduces human error and enhances overall product integrity. |
Optimize Your E-Cigarette Manufacturing and Quality Control
The Feihong machine 6 Station Capping And Suction Resistance Testing Machine is an essential asset for any large-scale vaping product manufacturer. It is specifically designed to enhance your production line at the most critical stages. Integrate this solution to benefit from its versatile applications:
High-Volume Automated Capping: Effortlessly handle the capping process for your disposable vapes and electronic cigarette cartridges. The 6-station design ensures high throughput, boosting your overall production efficiency and reducing labor costs.
In-Line Quality Assurance: Move beyond sample testing. This machine, functioning as a precise Suction Testing Machine, allows you to perform crucial suction resistance tests on a massive scale, ensuring every product leaving your line meets strict quality standards and delivers a consistent user experience.
Streamlined Production Workflow: By combining the essential processes of capping and testing, your facility can reduce manual handling, minimize bottlenecks, and create a more efficient, integrated assembly line from start to finish for electronic cigarette production.
Product Development & Validation: Use the precise resistance data collected during production to inform your R&D efforts. Validate new designs and refine product performance, including puff count and battery life, before committing to full-scale manufacturing, using this versatile Draw Resistance Tester.
Feihong machine: Your Partner in Vaping Production Automation
At Feihong machine (Shenzhen XGX Machinery Co., Ltd.), we are your dedicated partner for advanced manufacturing solutions. Located in Rentian Industrial Zone, Fuyong Town, Baoan District, Shenzhen, we provide a complete service cycle, from initial research and development to precision manufacturing, sales, and ongoing maintenance for all your equipment needs.
Specialized Industry Focus: We concentrate on creating high-performance equipment for the electronic cigarette industry. Our product line includes electronic cigarette testing equipment, oil filling equipment, aging equipment, and fixtures. The 6 Station Capping And Suction Resistance Testing Machine is a prime example, engineered to streamline your production and enhance quality control.
Integrated Solutions Provider: As a company that integrates R&D, production, and service, we offer end-to-end support. You get reliable machinery and a team committed to keeping your production lines running efficiently, serving as a trusted partner for your quality assurance processes.
Custom Engineering for Your Needs: Beyond our standard offerings, we excel in developing non-standard, custom automation solutions. Partner with us to create equipment tailored to your unique quality assurance and manufacturing requirements, ensuring optimal integration into your existing setup.
At Feihong machine, we understand that efficient logistics are critical to your production timeline. We ensure your 6 Station Capping And Suction Resistance Testing Machine is delivered securely and is ready for immediate integration.
Expertly Packaged: To guarantee integrity upon arrival, each machine is meticulously prepared as a single, protected unit in robust wooden box packaging. This safeguards all precision components during transit to your facility.
Logistics-Friendly Specifications (for single component/tester unit): While the main machine is substantial, for smaller individual components or specific testing units (like model XGX-XZ01, if ordered separately), the single package size is 41x30x38 cm with a gross weight of 22.00 kg. This simplifies receiving and handling for your team, allowing for easy positioning.
Designed for Your Operations: Our streamlined packaging and delivery process is built for B2B clients. We prioritize getting your essential testing equipment to you safely and promptly, helping you avoid project delays and accelerate the enhancement of your quality assurance processes.
Q: What warranty and after-sales support can we expect for our 6 Station Capping And Suction Resistance Testing Machine?
A: Feihong machine provides a comprehensive 12-month warranty, effective from the moment the equipment arrives at your manufacturing facility. We are committed to maximizing your production uptime and return on investment.
Our dedicated, professional team of experienced technicians offers global after-sales service to resolve any issues swiftly. We focus on ensuring your capping and Suction Testing Machine performs reliably throughout its entire lifecycle, safeguarding your quality assurance processes. For any support needs, our expert team is easily reachable to provide prompt and effective assistance, ensuring your machine's whole-life usage.
Q: Can the 6 Station Capping And Suction Resistance Testing Machine be customized for our specific vape products?
A: Absolutely. Feihong machine specializes in tailoring equipment to your needs. We can modify the machine to handle your unique product dimensions and capping requirements. We can also add your company logo directly onto the equipment for enhanced brand presence in your facility. Our goal is to provide a customized Draw Resistance Tester solution.
Q: What after-sales support and guarantee do you provide for this machine?
A: Feihong machine provides a 12-month guarantee starting from the machine's arrival at your facility. Our professional team of experienced technicians is committed to delivering the best after-sales service, ensuring your machine's optimal performance throughout its entire operational life. For full details, please refer to our dedicated "Warranty & Support" section.
Q: What are your payment terms and the minimum order quantity (MOQ)?
A: The minimum order for the 6 Station Capping And Suction Resistance Testing Machine is one set. To accommodate your procurement process, we offer flexible payment options, including direct T/T bank transfers, Alibaba Trade Assurance service, West Union, or cash.
Q: How will these goods be delivered?
A: The delivery method will be decided according to your order quantity and urgency. Typically, we utilize reliable international express services, air freight, or sea shipping to ensure secure and timely delivery of your equipment.
Q: How do I choose the most suitable equipment for my needs?
A: To recommend the best suitable equipment, please provide us with your specific requirements. This includes details such as production capacity, temperature range, pressure requirements, and any unique product specifications. Our experts will then guide you to the ideal solution.
