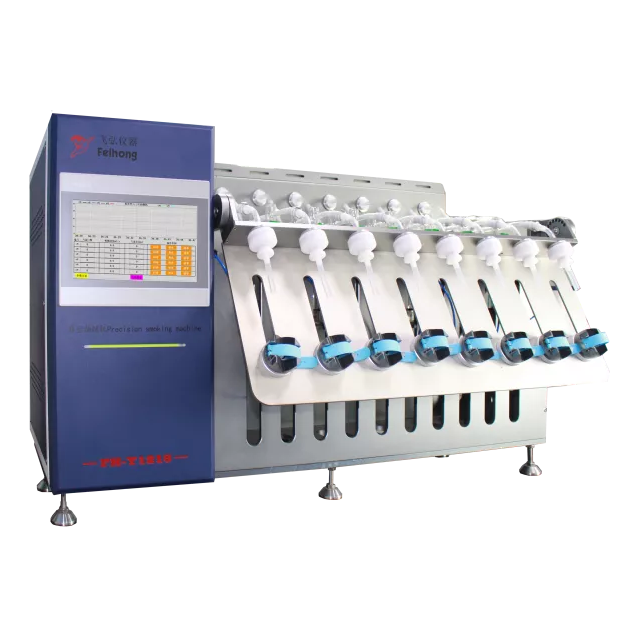

8-station Precision Smoke Extractor

Product Overview

     The 8-station precision smoke machine is primarily used for testing electronic cigarettes and e-liquids. By setting the corresponding smoking duration, smoking volume, and smoking times, the electronic cigarette to be tested is then fixed on the holder. The cigarette-lighting thumb cylinder on the holder activates the electronic cigarette's lighting button. At this point, the piston in the device simulates manual smoking action and inhales air into the electronic cigarette at a set flow rate. After smoking, smoke analysis is conducted on the gas collection bottle or filter to determine whether the electronic cigarette is qualified. This machine meets the standard smoking conditions for electronic cigarettes as specified in the electronic cigarette testing standard GB41700-2022.

Product functions and features

1. The 8-station precision smoke extractor can draw a smoking speed curve in real time during the testing process

2. You can choose between trapezoidal wave suction or sine wave suction

3. You can choose between cycle testing or single test mode

4. Support the use of the built-in gas collection bottle of the equipment to collect flue gas for analysis. Alternatively, flue gas analysis can also be performed on the residue left on the filter after smoking

instrument parameters

Size: 1200*610*730mm (8 workstations W*D*H)

Power supply: AC220V (±10%), 50HZ

Net weight: Approximately 176kg for 8 workstations

Button functions: Each workstation is equipped with an independent fixed gripper and a cigarette-lighting thumb cylinder

Air supply pressure: 0.4~0.8MPa

Control system: PLC + 10.5-inch touch screen

Suction mode: sine wave/trapezoidal wave

Suction speed: adjustable from 0.1 to 60 ml/s

Puff volume: 1~100ml (accuracy ±0.1%)

Interval between shots: 0.1~999 seconds (adjustable)

Inhalation and exhalation interval: 0.1~999 seconds (adjustable)

Number of puffs: 1~999999 puffs (adjustable)
