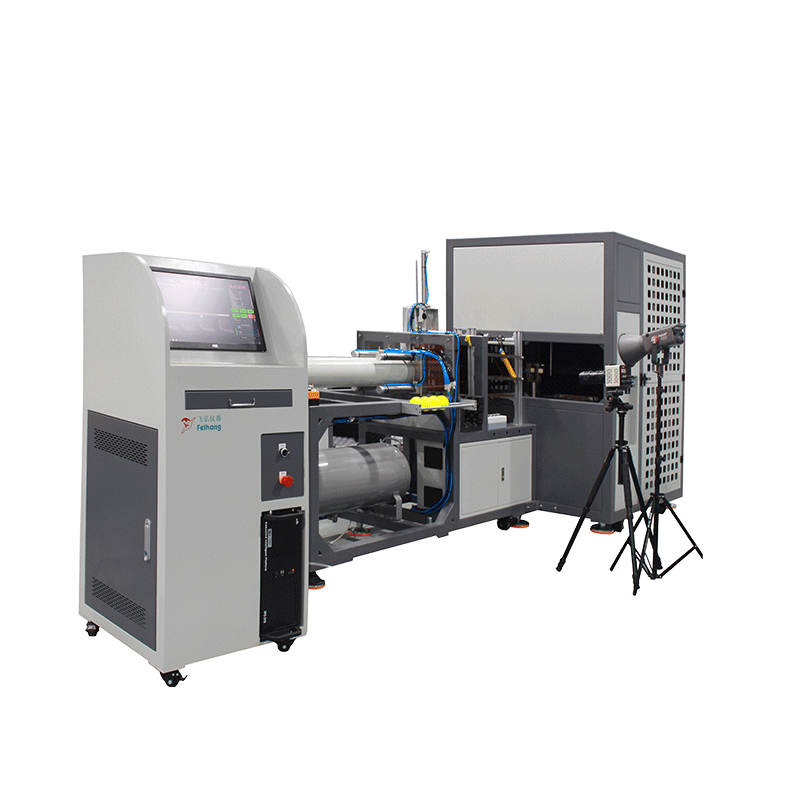

Pickleball Paddle PBCOR Test Machine

The 2025 USA Pickleball equipment rule changed everything. This machine tests for it.

The USA Pickleball 2025 PBCoR update introduced mandatory Paddle-Ball Coefficient of Restitution limits that effectively redefined which paddles can compete in sanctioned tournaments — and created an immediate need for manufacturers to measure PBCOR accurately before submission. This machine fires a pickleball at a mounted paddle at 30–100mph using a pneumatic cannon with FESTO servo pressure control, captures ball-in and ball-out speeds through paired high-speed light gates, and calculates PBCOR, COR, BP, COP, and MOI through LabVIEW 2021 software running on NI DAQ 6321 hardware. Infrared auto-aiming aligns the launch axis to the sweet spot. High-speed camera records every shot. Bilingual Chinese/English interface.

Quick Specs

• Standards: 2025 USA Pickleball PBCoR update, ASTM F2219, ASTM F1890, USAP, UPA-A PEF

• Parameters measured: PBCOR, COR, BP, COP, MOI

• Launch speed: 30–100mph (adjustable)

• Launch direction: Horizontal (0° barrel elevation)

• Barrel length: 800mm | Inner diameter: 100mm

• Propulsion: Pneumatic, MAX 5.5kg/cm²

• Pressure control: FESTO (Germany) servo pressure valve

• Speed sensors: 2 × high-speed light gates (incoming) + 2 × rebound angle light gates (outgoing), 6-inch spacing

• Control hardware: National Instruments NI DAQ 6321

• Software: LabVIEW 2021 (x64)

• Aiming: Infrared auto-aiming to sweet spot

• Camera: High-speed, high-resolution (810×100dpi)

• Interface: Chinese/English bilingual

Table of Contents

1. The 2025 USA Pickleball PBCoR Update — What Changed and Why It Matters

2. Overview of the PBCOR Test Machine

3. Standards and Test Parameters Covered

4. Five Parameters Measured: PBCOR, COR, BP, COP, MOI

5. Design Features

6. Technical Specifications

7. How the Testing Process Works

8. Benefits for Paddle Manufacturers and Testing Labs

9. Choosing the Right PBCOR Test Machine

10. Real-World Application Scenarios

11. FAQs

12. Related Testing Equipment

13. Get a Quote from Feihong Machine

The 2025 USA Pickleball PBCoR Update — What Changed and Why It Matters

Pickleball's explosive growth into mainstream competitive sport brought with it intense development pressure on paddle technology. Carbon fiber face materials, thermoformed construction, and optimized core geometries steadily pushed paddle performance — particularly "pop" at the sweet spot — to levels that the sport's governing bodies determined were fundamentally changing the nature of the game. In response, USA Pickleball introduced a revised equipment standard effective 2025 that added PBCOR (Paddle-Ball Coefficient of Restitution) as a mandatory approval parameter with a defined upper limit.

PBCOR is the ratio of the ball's exit speed to its entry speed when fired at a stationary paddle at a standardized test velocity. It is expressed as a dimensionless number between 0 and 1: a higher PBCOR means the ball leaves the paddle faster relative to how fast it arrived — more "pop." The 2025 USA Pickleball update set a maximum allowable PBCOR, effectively prohibiting paddles that exceed this limit from sanctioned tournament play.

The impact on manufacturers was immediate and significant:

• Existing paddle models that were already approved under previous standards needed re-evaluation against the new PBCOR limit

• New paddle designs must be tested for PBCOR compliance before submission to USA Pickleball for approval

• Production consistency must be demonstrated — a paddle design that passes PBCOR approval must be manufactured consistently enough that production units also pass

Measuring PBCOR requires a controlled pneumatic launcher that fires the ball at the paddle at a defined, repeatable speed, paired with high-speed sensors that capture both the incoming ball speed and the outgoing rebound speed accurately enough to calculate PBCOR to the precision the standard requires. This is not a test that can be done with a radar gun and a wall — it requires purpose-built laboratory test equipment calibrated to the ASTM and USA Pickleball test method specifications.

Overview of the PBCOR Test Machine

The machine is a pneumatic cannon-based PBCOR test system designed to implement the 2025 USA Pickleball PBCoR test protocol and the ASTM F2219 / ASTM F1890 measurement methods on which it is based.

A pneumatic cannon with a precision FESTO servo pressure valve launches a pickleball through an 800mm barrel at the desired test speed (30–100mph, computer-controlled via pressure adjustment). The ball exits the barrel into a transparent acrylic box where two high-speed light gates — spaced 6 inches apart — measure the incoming ball speed with high temporal precision. The ball then travels horizontally (0° barrel elevation) to impact the paddle mounted in the test fixture.

An infrared auto-aiming system aligns the barrel to the paddle's sweet spot (COP — Center of Percussion) before each test, ensuring impact occurs at the standardized measurement point. After impact, two rebound angle light gates capture the outgoing ball speed and trajectory. A high-speed camera records the full event — incoming ball, impact, and rebound — providing visual confirmation of impact location and a secondary speed measurement reference.

The NI DAQ 6321 industrial control and acquisition card (National Instruments, USA) samples all sensor channels at the acquisition rate needed to resolve light gate timing at 100mph ball speeds. LabVIEW 2021 (x64) processes the raw timing data into speed values, calculates PBCOR from the speed ratio, and outputs all five measured parameters — PBCOR, COR, BP, COP, MOI — with associated statistical data. A constant-pressure tank maintains stable pneumatic supply between shots, reducing shot-to-shot speed variation from supply pressure fluctuation.

Standards and Test Parameters Covered

2025 USA Pickleball PBCoR Update

The primary governing standard for paddle approval in USA Pickleball-sanctioned tournament play as of 2025. Defines the maximum allowable PBCOR value, the test method (impact speed, impact location — sweet spot/COP, measurement calculation), and the approval process. Paddles exceeding the PBCOR limit are removed from the approved paddle list and prohibited from sanctioned competition.

ASTM F2219 — Standard Test Methods for Measuring the Dynamic Stiffness and Flexibility of Sports Rackets/Paddles

ASTM F2219 provides the measurement methodology for COP, MOI, and related dynamic mechanical properties of paddle-format sports equipment. The machine's software implements the F2219 calculation methods for COP and MOI from measured impact location and force-time data.

ASTM F1890 — Standard Test Method for Measuring the Ball-Bat Coefficient of Restitution

ASTM F1890 defines the pneumatic cannon-based COR measurement method — specifying launcher geometry, speed sensor configuration, impact location, and COR calculation from speed ratio. The machine's hardware design (barrel length, sensor spacing, launch speed range) and COR calculation are based on the F1890 methodology adapted for pickleball paddles.

USAP (USA Pickleball) Equipment Certification Program

USA Pickleball's paddle approval process requires PBCOR testing by an approved testing laboratory using equipment that meets the specified test method. The machine is designed to meet the hardware and software requirements for approved testing.

UPA-A PEF (Universal Pickleball Association of America — Performance Evaluation Framework)

The UPA-A PEF provides an additional evaluation framework for paddle performance parameters including PBCOR, COR, and MOI. The machine's multi-parameter output covers all PEF-specified measurements.

Standards Summary

Five Parameters Measured: PBCOR, COR, BP, COP, MOI

PBCOR — Paddle-Ball Coefficient of Restitution (the 2025 Key Parameter)

Definition: The ratio of the ball's exit speed to its entry speed when a ball is fired at a stationary, freely-hanging paddle at the specified test speed and impact location (COP / sweet spot).

Formula: PBCOR = V_out / V_in

Why it matters: PBCOR is the parameter directly limited by USA Pickleball's 2025 update. It quantifies how much "pop" a paddle adds to the ball — a higher PBCOR means the ball leaves the paddle faster relative to arrival speed. The USA Pickleball limit caps this value to preserve the game's rallying character.

How it's measured: The pneumatic cannon fires at the paddle's COP at the specified test speed. Incoming speed is captured by the two entering light gates; outgoing rebound speed is captured by the two rebound light gates. LabVIEW calculates the ratio.

COR — Ball Coefficient of Restitution

Definition: The rebound ratio of the ball itself when impacted against a rigid surface — quantifying the ball's inherent elasticity independently of paddle effects.

Why it matters: COR is the baseline elasticity parameter for the pickleball before paddle effects are added. USA Pickleball specifies a COR range for approved balls; PBCOR builds on ball COR by adding the paddle's contribution. Knowing both COR and PBCOR allows manufacturers to separate ball contribution from paddle contribution in the combined PBCOR measurement.

BP — Balance Point

Definition: The position along the paddle's length at which it balances horizontally — the static center of mass location.

Why it matters: Balance point determines whether a paddle is head-heavy (more power on drives) or handle-heavy (more maneuverability at the net). BP is a design specification parameter for manufacturers and a product consistency QC metric for production.

COP — Center of Percussion (Sweet Spot)

Definition: The point on the paddle face at which impact produces no handle shock — the location where force transfer to the hitting arm is minimized and power transfer to the ball is maximized.

Why it matters: COP is the impact location specified for PBCOR testing (ensuring all paddles are tested at their optimal performance point, not an arbitrary location). It is also a design optimization target for paddle engineers and a marketing specification for competitive players.

How it's used in the machine: The infrared auto-aiming system uses the calculated COP location to align the barrel before testing, ensuring every shot impacts at the correct standardized location.

MOI — Moment of Inertia (Swing Weight)

Definition: The paddle's resistance to rotational acceleration about the grip axis — the physical quantity that determines swing weight feel.

Why it matters: MOI is the dynamic performance parameter that most directly correlates with how a paddle "feels" during swing, separate from its static balance point. Two paddles with identical weight and BP can have different MOI if their mass distribution differs. MOI is a design specification parameter and a comparative performance metric.

Parameter Summary

Design Features

FESTO (Germany) Servo Pressure Valve — Shot-to-Shot Speed Consistency

The pneumatic cannon is pressure-controlled by a FESTO servo pressure valve — the same brand specified throughout Feihong's high-accuracy pneumatic test equipment. For PBCOR measurement, shot-to-shot launch speed consistency is directly critical to result reproducibility: a ±1mph variation in incoming ball speed produces a proportional variation in measured PBCOR. The FESTO servo valve maintains programmed pressure with the precision needed for consistent launch speed within the 30–100mph test range.

A dedicated constant-pressure tank buffers the pneumatic supply between shots, preventing the pressure recovery time of the supply compressor from affecting successive shot pressures. This combination — FESTO servo valve + constant-pressure tank — is the hardware configuration that produces the launch speed stability the PBCOR test method requires.

NI DAQ 6321 — National Instruments Industrial Acquisition

The NI DAQ 6321 (National Instruments, USA) is an industrial-grade data acquisition card that samples the light gate sensor channels at the acquisition rate needed to time a ball traveling at 100mph through a 6-inch sensor spacing with sufficient temporal resolution for accurate speed calculation. At 100mph (44.7m/s), a ball passes 6 inches (0.1524m) in approximately 3.4 milliseconds — requiring microsecond-level timing resolution from the acquisition hardware. The NI DAQ 6321 provides this resolution through its high-frequency counter/timer inputs, making it the standard hardware platform for ASTM F1890-type cannon tests.

LabVIEW 2021 (x64) — Purpose-Built Test Software

LabVIEW 2021 (x64) is the software environment used by the machine's control and analysis software. LabVIEW is the industry-standard development platform for instrumentation and test applications — it interfaces directly with NI DAQ hardware, provides the real-time data acquisition and processing needed for light gate timing, and implements the PBCOR, COR, COP, MOI calculation algorithms defined in ASTM F2219 and ASTM F1890.

The software interface is available in Chinese and English — supporting both domestic QC use and international customer acceptance testing or cross-border lab audits. All test data, calculated parameters, speed-time records, and camera captures are storable and exportable from the software.

Infrared Auto-Aiming to Sweet Spot (COP)

Before each shot, the infrared auto-aiming system aligns the barrel axis to the paddle's COP (sweet spot) position. This is not a cosmetic feature — the PBCOR test standard specifies that the ball must impact the COP; tests at other locations produce non-standard PBCOR values that cannot be compared to the specification limit. Auto-aiming removes operator variability from the alignment step, ensuring every test shot strikes the correct impact point.

Dual Incoming + Dual Rebound Light Gates

Four high-speed light gates (2 incoming + 2 rebound) capture ball velocity on both sides of the impact event:

• 2 incoming light gates (6-inch spacing, in transparent acrylic box at barrel exit): Measure ball speed immediately before paddle impact → V_in

• 2 rebound angle light gates: Measure ball speed and rebound angle after paddle impact → V_out and rebound trajectory

The paired configuration on each side (two gates, known spacing, time difference = speed) gives a direct speed measurement from time-of-flight, independent of ball mass or sensor calibration factors that affect other speed measurement methods.

High-Speed Camera (810×100dpi)

A high-resolution high-speed camera captures the full impact event — ball in flight, impact on paddle face, and rebound trajectory. Camera output provides:

• Visual confirmation of impact location on paddle face (COP alignment verification)

• Secondary speed reference from frame-by-frame analysis

• Documentation of any anomalous events (off-center impact, ball deformation, frame flex)

• Test evidence record for approval submissions

The camera connects via a 10-gigabit network card for high-speed data transfer that keeps pace with high-resolution video capture at the required frame rate.

800mm Horizontal Barrel (0° Elevation)

The 800mm barrel provides the acceleration distance needed to stabilize ball velocity before it exits the barrel and enters the sensor zone. At 0° elevation (horizontal launch), the ball trajectory is flat — the rebound geometry is symmetric and the impact location on the paddle face is precisely controlled by the auto-aiming system without vertical offset correction.

The 100mm barrel inner diameter accommodates the standard pickleball diameter (72–74mm) with clearance for consistent centering without excessive gap that would allow the ball to bounce inside the barrel during acceleration.

Technical Specifications

Test Performance

Sensor System

Instrumentation and Software

Pneumatic System

Why These Specifications Matter

• NI DAQ 6321 + LabVIEW 2021 is the hardware-software combination that ASTM F1890-type cannon tests are built on. Using non-NI acquisition hardware or a different software platform would require independent validation of the timing accuracy — NI's published timing specifications are recognized by ASTM as meeting the test method's accuracy requirements.

• FESTO servo pressure valve + constant-pressure tank directly determines shot-to-shot PBCOR reproducibility. The ratio calculation V_out/V_in is sensitive to V_in variation: a ±0.5mph V_in variation at 50mph produces a ±1% PBCOR variation. Servo pressure control with tank buffering is the hardware configuration needed to hold V_in within the tolerance required for repeatable PBCOR results.

• 6-inch light gate spacing is the sensor separation specified in ASTM F1890 — providing a time-of-flight measurement window large enough for reliable timing at both low (30mph) and high (100mph) ball speeds. Too short a spacing would require higher timing resolution; too long would require the sensor zone to extend beyond practical geometry.

• Infrared auto-aiming to COP is what makes consecutive tests on the same paddle comparable and what makes results from different test setups comparable. Manual alignment to the sweet spot introduces ±5–10mm positioning variability that translates directly into PBCOR variability — the sweet spot is exactly where the paddle is most responsive, so small miss distances produce measurable PBCOR differences.

How the Testing Process Works

Step 1: Paddle Preparation and BP/COP Measurement

The paddle is weighed and its balance point (BP) is measured. The COP (sweet spot) is calculated from the paddle's physical dimensions and mass distribution per the ASTM F2219 method. The COP position is used to configure the auto-aiming system for subsequent impact shots.

Step 2: Paddle Mounting and Auto-Aiming

The paddle is mounted in the test fixture in a freely-suspended configuration (per ASTM F1890 — the paddle must be free to move on impact, not rigidly clamped, to allow correct momentum transfer calculation). The infrared auto-aiming system aligns the barrel axis to the COP location. Alignment is visually confirmed on the software display.

Step 3: Launch Speed Setting

The target launch speed (30–100mph) is entered in the LabVIEW software. The software commands the FESTO servo valve to the corresponding pressure setpoint. The constant-pressure tank is pre-charged to the set pressure.

Step 4: Shot Execution and Data Capture

The cannon fires. The ball travels through the two incoming light gates (V_in measured from time-of-flight at 6-inch spacing), impacts the paddle at the COP, and rebounds through the two rebound light gates (V_out and rebound angle measured). The high-speed camera captures the full event. The NI DAQ 6321 records all sensor timestamps at microsecond resolution.

Step 5: Automatic Calculation and Display

LabVIEW 2021 calculates:

• V_in from incoming light gate timing

• V_out from rebound light gate timing

• PBCOR = V_out / V_in

• Rebound angle from rebound gate geometry

• MOI from paddle physical parameters and impact response

• COP (previously calculated, displayed as reference)

• BP (previously measured, displayed as reference)

All values are displayed on the bilingual HMI. The high-speed camera image with impact point overlay is displayed for visual confirmation.

Step 6: Repeat and Statistical Analysis

Multiple shots are taken per paddle (typically 5–10) to establish statistical repeatability. LabVIEW calculates mean, standard deviation, and range across shots. All data is saved and exportable for submission documentation or comparative analysis.

Benefits for Paddle Manufacturers and Testing Labs

Pre-Submission PBCOR Qualification

Before submitting a paddle design to USA Pickleball for official approval testing, manufacturers use the machine to verify that PBCOR is within the 2025 limit. Catching a non-compliant PBCOR at the internal testing stage allows design adjustment (face material, core construction, thickness) before formal submission — avoiding a failed approval test and the delay of resubmission.

All Five Parameters from One Test Session

Production Batch Consistency Verification

Once a paddle design is approved, production units must be manufactured consistently enough to also pass PBCOR testing. The machine enables production sampling — testing units from each production batch to detect PBCOR drift before a batch of non-compliant paddles is shipped.

High-Speed Camera Documentation

Every shot is captured on camera — providing visual evidence of impact location at the COP, ball deformation on impact, and any anomalous events. Camera records support approval submission documentation and provide unambiguous evidence in case of dispute over test conditions.

Choosing the Right PBCOR Test Machine

Hardware Standard: NI DAQ vs. Generic Acquisition

ASTM F1890-type cannon tests are built on NI DAQ hardware because NI's timing resolution specifications are recognized and documented in the standard's development. Generic acquisition hardware may provide adequate timing at lower ball speeds but should be independently validated for timing accuracy at 100mph. For testing that will be submitted to USA Pickleball for approval, confirm that the acquisition hardware meets the ASTM timing specification.

Software: LabVIEW vs. Custom Platforms

LabVIEW is the standard platform for ASTM-based sports equipment COR testing for the same reason — the calculation algorithms, data acquisition drivers, and real-time processing are directly supported by NI/LabVIEW's test and measurement framework. Custom-coded platforms require independent algorithm validation. For approval submissions, LabVIEW-based systems have an established track record with test laboratories.

Pressure Control: Servo Valve vs. Manual Regulator

Shot-to-shot PBCOR reproducibility is dominated by launch speed consistency. A manual pressure regulator set by hand introduces operator-to-operator variation and thermal drift between shots that a servo pressure valve — computer-commanded to a specific setpoint before each shot — eliminates. For PBCOR testing where the ratio must be reproducible to the third decimal place, servo pressure control is not optional.

Auto-Aiming vs. Manual Alignment

If impact location varies between shots or between test sessions, PBCOR values are not comparable. A ±5mm miss from the COP at 50mph can produce measurable PBCOR variation. Infrared auto-aiming to the calculated COP is the solution — it makes alignment objective, repeatable, and operator-independent.

Real-World Application Scenarios

A paddle manufacturer whose thermoformed carbon model was on the USA Pickleball approved list discovered through PBCOR testing that a change to their core foam formulation — made to reduce production cost — had raised PBCOR above the 2025 limit. The issue was identified before any production units reached retailers, allowing the original core formulation to be reinstated and the model to remain on the approved list without requiring a new submission.

A professional pickleball equipment brand used the machine's MOI and COP measurement outputs to develop a systematic "paddle matching" service for sponsored players — identifying paddle units from production batches whose MOI, BP, and PBCOR values fell within a tighter internal tolerance than the USA Pickleball approval requirement. Players received matched paddle pairs with identical measured performance characteristics.

An independent testing laboratory used the machine to establish a PBCOR testing service for small-volume paddle manufacturers who cannot justify in-house equipment investment — running PBCOR pre-qualification tests on submitted paddles before USA Pickleball formal submission, providing manufacturers with a pass/fail assessment and the full five-parameter data set within 48 hours of paddle receipt.

FAQs

What is PBCOR and why did USA Pickleball introduce a limit in 2025?

PBCOR (Paddle-Ball Coefficient of Restitution) is the ratio of the ball's exit speed to its entry speed when a ball is fired at a stationary paddle at the specified test speed. USA Pickleball introduced a maximum limit in 2025 because advancing paddle technology — particularly thermoformed carbon face construction — had raised PBCOR values to levels that were changing the nature of the game, reducing rally duration and disadvantaging players without high-PBCOR equipment. The limit standardizes the maximum "pop" a paddle can add to the ball.

What is the difference between COR and PBCOR?

COR (Coefficient of Restitution) measures the ball's own elasticity against a rigid surface — how much energy the ball retains in rebound. PBCOR measures the combined system response — how much energy the paddle-ball interaction returns to the ball, incorporating the paddle's face compliance, core deformation, and structural dynamics alongside the ball's COR. A ball's COR is a baseline; PBCOR adds the paddle's contribution.

Why must the paddle be freely suspended during the test (not rigidly clamped)?

ASTM F1890 specifies freely-suspended mounting because a rigidly clamped paddle would transfer momentum to the fixture rather than to the paddle — artificially lowering the measured rebound speed and giving a non-representative PBCOR. Free suspension allows the paddle to move naturally under impact, replicating the momentum exchange that occurs when a player hits a ball.

Why is the barrel at 0° elevation (horizontal)?

Horizontal launch provides a flat trajectory from barrel to paddle, ensuring impact location is precisely at the COP as set by the auto-aiming system, without vertical offset from a projectile arc. A non-zero elevation would require the impact point to be corrected for the ball's drop over the travel distance.

How many shots per paddle are typically required?

USA Pickleball's test protocol specifies a minimum number of shots for averaging. Typically 5–10 shots are taken per paddle face location to establish statistical repeatability — mean PBCOR and standard deviation are reported alongside individual shot values.

Can the machine test pickleball balls for COR separately from paddle testing?

Yes. The machine can fire the ball against a rigid reference surface to measure ball COR independently — useful for verifying that the ball used in paddle testing meets the approved ball specification, and for separating ball COR contribution from paddle contribution in PBCOR analysis.

What air pressure supply is required?

Maximum 5.5kg/cm² (approximately 78 PSI / 5.4 bar), customer-supplied. A standard shop air compressor with appropriate regulator and filter is adequate. The machine's FESTO servo valve and constant-pressure tank condition the supply to the required shot pressure.
