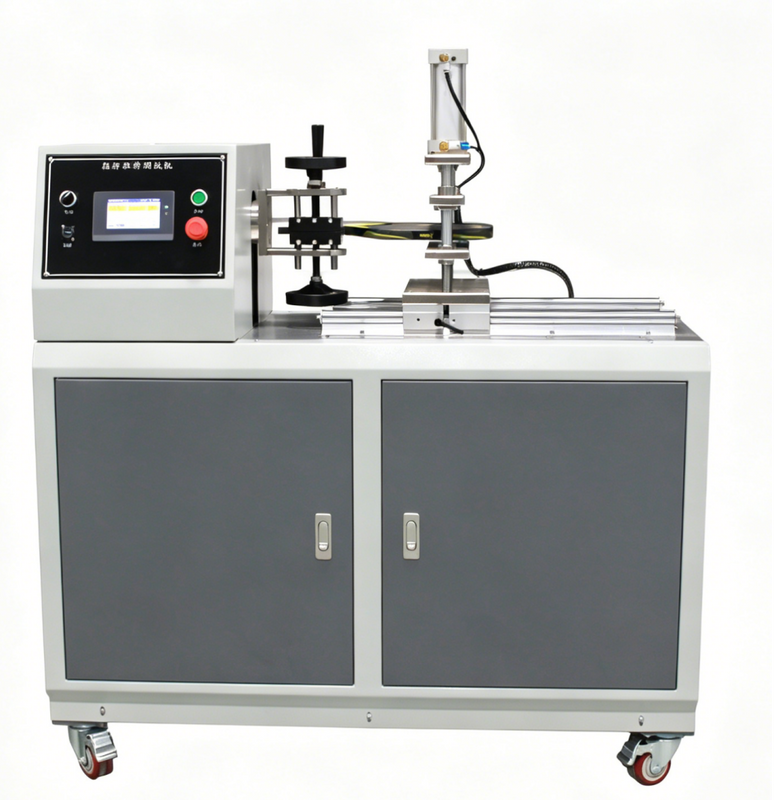

Professional Racket Torsional Strength & Structural Stiffness Testing System
Standardize your sporting goods production and design validation with our premium Racket Torsional Strength Tester. Engineered for high-performance pickleball paddles and badminton rackets, this specialized instrument measures the structural torsional resistance of the shaft, throat, and handle junctions.
Featuring an advanced U25 programmable controller, the rig integrates a high-precision torque sensor paired with an electronic rotary encoder to deliver synchronized torque and angle tracking. Technicians can easily customize torque limits, adjust deflection velocities, choose bilateral twisting directions, and execute automated zero-return routines to precisely catalog the exact threshold of specimen failure or permanent deformation.
Equipment Advantages & Technical Highlights
Dual-Sensor Data Synchronization: Utilizes premium torque sensors and rotary encoders working in tandem to accurately capture physical deformation profiles frame-by-frame.
Ergonomic Clamping Architecture: Designed for quick-turnaround laboratory workflows, enabling secure, slip-free clamping of varying racket handle geometries and composite head frames.
Reliable Deadweight Load Scaling: Employs physical ballast weights combined with a fixed lever mechanical ratio to deliver pure, uninterrupted static torque application free from electronic motor interference.
Technical Specifications:
1. Angle: Adjustable from 0 to 45 degrees
2. Weights: 0.5 kg, 1 kg
3. Lever Ratio: 1:1.5
4. Dimensions: 900 x 610 x 1300 mm (L x W x H)
5. Weight: 80 kg
6. Power Supply: AC 220 V, 5 A
FAQs:
Q1: What is the mechanical loading logic used to evaluate racket torsional strength? A: The tester operates on a dual-anchor constraint logic. The racket head profile is securely locked into a rigid perimeter fixture while the handle grip is clamped to a rotating drive shaft. The system then applies a controlled twisting force up to a designated torque limit or angular displacement, forcing the throat of the racket to twist so the sensors can isolate structural weak points.
Q2: How do the torque sensor and rotary encoder work together within the U25 control loop? A: As the machine initiates the twist, the torque sensor captures real-time structural resistance while the rotary encoder logs the exact angular deflection frame-by-frame. The U25 controller syncs these streams instantly, plotting a precise torque-versus-angle curve to reveal structural yield points before the system triggers its automated return-to-zero safety cycle.
Q3: What logic governs the variable weight configurations and the 1:1.5 lever ratio? A: To ensure repeatable static torque applications without motor electrical noise, the system utilizes a physical lever arm mechanism. By combining the 0.5 kg or 1 kg deadweights with the integrated 1:1.5 lever ratio, laboratories can accurately scale up the physical torsional load introduced to the racket frame, adapting to different material stiffness requirements for carbon composites or wood layups.
Q4: What is the post-test logic when the system executes its automated return-to-zero routine? A: Upon reaching the programmed threshold or detecting material yield, the U25 controller initiates a controlled decompression logic to safely return the drive shaft to its initial baseline angle. This zero-return cycle allows technicians to examine the un-tensioned specimen under neutral conditions, making it simple to observe cracks, delamination, or permanent structural warping.
