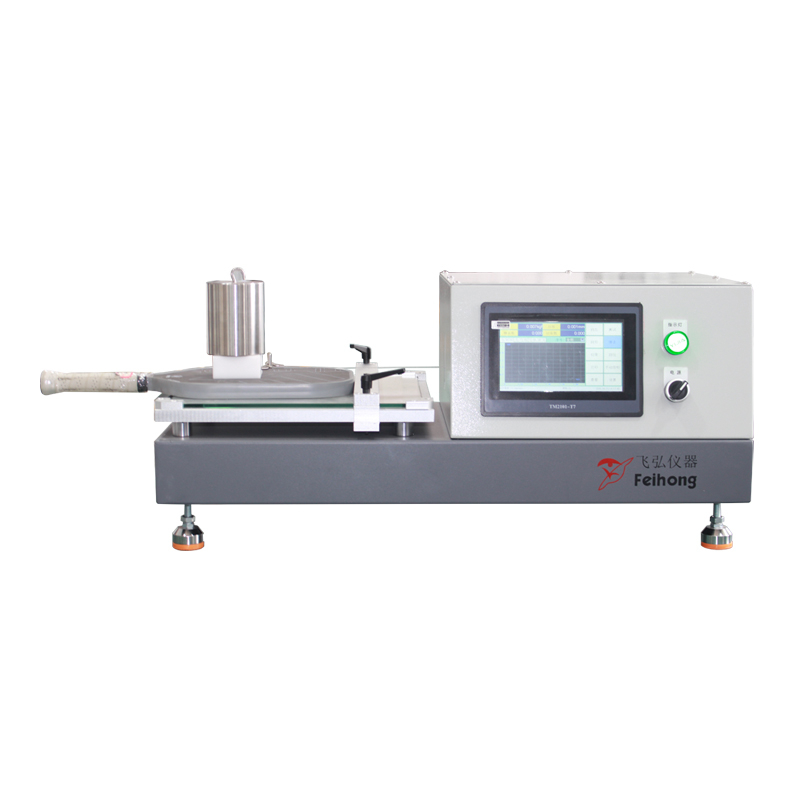

The Pickleball Paddle Friction Coefficient Testing Machine is designed to measure the static and kinetic coefficient of friction of pickleball paddle surfaces and other materials in accordance with ASTM D1894 standards. The instrument provides accurate and reliable friction testing results for quality control, product development, and laboratory analysis.
This digital friction coefficient tester features simultaneous display of static and dynamic friction values, high measurement accuracy, and stable testing performance. It is widely used in sports equipment manufacturing, material testing laboratories, research institutions, and quality inspection departments.
Features:
• Complies with ASTM D1894 testing standard
• Simultaneous display of static and kinetic friction coefficients
• Automatic calculation and digital display
• High precision measurement with ±1% accuracy
• Adjustable sliding speed from 100–500 mm/min
• Stable and durable test platform
• Suitable for pickleball paddles, films, plastics, rubber, coatings, and other materials
Technical Specifications:
• Sample Thickness: <2 mm (customizable)
• Slider Size: 63 × 63 mm (customizable)
• Slider Weight: 200 ±2 g
• Test Platform Size: 180 × 260 mm
• Display: Digital display for static and kinetic friction coefficients
• Measurement Accuracy: ±1%
• Sliding Speed: 100 ±10 mm/min (adjustable from 100–500 mm/min)
• Maximum Stroke: 150 mm (adjustable)
• Force Range: 0–20 N
• Dimensions: Approx. 650 × 350 × 265 mm
• Power Supply: AC220V ±22V, 50Hz
Applications:
The machine is ideal for testing the surface friction performance of pickleball paddles, plastic films, composite materials, coatings, rubber sheets, packaging materials, and other products requiring friction coefficient analysis.
