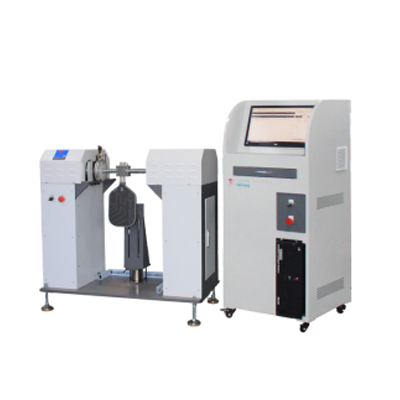

This racquet impact tester uses a variable-frequency motor and clutch to control the racquet's impact, and a speed-regulated motor and clutch to control the lifting motion. The impact speed and angle are adjustable, and the system monitors the number of impacts and real-time force, with the ability to export recorded data.
Function Description
1. Impact force testing: Measures real-time impact force for each test, plots a curve, and supports data export.
2. Life cycle testing: Allows adjustment of impact frequency at different angles and speeds to evaluate product lifespan.
Technical Specifications
Force Range 100 kg
Force Accuracy ±1% FS
Impact Speed 0–150 rpm
Speed Accuracy ±1% FS
Equipment Dimensions Approx. 1260 x 1060 x 550 mm
Control Console Dimensions Approx. 900 x 600 x 1200 mm
Power Supply AC 380 V, 5 A
