Product Overview

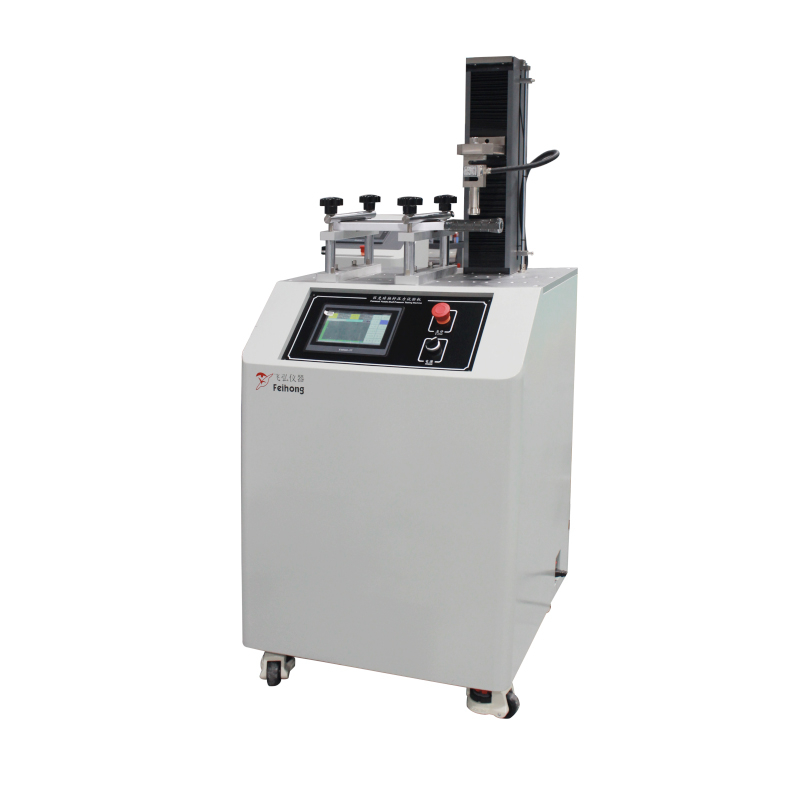

This equipment is designed for conducting pressure tests on Pickleball racket shafts.
Technical Specifications
Pressure hold time: Adjustable from 0 to 30 seconds
Number of cycles: Adjustable from 0 to 99,999,999
Drive system: Servo motor + touchscreen + PLC
Test speed range: Adjustable from 10 to 500 mm/s
Test fixture: One set of test fixtures custom-made according to the customer’s product
Test Force Range: Adjustable within 0–50 kg
Safety Features: Overload emergency stop device, upper and lower travel limit switches
Test Stroke: 300 mm
Power Supply: 220 V / 50 Hz
Force Measurement Display Accuracy: 0.01 kg
Pressure Duration: Adjustable from 0 to 30 seconds
Dimensions: 610 x 600 x 1380 mm
