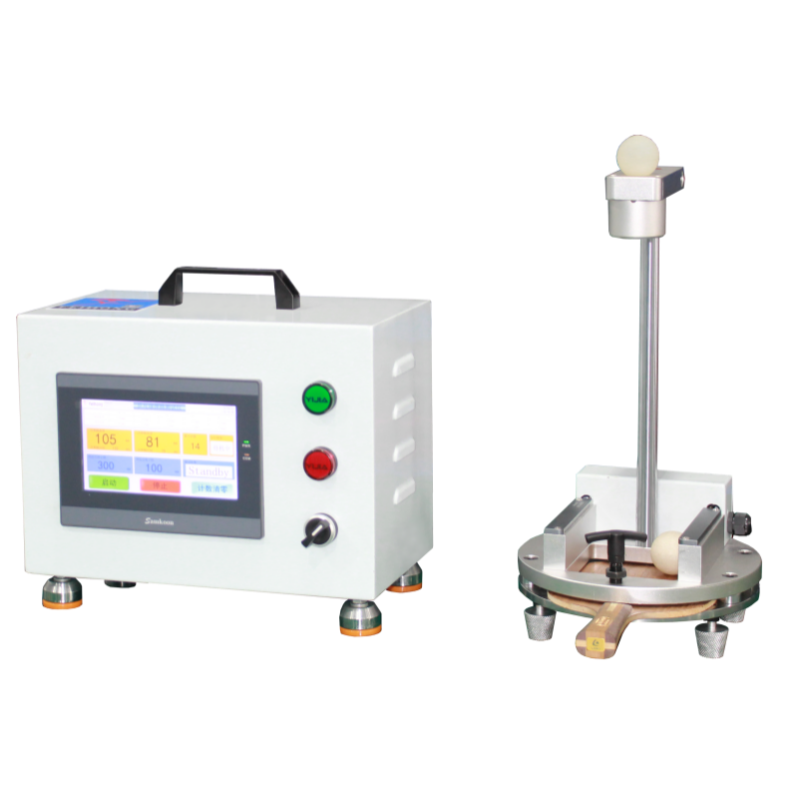

The Table Tennis Ball Rebound Height Tester is designed to evaluate the rebound performance of table tennis balls by measuring their bounce height under controlled test conditions. The equipment is developed in accordance with GB/T 20045-2005 requirements and is widely used by table tennis ball manufacturers, quality inspection laboratories, sports equipment testing centers, and research institutions.
The tester utilizes a photoelectric detection system to automatically measure the rebound height of a ball dropped from a specified height onto a precision steel impact plate. The system provides accurate, repeatable, and efficient testing results for product quality control and compliance verification.
Features:
• Designed specifically for table tennis ball rebound height testing
• Complies with GB/T 20045-2005 testing requirements
• Photoelectric sensor detection for accurate measurement
• Automatic rebound height calculation and display
• High repeatability and testing consistency
• Stable steel impact plate construction
• Microprocessor-controlled data processing system
• Suitable for laboratory and production quality control applications
• Compact structure and user-friendly operation
Applications:
• Table tennis ball manufacturing
• Product quality inspection
• Research and development laboratories
• Sports equipment certification testing
• Incoming and outgoing quality control
Technical Specifications:
• Test Object: Table Tennis Ball (Ping Pong Ball)
• Standard: GB/T 20045-2005
• Test Platform Dimensions: 220 × 220 × 420 mm
• Control Box Dimensions: 335 × 190 × 220 mm
• Power Supply: AC 220V
• Power Consumption: 220W
• Current: 1A
System Components:
• Photoelectric detection unit
• Precision steel impact plate
• Automatic data processing controller
• Digital display system
• Data output and recording functions
Benefits:
By accurately measuring rebound height performance, the tester helps manufacturers ensure product consistency, verify compliance with industry standards, improve quality control procedures, and support product development for professional and recreational table tennis balls.
