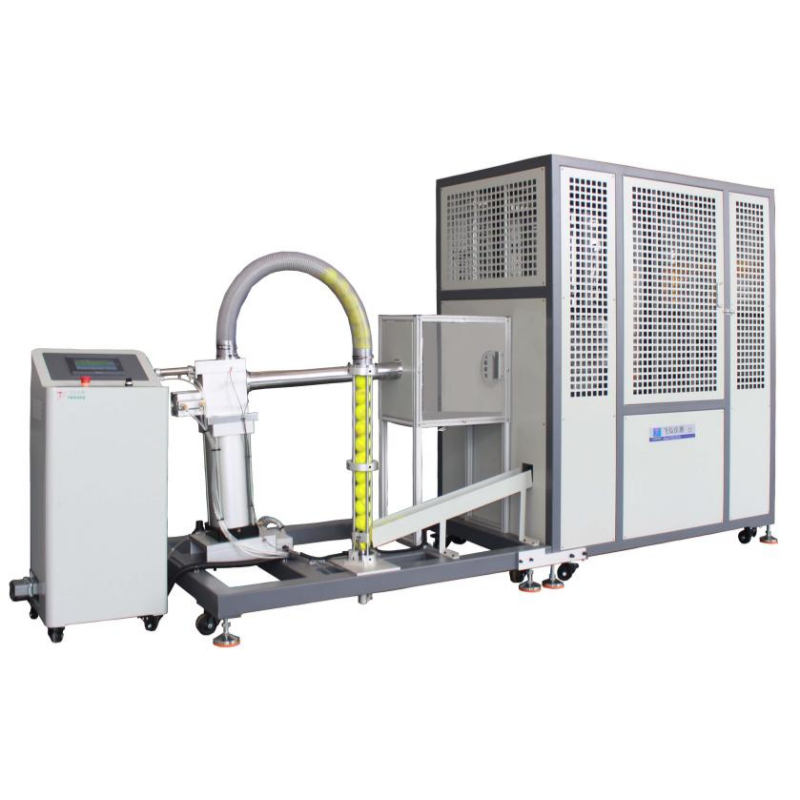

The Racket Ball Cannon Impact Testing Machine is designed to evaluate the durability, impact resistance, and fatigue performance of tennis rackets, beach tennis rackets, baseball bats, and similar sports equipment. Using compressed air as the launching power source, the system simulates real-world high-speed ball impacts to assess product reliability under repeated impact conditions.
The machine automatically launches balls at controlled speeds toward the test specimen and performs continuous impact cycles according to preset test parameters. After repeated impacts, manufacturers can inspect racket deformation, structural integrity, and durability performance.
This testing system is ideal for sports equipment manufacturers, research laboratories, quality control departments, and certification organizations.
Key Features:
• Simulates real-game high-speed ball impacts
• Suitable for tennis rackets, beach tennis rackets, baseball bats, and other sports equipment
• Maximum launch speed up to 160 mph
• Automatic cyclic impact testing mode
• Manual testing mode available
• Adjustable interval time between shots
• High-precision projectile speed measurement
• Designed for durability, fatigue, and deformation testing
• Stable compressed-air launching system
• User-friendly control interface
Applications:
• Tennis racket durability testing
• Beach tennis racket impact resistance evaluation
• Baseball bat fatigue testing
• Sports equipment quality control
• Product development and design validation
• Repeated impact life cycle testing
• Structural durability assessment
Technical Specifications:
Maximum Launch Speed: 160 mph
Launch Interval Time: Adjustable from 0–9999 seconds
Air Pressure Requirement: Minimum 7 kg/cm²
Speed Display Accuracy: 0.01 mph
Distance from Barrel to Impact Surface: 1000 mm
Testing Modes:
• Fully Automatic Cyclic Test Mode
• Manual Test Mode
Machine Weight: Approx. 220 kg
Test Platform Dimensions: 3240 × 1000 × 1850 mm (L × W × H)
Control Cabinet Dimensions: 460 × 430 × 1080 mm (L × W × H)
Power Supply: AC 220V
Power Consumption: 200 W
Current: 1 A
Benefits:
• Accelerates product durability verification
• Simulates realistic impact conditions
• Reduces long-term field testing costs
• Identifies structural weaknesses before production
• Improves product reliability and quality consistency
• Supports R&D and certification testing requirements
FAQ
Q: What products can be tested with this machine?
A: The system is suitable for tennis rackets, beach tennis rackets, baseball bats, pickleball paddles, and other sports equipment exposed to repeated ball impacts.
Q: What is the maximum impact speed?
A: The launcher can generate ball speeds up to 160 mph, simulating professional-level impact conditions.
Q: Can the machine perform continuous testing automatically?
A: Yes. The equipment offers a fully automatic cyclic testing mode with programmable shot intervals.
Q: What is the purpose of this test?
A: It evaluates durability, fatigue resistance, structural integrity, and deformation behavior after repeated impacts.
Q: Can testing parameters be customized?
A: Yes. Launch speed, shot intervals, fixtures, and testing configurations can be customized according to customer requirements.
