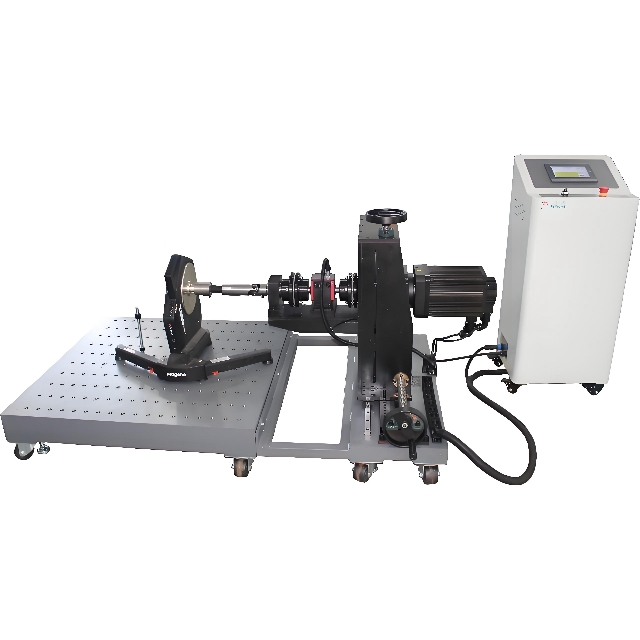

Product Overview
The power test device simulates the input power of a user's riding by using a motor and measures the torque, speed, and power of the cycling station in real time through a torque sensor. The power test device can measure items such as power accuracy, controllable power with high torque, spin-down time, and control response time.
Technical parameters
1. Test shaft speed: 1-285r/min
2. Test shaft torque: 1-105NM
3. test power: 3.14KW
4. Torque sensor accuracy: 0.5%
5. Touch screen size: 4 inches
6. Overall dimensions: Test bench 1690x1150x1010mm
Control cabinet 450x400x1060mm
7. Equipment power consumption: 380V, 5.5KW, 15A
