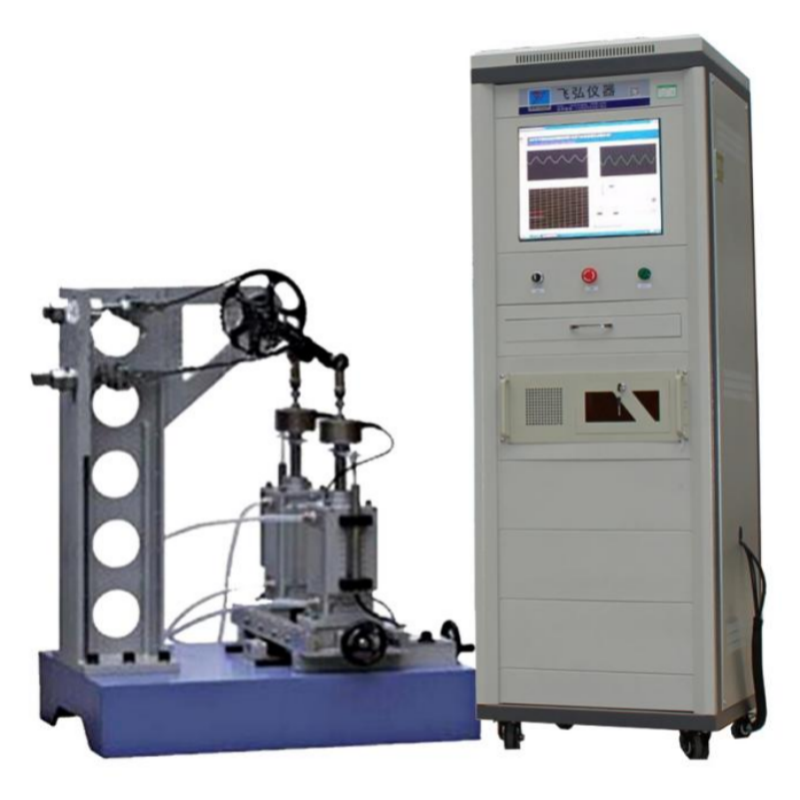

The Bicycle Crankset Fatigue Testing Machine is designed and manufactured in accordance with EN 14764:2005 and ISO 4210:2014 bicycle testing standards. It is specifically developed to evaluate the fatigue strength and durability of bicycle crank arms, chainrings, and crankset assemblies.
The machine applies cyclic loads at the left and right pedal spindle positions through a servo-driven electric actuator, accurately simulating the repetitive pedaling forces experienced during actual riding. After a preset number of loading cycles, the crankset assembly can be inspected for fatigue damage, structural integrity, deformation, and wear, helping manufacturers verify product durability and compliance with international standards.
This equipment is widely used by bicycle manufacturers, crankset suppliers, testing laboratories, certification bodies, and R&D centers for product development, quality assurance, and compliance testing.
Key Features
Designed in accordance with EN 14764:2005 and ISO 4210:2014
Servo-driven electric actuator for precise load control
Sinusoidal loading waveform simulates real riding conditions
Suitable for long-term fatigue life testing
User-friendly software interface for easy operation
Real-time display of force, frequency, and test cycles
Programmable test parameters with data storage capability
Applicable to various bicycle cranksets and chainring assemblies
Comprehensive data recording for quality analysis and product improvement
Test Applications
Crank Arm Fatigue Test
Chainring Fatigue Test
Crankset Assembly Durability Test
Pedaling Load Simulation Test
Fatigue Life Verification
Product Development and Quality Validation
Technical Specifications
Item | Specification |
Applicable Standards | EN 14764:2005, ISO 4210:2014 |
Load Capacity | 500 kgf |
Test Accuracy | ±0.5% |
Electric Actuator Stroke | 150 mm |
Drive System | Servo-Controlled Electric Actuator |
Control Software | Feihong Control System |
Test Frequency | 1 – 5 Hz |
Loading Waveform | Sinusoidal Wave |
Main Machine Dimensions | 1950 × 450 × 900 mm |
Control Cabinet Dimensions | 600 × 610 × 1810 mm |
Machine Weight | Approx. 160 kg |
Power Supply | AC 220V, 15A |
Applications
Bicycle Manufacturers
Crankset and Chainring Manufacturers
E-Bike Component Suppliers
Third-Party Testing Laboratories
Quality Inspection Organizations
Universities and Research Institutes
Product Certification Centers
Advantages
Realistic Pedaling Force Simulation
The servo actuator applies cyclic loads that closely replicate the alternating pedaling forces generated during actual bicycle riding, providing highly reliable fatigue testing results.
High-Precision Closed-Loop Control
The advanced servo control system ensures accurate regulation of force, displacement, and frequency, improving test repeatability and measurement reliability.
Compliance with International Standards
Designed according to ISO 4210 and EN 14764 requirements, making it suitable for product certification, quality assurance, and export compliance testing.
Enhanced Product Reliability
Helps manufacturers identify potential design weaknesses and improve the durability, safety, and service life of cranksets and drivetrain components.
FAQ
Q1: What products can be tested with this machine?
A: The machine is designed for fatigue testing of bicycle crank arms, chainrings, crankset assemblies, and related drivetrain components.
Q2: Which standards does the machine comply with?
A: It is designed in accordance with EN 14764:2005 and ISO 4210:2014 bicycle testing standards.
Q3: What loading method is used?
A: The machine utilizes a servo-controlled electric actuator to apply sinusoidal cyclic loads that simulate real pedaling conditions.
Q4: What is the adjustable test frequency range?
A: The test frequency can be adjusted from 1 Hz to 5 Hz.
Q5: Can this machine be used for e-bike crankset testing?
A: Yes. It is suitable for both conventional bicycle cranksets and e-bike drivetrain component fatigue testing.
