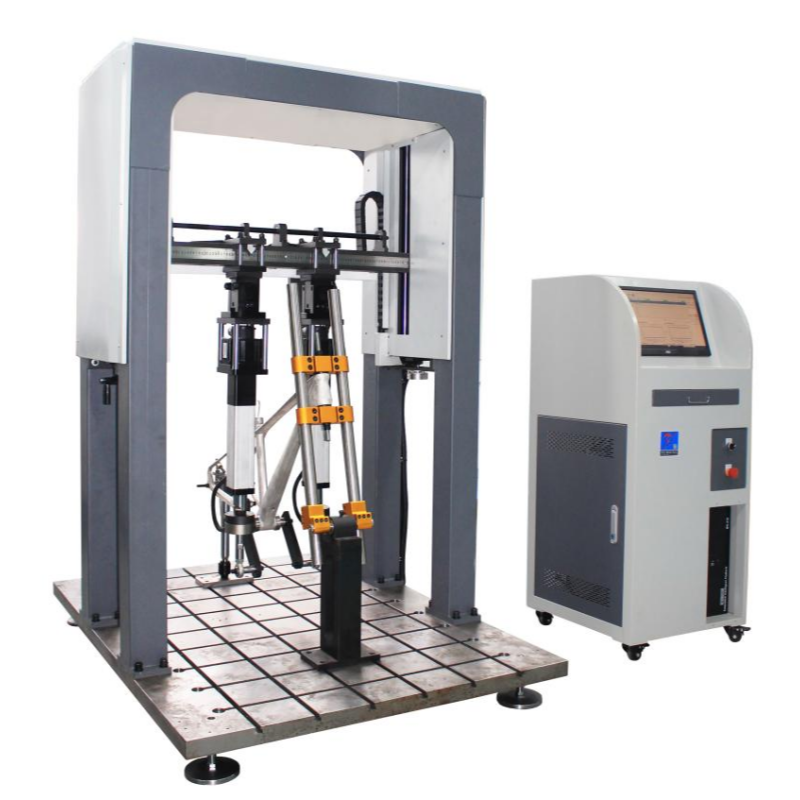

Bicycle Frame Dynamic Tread Fatigue Testing Machine

Overview

Bicycle frames are subject to constant, repetitive loading throughout their service life — every pedal stroke, every pothole, every gear change transmits cyclical stress into the frame structure. A frame that looks structurally sound under static inspection can still fail catastrophically after months of real-world riding if it hasn't been validated against dynamic fatigue loading. This is exactly the gap that our Bicycle Frame Dynamic Tread Fatigue Testing Machine is designed to close.

This machine simulates the repeated pedaling force a frame experiences during normal use, applying a controlled, sinusoidal force cycle through the bottom bracket / pedal area while monitoring the frame's structural response in real time. It is built to comply with the major international bicycle safety standards currently in force, making it suitable for manufacturers, testing labs, and certification bodies that need to validate frames for export to multiple regulatory markets simultaneously.

Standards Compliance — What Each Standard Requires

One of the most important things to understand when selecting a frame fatigue tester is that "fatigue testing" is not a single uniform procedure — each standard specifies its own loading method, cycle count, force magnitude, and pass/fail criteria. Below is a breakdown of how this machine addresses the standards it's designed for:

ISO 4210-6.4.3 (Pedaling Force Fatigue Test)
ISO 4210 is the most widely referenced international bicycle safety standard, and section 6.4.3 specifically addresses pedal force fatigue testing for the frame. It requires applying a cyclic vertical force through the pedal/crank system for a specified number of cycles without crack initiation or structural failure. This machine's force full closed-loop control system and sine waveform output are specifically configured to meet this test method's loading profile.

EN 15194 (Electric Power Assisted Cycles)
EN 15194 governs e-bikes, which carry additional structural stress considerations due to motor weight, battery mounting points, and higher torque transmission compared to standard bicycles. Frame fatigue testing under EN 15194 needs to account for these added load paths, and the adjustable force parameters and extended travel range (150mm, ±75mm) on this machine allow it to accommodate the different frame geometries and mounting configurations found on e-bikes.

EN 14781 (Racing Bicycles)
Racing bicycle frames are typically lighter-weight and built with thinner-walled tubing or carbon composite structures to minimize weight, which makes fatigue performance especially critical — a frame that's too light without adequate fatigue strength is a serious safety risk. EN 14781 testing validates that weight-optimized frames still meet minimum fatigue life requirements.

EN 14766 (Mountain Bicycles)
Mountain bikes are exposed to higher-impact, irregular loading from off-road terrain. EN 14766 fatigue requirements reflect this harsher use case, generally requiring higher force levels or different cycle profiles compared to standard urban bicycle testing.

EN 14764 (Urban and Trekking Bicycles)
This standard covers everyday city and trekking bicycles, with fatigue requirements calibrated to typical urban riding conditions — frequent stop-start riding, curb impacts, and commuter-level daily mileage.

Multi-Country Standard Compatibility
Because export-oriented manufacturers often need to certify the same frame design against multiple national standards, this machine is designed with the flexibility to run test protocols aligned with CNS (Taiwan), JIS (Japan), DIN (Germany), NF (France), ISO (International), CPSC (USA), CSA (Canada), AS (Australia), and BS (UK) — covering 9 major regulatory markets from a single piece of equipment. This significantly reduces the need to purchase separate testing machines for each export destination.

How the Machine Works

The testing process is built around a force full closed-loop control system, meaning the machine continuously measures the actual force being applied to the frame and adjusts in real time to keep it matched to the programmed target — rather than just running an open-loop motion profile and hoping the resulting force is correct. This is critical for fatigue testing accuracy, since even small deviations in applied force can significantly affect the test's validity.

Loading mechanism: An electric cylinder with servo control drives the load application, providing precise, repeatable motion over a travel range of 150mm (±75mm) from the center position — enough range to accommodate a wide variety of frame sizes and pedal/crank positions.

Force measurement: Two disc-type sensors, each rated at 5000N, capture the applied force with a load cell resolution of 1/10000, ensuring that even subtle force variations are accurately recorded throughout the test.

Data acquisition: A high-speed acquisition card captures force data at a frequency greater than 200kHz, which allows the system to detect fast transient events — such as the exact moment a crack initiates or a structural failure occurs — that lower-speed systems might miss entirely.

Waveform: The applied force follows a sine wave pattern, which is the standard loading profile specified across ISO 4210 and the EN bicycle standards, ensuring the cyclic stress pattern matches what these standards require.

Test cycle count: The control system supports anywhere from 0 to 999,999 cycles, configurable to match whatever cycle count the relevant standard specifies — some standards call for 50,000 cycles, others significantly more, depending on bicycle category and load level.

Automatic stop function: The machine automatically halts the test under two conditions — when the applied force fails to reach its programmed target value, or when the test sample fails structurally. This protects the equipment, ensures the test result is recorded at the precise moment of failure (important for crack-onset documentation), and avoids wasted test cycles on a sample that has already failed.

Control and reporting: Feihong's proprietary control software runs entirely from a computer interface, supporting multiple control modes — displacement control, force control, time-based control, and others — so the same machine can be reconfigured for different testing protocols without hardware changes. Once a test completes, results are automatically saved and compiled into a report, reducing manual data processing time for QC and certification teams.

Optional Test Fixtures — One Machine, Multiple Test Applications

A major advantage of this platform is its modularity. Rather than purchasing separate machines for each bicycle component test, the base machine can be configured with interchangeable fixtures:

1. Frame tread fatigue fixture — for the core pedal-force fatigue test (ISO 4210-6.4.3 and equivalent standards)

2. Front fork bending dynamic fixture — for fatigue testing the front fork under cyclic bending load

3. Handlebar fatigue fixture — for validating handlebar structural durability under repeated steering and load stress

4. Saddle fatigue fixture — for testing saddle and seat post assembly fatigue life

This means a single machine investment can cover frame, fork, handlebar, and saddle fatigue testing — a significant cost and floor-space advantage for labs and manufacturers running a full QC testing program.

Technical Specifications Summary

Who This Machine Is For

• Bicycle and e-bike manufacturers needing in-house fatigue validation before mass production or export certification

• Third-party testing and certification labs serving multiple export markets and standards simultaneously

• Component suppliers (forks, handlebars, saddles) needing to validate fatigue performance independently of complete-bicycle testing

• Quality control departments needing a reliable, repeatable testing process integrated into their production QC workflow

Frequently Asked Questions (FAQ)

Q1: Can this single machine test according to all the standards listed (ISO 4210, EN 15194, EN 14781, EN 14766, EN 14764, CNS, JIS, DIN, NF, CPSC, CSA, AS, BS)?
Yes. The machine's control software allows the test parameters — force level, cycle count, frequency, and waveform — to be programmed according to whichever specific standard you're testing against. Since these standards differ mainly in their force levels and cycle count requirements rather than fundamental test methodology, the same hardware platform can run protocols for all of them.

Q2: What's the difference between testing under ISO 4210 versus EN 15194 for the same frame design?
EN 15194 testing needs to account for the additional loads introduced by motor and battery components on e-bikes, which may require different force levels or additional load points compared to a standard ISO 4210 pedal-force test on a non-assisted bicycle frame. We can help configure test parameters based on your specific frame design and the standard's requirements.

Q3: How long does a complete fatigue test cycle take?
This depends on the cycle count required by the relevant standard and the test frequency selected (0–5Hz). At the maximum 5Hz frequency, higher cycle counts can be completed in a shorter time, but actual frequency selection should follow what the applicable standard specifies — running faster than the standard allows can affect test validity.

Q4: What happens when the frame sample fails during testing?
The automatic stop function halts the test immediately when the applied force can no longer reach the programmed target (an indicator that the sample has deformed or cracked) or when sample failure is otherwise detected. The system records the cycle count and force data at the point of failure, which becomes part of the automatically generated test report.

Q5: Can I test forks, handlebars, and saddles on the same machine, or do I need separate equipment?
The base machine can be used for all of these with the appropriate optional fixture: the front fork bending dynamic fixture, handlebar fatigue fixture, or saddle fatigue fixture. This significantly reduces the total equipment investment compared to buying dedicated machines for each component.

Q6: What does "force full closed-loop control" mean, and why does it matter?
It means the machine continuously measures the actual force being applied via the load sensors and adjusts the electric cylinder's drive output in real time to keep the force matched to the target profile. This is more accurate than open-loop systems, which only control motion/displacement and assume the resulting force is correct — closed-loop force control is generally required for standards-compliant fatigue testing.

Q7: What is the load cell resolution and why is it important?
The load cell resolution is 1/10000, meaning the sensor can detect force changes at a very fine level of precision. High resolution is important for fatigue testing because it allows the system to detect small but meaningful changes in frame stiffness or load response that can indicate the onset of structural fatigue before complete failure occurs.

Q8: Does the machine generate test reports automatically, or do we need separate software?
Test results are automatically saved by the control software, and reports are generated directly from the recorded data — no separate reporting software is needed. This streamlines documentation for internal QC records or for submission to certification bodies.

Q9: What power supply and installation requirements does this machine need?
The machine requires AC220V power at 15A. Given its size (test machine: 1700×1300×2400mm; control cabinet: 600×600×1800mm) and weight (~400kg), customers should plan for adequate floor space and a stable, level mounting surface during installation.

Q10: Can the machine be customized for force capacities or travel distances different from the standard specification?
Customization options may be available depending on testing requirements — for example, different sensor capacities or travel ranges to accommodate unusual frame geometries. Please share your specific frame dimensions and target standard with us so we can advise on whether the standard configuration is suitable or if adjustments are needed.

Q11: How do we determine which test fixtures we need for our certification requirements?
This depends on which standards you're certifying against and which components require independent testing. If you let us know your target markets (e.g., EU, US, Japan) and bicycle category (e-bike, racing, mountain, urban), we can recommend the appropriate fixture combination and test parameters.

Q12: What is the typical lead time for this machine, and what information do you need to provide a quote?
Lead time depends on configuration and fixture requirements. To provide an accurate quote, we typically need: target testing standards, bicycle/component types to be tested, required fixture combination, and your expected testing volume or throughput needs.
