Motorcycle performance is the result of many systems working together: the frame, wheels, tires, brakes, motor or engine, battery, controller, suspension and vehicle software. A problem in any one of these areas can affect safety, range, handling or product consistency. For manufacturers, road testing alone is not enough. Laboratory motorcycle testing equipment creates repeatable conditions, records objective data and helps engineers find weaknesses before a vehicle reaches the customer.
This article explains eight important tests used for conventional and electric motorcycles, with a special focus on electric two-wheelers and automated quality control.
Why Motorcycle Testing Equipment Matters
Road tests are valuable because they show how a motorcycle behaves in the real world. However, traffic, weather, road surface and rider behavior change from one test to the next. A laboratory test bench controls these variables. Engineers can apply the same speed, torque, load, gradient or cycle to several prototypes and compare the results directly.
Good testing equipment also improves traceability. Test recipes, sensor readings, performance curves and pass/fail limits can be saved with the vehicle identification. This creates useful records for development reviews, supplier qualification, production audits and after-sales analysis.
1. Chassis Dynamometer Performance Testing

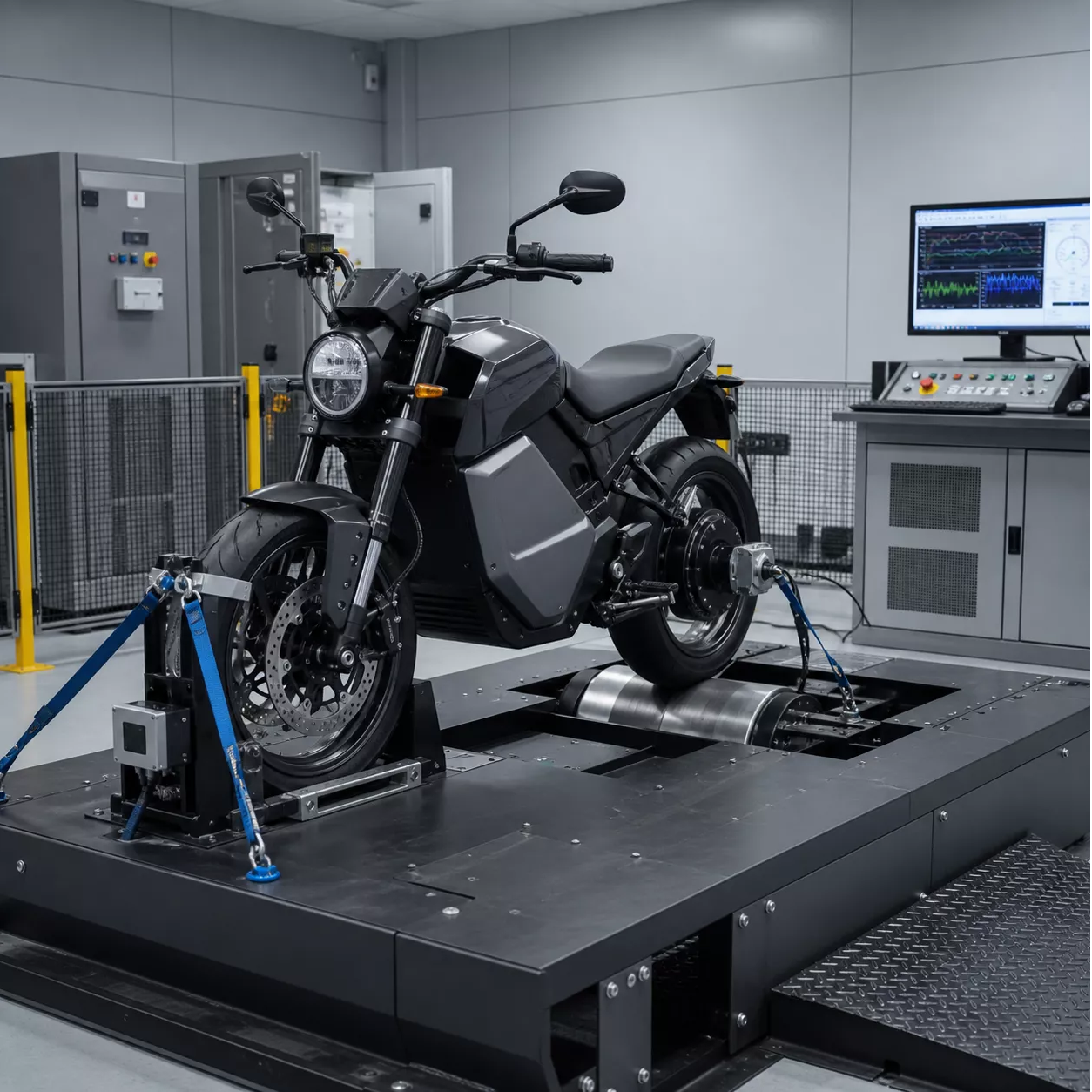

A motorcycle chassis dynamometer supports the complete vehicle while the driven wheel runs on a roller. A loading system applies controlled resistance, and sensors measure wheel speed and torque. When voltage and current are measured on an electric motorcycle, the software can also calculate electrical input power, mechanical output power and powertrain efficiency.
Typical dynamometer tests include maximum speed, steady-speed operation, torque and power curves, controller response and road-load simulation. Because the vehicle remains fixed in the laboratory, engineers can monitor it closely and repeat the same test program safely.
2. Acceleration and Climbing Ability Testing
Acceleration is not determined only by peak motor power. Vehicle mass, controller calibration, battery voltage sag, tire behavior and transmission efficiency all influence the result. A programmed acceleration test records how quickly the motorcycle moves between defined speed points and shows whether performance is consistent across repeated runs.
Climbing tests are performed by applying an equivalent roller resistance for a selected vehicle mass and gradient. Engineers can check whether the motorcycle maintains its target speed, how much current it requires and whether the motor or controller approaches a thermal or current limit.
3. Range and Energy Consumption Testing
Range is one of the most important purchasing criteria for an electric motorcycle. A repeatable laboratory drive cycle provides a better engineering comparison than an uncontrolled road trip. The test system records distance, speed, voltage, current, power and accumulated energy while applying a defined road load.
For reliable comparison, the battery state of charge, ambient temperature, tire pressure, vehicle mass and drive cycle must be controlled. The result can be expressed as total range, energy consumption per distance and battery energy delivered during the test. Engineers can then compare battery packs, controller strategies, tires and vehicle configurations.
4. Motor, Controller and Thermal Performance
An electric motorcycle powertrain must deliver torque efficiently without exceeding safe temperatures. During a loaded dynamometer test, engineers can monitor motor speed, wheel torque, input power and output power across the operating range. Optional temperature sensors can be added to the motor, controller and battery.
Efficiency maps help identify operating points where energy losses are high. Thermal monitoring reveals whether repeated acceleration, climbing or high-speed operation causes excessive heating. This information supports cooling design, software calibration and component selection.
5. Battery Pack Performance and Protection Testing
The battery pack influences range, power, charging behavior and vehicle safety. Battery testing may include charge and discharge capacity, voltage consistency, current response, temperature rise, cycle life and protection-system behavior.
At the vehicle level, the battery can also be tested during a programmed road-load cycle. This shows how it behaves under realistic changes in speed and load. Engineers should confirm that the battery management system reacts correctly to over-current, low-voltage and temperature limits. Battery testing must be performed with appropriate electrical protection, ventilation and emergency procedures.
6. Braking and Deceleration Testing
Braking performance should be evaluated in a controlled and measurable way. Depending on the test platform, engineers can record deceleration, stopping response, brake force, wheel speed and regenerative-braking behavior.
For electric motorcycles, mechanical brakes and regenerative braking may work together. Testing helps verify that the transition is smooth and that braking remains predictable at different speeds, loads and battery states. Repeated cycles can also reveal brake fade, heat buildup or inconsistent control behavior.
7. Wheel, Rim and Tire-Related Testing
The wheel assembly transfers driving, cornering and braking forces to the road. Important checks may include wheel and hub durability, radial or lateral runout, impact resistance and bearing performance.
For tubeless motorcycle rims, airtightness is especially important. A wheel rim airtightness testing machine seals the rim, introduces controlled air pressure and detects leakage. Finding porosity, weld defects or sealing problems before tire assembly prevents slow pressure loss and improves production quality.
8. Durability and End-of-Line Quality Control
A motorcycle that passes one performance test may still develop problems after repeated use. Durability testing applies cycles of load, speed, vibration, impact or operation to identify fatigue and wear. Test plans may cover the frame, suspension, wheel, drive system, control switches and other assemblies.
At the end of the production line, manufacturers usually need a shorter and faster inspection. An automated end-of-line test can verify basic operation, speed response, voltage, current, braking signals, communication and other critical limits. Results are stored automatically, making it easier to trace every vehicle or batch.
How to Plan a Motorcycle Test Program
Start with the engineering question rather than the machine specification. A development team comparing powertrains needs detailed curves and flexible test cycles. A factory screening every vehicle needs fast automation, simple fixtures and clear pass/fail results.
Before selecting equipment, prepare the following information:
• Vehicle type and intended application
• Maximum speed and total test mass
• Wheel diameter and driven-wheel arrangement
• Rated and peak motor power
• Expected wheel torque
• Battery voltage and maximum current
• Required test cycles and standards
• Required sensor channels and accuracy
• Report format, data export and factory-system connection
• Laboratory space, power supply and safety requirements
The equipment supplier can then size the roller, load motor, torque sensor, fixture and electrical measurement system correctly. A modular design is useful when several models or vehicle types will share one platform.
Repeatability, Calibration and Safety
Reliable test results require more than a powerful machine. Sensors should be calibrated, fixtures should hold the vehicle consistently and the test recipe should be controlled. Tire pressure, battery condition and warm-up procedure must be documented. Operators should use the same preparation steps for every sample.
Safety interlocks are essential. Overspeed, over-torque, over-current and over-temperature limits should stop the test automatically. The vehicle must be secured against lateral movement, and rotating parts should be protected by guards or barriers. Emergency-stop devices must be easy to reach.
Choosing Between Standard and Custom Testing Equipment
Standard equipment is suitable when the vehicle, test method and capacity match a common application. Custom equipment is often needed for unusual wheel sizes, very high speed or torque, multi-vehicle fixtures, special communication protocols, proprietary drive cycles or automated production integration.
A useful supplier should ask for the vehicle envelope and test objective before recommending a configuration. The goal is not simply to buy the largest possible system. The goal is to obtain safe, repeatable and traceable data at the required speed and accuracy.
Feihong Motorcycle Testing Solutions
Feihong develops test systems for electric motorcycles, e-bikes and other electric two-wheelers. Solutions include chassis dynamometers for speed, torque, climbing, range and energy-consumption testing, battery pack performance systems, and wheel rim airtightness equipment.
Learn more about the electric motorcycle and unicycle chassis dynamometer:
https://www.fh-machine.com/Electric-Motorcycle-Unicycle-Test-Bench-pd598438048.html
Explore the electric motorcycle and e-bike 2-in-1 chassis dynamometer:
View motorcycle and automotive wheel rim airtightness testing equipment:
When requesting a proposal, send Feihong your vehicle speed, weight, wheel size, motor power, wheel torque, battery voltage/current and required test methods. The engineering team can recommend a suitable testing configuration for R&D, validation or production quality control.
