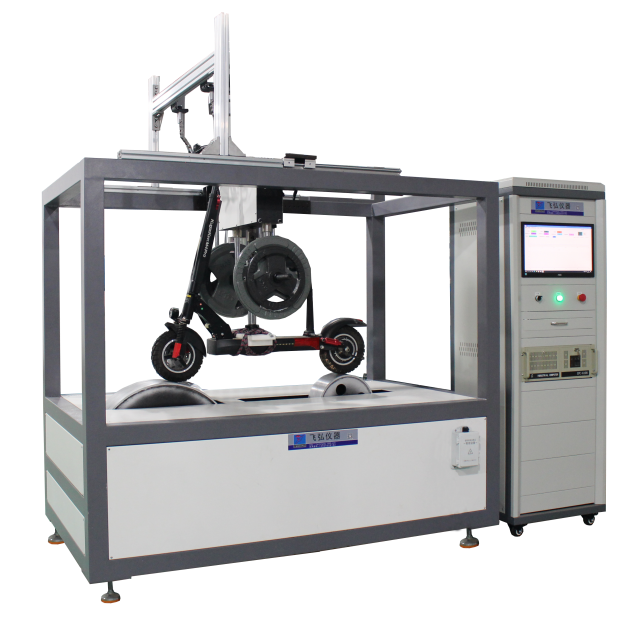

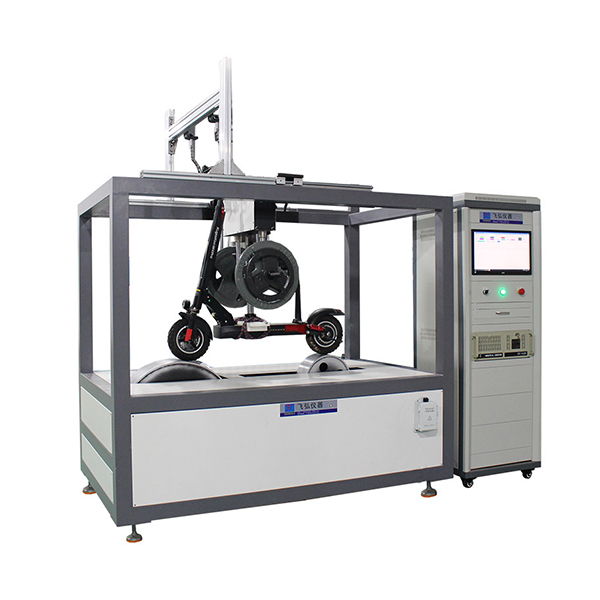

Scooter Dynamic Durability Tester
Scope of Application:
Used to simulate “dynamic testing,” “long-distance riding tests,” and “static load tests” for scooters. Designed to evaluate the road durability and fatigue performance of scooters and kick scooters, as well as the abrasion resistance of roller skate wheels.
Reference Standards:
EN 14619:2004(E), GB/T 20096-2006(5.14), CNS6263-11, etc.
Technical Specifications:
1. Simulates human weight testing using weight loads applied to the handlebars, seat, footrests, and cargo rack;
2. Simulated riding condition tests can be conducted separately for flat road and obstacle tests;
3. Power measurement: Can detect the scooter’s voltage and current to calculate power;
4. Capable of conducting electric scooter range tests;
5. Adjustable roller distance, suitable for different vehicle sizes;
6. Computer-controlled system automatically generates test reports;
7. Roller diameter: 700 mm
8. Roller speed: 0.5 m/s ±5%
9. Load: Adjustable from 20 to 100 kg
10. Test duration: 1 min to 9999 h
11. Control system: PLC + industrial PC
12. Measurement accuracy: Speed ±0.1 km/h, load ±0.1 kg
13. Power source: Motor control system
14. Software Interface: Feihong Control System
15. Approximate Equipment Dimensions: 2150 x 1300 x 2450 mm
16. Control Cabinet: 600 x 600 x 1830 mm
