Product Overview

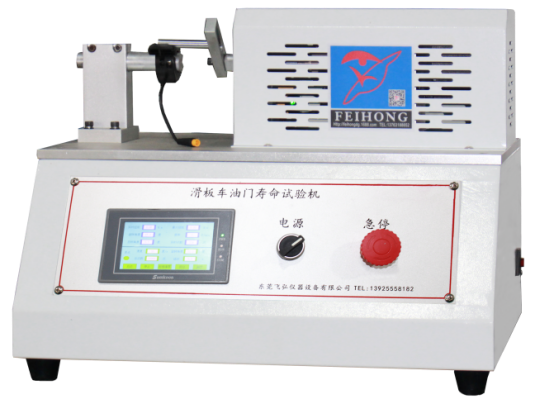

The E-Scooter Throttle Life Cycle Tester is designed to evaluate the durability, reliability, and operational performance of electric scooter throttle assemblies under repeated actuation conditions.
The system uses a precision stepper motor to simulate continuous throttle operation by repeatedly rotating the throttle grip through programmed angles, speeds, torque levels, and dwell times. The tester helps manufacturers verify the long-term performance of throttle mechanisms, Hall-effect sensors, return springs, electronic control signals, and mechanical structures.
This equipment is widely used by electric scooter manufacturers, component suppliers, R&D laboratories, and quality assurance departments for product validation and life cycle testing.
Testing Purpose
The throttle is one of the most frequently used control components on an electric scooter.
During daily riding, riders repeatedly:
Accelerate
Decelerate
Maintain cruising speed
Release the throttle
Over thousands of operating cycles, component wear may occur, including:
Return spring fatigue
Hall sensor degradation
Signal instability
Mechanical looseness
Wiring failure
The E-Scooter Throttle Life Cycle Tester accelerates these usage conditions in a laboratory environment, allowing engineers to identify potential failures before products enter mass production.
Testing Functions and Testing Logic
1. Throttle Life Cycle Test
Test Objective
To evaluate the long-term durability of throttle assemblies under repeated operation.
Testing Logic
The tester continuously rotates the throttle through a specified angle and cycle count, reproducing years of rider operation within a shortened testing period.
This accelerated testing method helps determine expected service life and reliability.
Typical Failure Modes Detected
Mechanical wear
Housing damage
Shaft looseness
Structural fatigue
2. Hall Sensor Reliability Verification
Test Objective
To verify the stability of throttle output signals over extended operating cycles.
Testing Logic
Most modern electric scooters use Hall-effect sensors to convert throttle position into electrical signals.
Repeated cycling can reveal:
Evaluation Parameters
Signal consistency
Voltage output stability
Repeatability
Sensor response accuracy
3. Return Spring Fatigue Test
Test Objective
To evaluate spring durability and return performance.
Testing Logic
Each throttle cycle places stress on the internal return spring.
Over time, fatigue may cause slower return speed or incomplete reset.
The tester continuously evaluates spring performance throughout the test process.
Evaluation Parameters
Test Objective
To evaluate operating torque and mechanical resistance.
Testing Logic
Throttle torque directly affects riding comfort and control feel.
The tester applies and measures torque throughout the test cycle to verify whether the throttle remains within specification.
Evaluation Parameters
5. Dwell Time Simulation
Test Objective
To simulate real riding behavior.
Testing Logic
Riders often maintain a fixed throttle position while cruising.
The dwell-time function allows the throttle to remain at specified positions for programmable durations, reproducing realistic operating conditions.
Applications
Key Features
Precision Stepper Motor Drive
Programmable Test Parameters
Adjustable:
Rotation angle
Test speed
Torque
Dwell time
Cycle count
Accelerated Life Testing
Simulates long-term rider usage
Improves reliability verification efficiency
Reduces product development cycles
Compact Laboratory Design
Technical Specifications
Item | Specification |
Drive System | Stepper Motor |
Rotation Angle | 0°–360° Adjustable |
Torque Range | 0–10 N·m |
Torque Accuracy | ±0.5% FS |
Test Speed | 0–40 Cycles/Min |
Dwell Time | 0–999 s |
Torque Hold Time | 0–999 s |
Cycle Counter | 1–999,999 Cycles |
Machine Dimensions | 580 × 400 × 400 mm |
Machine Weight | 35 kg |
Power Supply | AC220V / 50Hz |
Power Consumption | 1000 W |
FAQ
Why is throttle life cycle testing important?
The throttle is one of the highest-use components on an electric scooter. Life cycle testing verifies that the throttle can maintain consistent performance throughout its intended service life.
Why test Hall sensor reliability during throttle durability testing?
Most electric scooter throttles use Hall-effect sensors to generate acceleration signals. Even if the mechanical structure remains intact, sensor degradation can lead to inaccurate speed control or unexpected performance issues.
What is the purpose of dwell time during testing?
Dwell time simulates real riding situations where the rider maintains a constant throttle position for an extended period. This helps evaluate signal stability and component durability under continuous load.
Why monitor operating torque?
Changes in operating torque can indicate internal wear, spring degradation, contamination, or mechanical damage. Torque monitoring helps identify failures before complete malfunction occurs.
How many test cycles should a throttle undergo?
The required cycle count depends on customer specifications, product positioning, and reliability targets. Many manufacturers perform hundreds of thousands of cycles to simulate years of real-world operation.
To build a complete electric scooter control-system testing laboratory, this machine is commonly paired with:
Brake Lever Life Cycle Tester
Folding Mechanism Fatigue Testing Machine
Handlebar Fatigue Testing Machine
Switch Button Life Tester
Controller Performance Testing System
Motor Durability Test Bench
Battery Performance Testing System
Complete Vehicle Dynamic Durability Tester
Together, these systems provide comprehensive validation of electric scooter durability, reliability, safety, and product quality.
