Product Overview

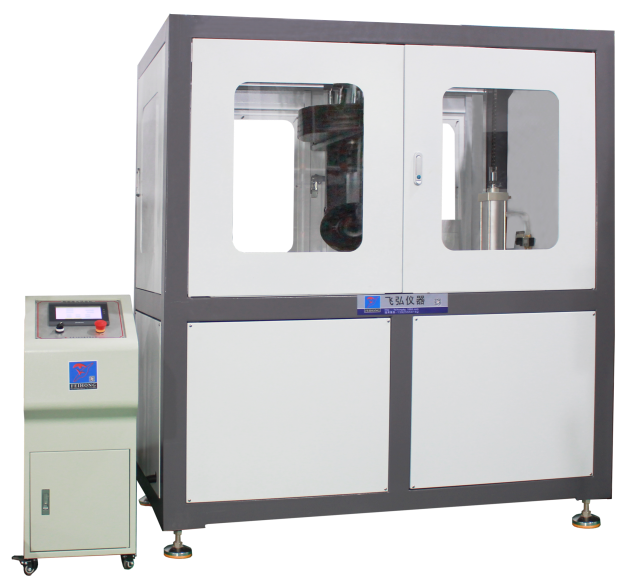

The Electric Scooter Tire Road Condition Testing Machine is designed to evaluate the dynamic durability, wear resistance, and safety performance of wheels used on electric scooters, kick scooters, inline skates, and similar mobility products.
The machine reproduces real-world riding conditions through a large-diameter steel drum equipped with standard obstacle blocks. By applying controlled loads, speeds, and test durations, manufacturers can assess wheel reliability, tire wear characteristics, bearing durability, and overall rolling performance under repeated obstacle impacts.
The equipment is widely used in product development, quality control, certification testing, and reliability verification programs.
Testing Purpose
In real-world operation, scooter wheels repeatedly encounter:
Sidewalk joints
Road cracks
Small curbs
Rough pavement
Uneven surfaces
These impacts create cyclic stress on:
Tires
Wheels
Bearings
Axles
Fork assemblies
Road condition testing accelerates these conditions in a laboratory environment to identify potential failures before products reach the market.
Reference Standards
The machine is designed to accommodate obstacle dimensions, loads, speeds, and test durations required by various scooter and wheel durability standards.
Typical applications include:
Electric Scooter Internal Reliability Testing
Product Durability Validation Programs
Wheel Endurance Testing
OEM Quality Verification Procedures
Certification Preparation Testing
Obstacle dimensions can be customized according to customer-specified standards and test requirements.
Testing Functions and Testing Logic
1. Wheel Dynamic Durability Test
Test Objective
To evaluate the long-term durability of scooter wheels under repeated rolling conditions.
Testing Logic
The wheel rotates continuously against the steel drum while carrying a specified load.
This simulates thousands or even millions of wheel revolutions that would occur during actual riding.
Typical Failures Detected
Wheel cracking
Hub deformation
Tire wear
Bearing failure
Axle damage
2. Obstacle Impact Fatigue Test
Test Objective
To evaluate wheel resistance against repeated impacts.
Testing Logic
Obstacle blocks mounted on the drum periodically strike the wheel during operation.
This reproduces repeated encounters with road irregularities and accelerates fatigue accumulation.
Typical Failures Detected
3. Tire Wear Evaluation
Test Objective
To analyze tread wear and service life.
Testing Logic
The wheel operates continuously under controlled speed and load conditions.
After testing, engineers can compare tire wear patterns and material durability.
Evaluation Items
Wear rate
Surface damage
Material degradation
Tire lifespan
4. Bearing Reliability Test
Test Objective
To verify bearing durability under dynamic loading.
Testing Logic
Repeated wheel rotation combined with obstacle impacts subjects bearings to realistic service conditions.
The test helps evaluate:
5. Load Capacity Verification
Test Objective
To verify wheel performance under different rider weights.
Testing Logic
Adjustable loads from 20 kg to 100 kg are applied during testing.
This allows engineers to compare performance under different operating conditions and identify load-related weaknesses.
Key Features
Standardized Road Simulation
Adjustable Test Parameters
Accelerated Durability Evaluation
Simulates long-term riding conditions
Reduces product development cycle
Improves reliability assessment efficiency
Heavy-Duty Industrial Design
High-rigidity steel structure
Stable operation during long-duration testing
Suitable for laboratory and production environments
Technical Specifications
Item | Specification |
Drum Diameter | Φ700 mm |
Drum Material | Steel |
Obstacle Type | Trapezoidal Steel Block |
Drum Speed | 0.5 m/s ±5% |
Load Range | 20–100 kg |
Test Duration | 1 Minute – 99 Hours 59 Minutes |
Test Bench Size | 1700 × 880 × 2050 mm |
Control Cabinet Size | 370 × 350 × 910 mm |
Machine Weight | Approx. 1450 kg |
Power Supply | AC220V / 15A |
Installed Power | 4 kW |
FAQ
Why is road condition testing necessary when wheel strength has already been verified?
Static strength testing evaluates maximum load capacity, while road condition testing evaluates durability under repeated impacts and cyclic loading. Most wheel failures occur due to fatigue accumulation rather than a single overload event.
Why are obstacle blocks installed on the drum?
Obstacle blocks reproduce the repeated impacts experienced during actual riding over rough surfaces. These impacts accelerate fatigue development and reveal weaknesses that may not be detected during smooth rolling tests.
What components can be evaluated using this machine?
The system can evaluate:
How is the load selected during testing?
The load is chosen based on the intended rider weight and product category. Different loads help manufacturers evaluate wheel performance under realistic operating conditions and safety margins.
What is the main difference between wheel fatigue testing and road simulation testing?
Wheel fatigue testing often focuses on a specific component under controlled cyclic loading. Road simulation testing reproduces a combination of rolling, impact, vibration, and load conditions, providing a more realistic assessment of overall wheel reliability.
