FH-HB3312
Feihong
The folding joint is where most scooters fail. This machine finds out when.
Cyclic handlebar and deck loads applied simultaneously through FESTO pneumatic cylinders accumulate the fatigue stress at a scooter's folding mechanism that real-world use builds over months — then stops the moment the joint deforms beyond limit. The FH-HB3312 applies 500–1,500N at the handlebar (angled downward, closed-loop) and 2,000–3,500N at the deck (vertical, closed-loop) with independent force control on each axis, at up to 5Hz, for up to 999,999 cycles — with automatic database logging of every result and FESTO-branded pneumatics throughout.
Quick Specs
Handlebar load: 500–1,500N (angled downward, force closed-loop)
Deck load: 2,000–3,500N (downward, force closed-loop)
Sensors: 2 × 5kN disc-type (handlebar) + 1 × 1kN disc-type (deck)
Load cell resolution: 1/1,000
Force control accuracy: ±5% (dynamic)
Test frequency: 0–5Hz
Test cycles: 0–999,999 (freely settable)
Actuation: Pneumatic — FESTO (Germany)
Handlebar cylinders: 2 × Φ80×100mm
Deck cylinder: 1 × Φ125×100mm
Air supply: 0.7MPa, 400L/min
Power: AC 220V, 5A
Why the Folding Mechanism Is the Critical Fatigue Location in Kick Scooters

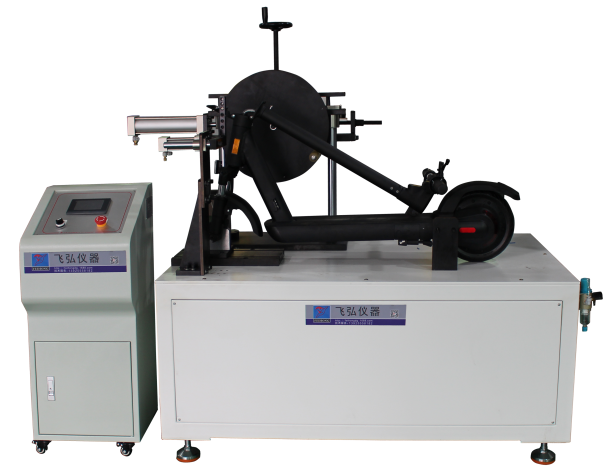

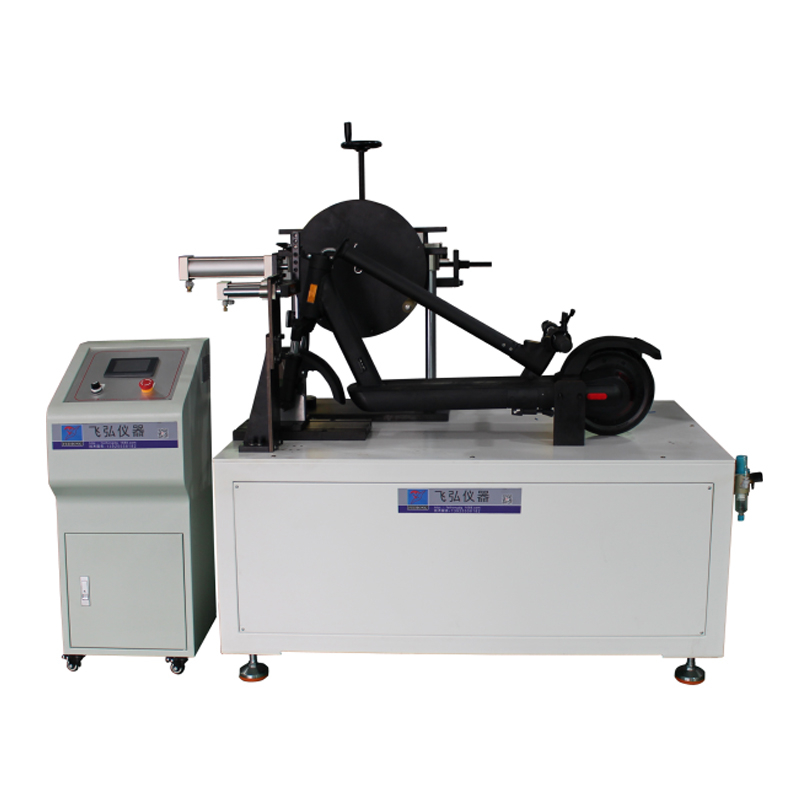

Overview of the FH-HB3312 Test Machine
Standards and Regulatory Context
Main Test Functions and Load Conditions
Design Features of the FH-HB3312
Technical Specifications
How the FH-HB3312 Testing Process Works
Benefits for Scooter Manufacturers and Testing Labs
Choosing the Right Scooter Folding Fatigue Tester
Real-World Application Scenarios
FAQs for the FH-HB3312
Related Testing Equipment
Get a Quote from Feihong Machine
A folding scooter's geometry creates a structural challenge that non-folding designs do not have: the stem and deck must connect through a joint that is both strong enough to carry full rider load and flexible enough to fold reliably on demand. The folding mechanism is simultaneously the point of highest bending stress in the scooter's structure and the point where manufacturing tolerances, surface finish, and assembly consistency most directly affect fatigue life.
In service, the folding joint experiences two recurring load types. The first is rider weight and road vibration — transmitted upward through the wheels and deck, and downward through the rider's body weight on the deck, creating an alternating bending moment at the joint every time the scooter rolls over a bump. The second is handlebar force — the rider's hands apply forward, rearward, and downward loads at the handlebar that are transmitted through the stem, past the folding joint, and into the deck and front wheel assembly. Both loads cycle at riding cadence, in phase with each other, accumulating fatigue at the joint's stress concentration features — pin holes, hinge notches, latch engagement surfaces.
A folding mechanism that meets static strength requirements can still fail in fatigue after relatively few kilometers of real-world use if its joint geometry, surface condition, or material specification is inadequate for cyclic loading. This is why EN 14619 and related standards specify a folding mechanism fatigue test as a mandatory qualification requirement — separate from static strength tests — and why dedicated test equipment that simultaneously applies handlebar and deck loads is necessary for representative testing.
The FH-HB3312 applies simultaneous cyclic loads at two points on the scooter — the handlebar and the deck — through independent FESTO pneumatic cylinder systems, accumulating fatigue at the folding joint under a combined loading condition that represents real riding.
Handlebar axis: Two Φ80×100mm FESTO pneumatic cylinders apply a cyclic force of 500–1,500N in an angled downward direction at the handlebar grips. The angled loading direction replicates the resultant force a rider's hands apply at the handlebar — not purely horizontal (steering) and not purely vertical (weight), but a combination that produces the bending moment at the stem/folding joint that is most mechanically demanding. Force is controlled in closed loop via two 5kN disc-type sensors.
Deck axis: One Φ125×100mm FESTO pneumatic cylinder applies a cyclic force of 2,000–3,500N vertically downward at the deck surface. This represents the rider's body weight — at the upper end of the range, 3,500N covers a loaded adult rider plus dynamic amplification from riding over rough surfaces. Force is controlled in closed loop via one 1kN disc-type sensor.
Both axes operate simultaneously at the same frequency (0–5Hz), producing the combined handlebar-and-deck loading that the folding joint must withstand during real riding. The test runs for the programmed cycle count (up to 999,999 cycles) or stops automatically if the specimen deforms beyond the preset limit — the automatic stop condition triggered when the cylinder stroke exceeds the configured deformation threshold, indicating structural failure or excessive joint relaxation.
EN 14619 is the primary EU standard for freestyle and urban kick scooters. It includes mandatory folding mechanism strength and endurance requirements that apply to all folding-stem scooter designs. The standard requires both static strength testing (applying defined forces and holding them) and dynamic fatigue testing (applying cyclic loads for a defined number of cycles) — the latter being the test the FH-HB3312 is designed to execute.
The dual-axis loading geometry of the FH-HB3312 — simultaneous handlebar and deck loads — matches the combined load condition that EN 14619 specifies for folding mechanism endurance, and the force ranges (500–1,500N handlebar, 2,000–3,500N deck) bracket the force values required for different scooter categories within the standard.
Both China's GB/T 20096 and Taiwan's CNS6263-11 include folding mechanism requirements for scooters aligned with the EN 14619 methodology. Manufacturers exporting to Chinese or Taiwanese markets commonly reference the FH-HB3312 for folding fatigue testing under these standards.
For EU market access under CE marking, folding scooters must demonstrate conformity to EN 14619 folding mechanism requirements. In-house folding fatigue test capability allows manufacturers to pre-qualify designs before engaging a notified body — catching failures at the development stage where correction is low-cost, rather than at formal certification where failure requires design revision, retooling, and re-submission.
The FH-HB3312's defining capability is the simultaneous application of handlebar and deck loads — not sequential, not alternating, but at the same time:
Handlebar axis (2 × Φ80mm cylinders, 5kN sensors):
Load range: 500N – 1,500N (settable)
Direction: Angled downward (replicating resultant rider hand force)
Control: Closed-loop force control
Waveform: Cyclic at programmed frequency
Deck axis (1 × Φ125mm cylinder, 1kN sensor):
Load range: 2,000N – 3,500N (settable)
Direction: Vertical downward (replicating rider body weight + dynamic amplification)
Control: Closed-loop force control
Waveform: Cyclic at programmed frequency
Running both axes simultaneously at 0–5Hz for up to 999,999 cycles accumulates the fatigue load history at the folding joint in a time-compressed, fully controlled, repeatable test environment.
When the folding joint accumulates sufficient fatigue damage or permanent deformation, the cylinder stroke required to maintain the programmed force increases beyond the preset limit. The machine detects this and stops automatically — recording the exact cycle count at failure. This provides a precise, objective failure criterion that does not depend on operator judgment: the machine either runs to the full cycle count (pass) or stops early with a logged failure cycle count (fail with data).
The 500–1,500N handlebar range and 2,000–3,500N deck range cover the force requirements for children's, adult, and heavy-duty scooter categories within EN 14619 and related standards. Switching between category force levels requires only a setpoint change in the control software — no hardware modification.
All pneumatic actuation components — cylinders, valves, regulators, and fittings — are sourced from FESTO, the German pneumatics specialist. FESTO components are specified for this machine because fatigue test equipment runs continuously for hours to days, cycling millions of times over its service life. Pneumatic component lifetime is directly determined by build quality; FESTO's rated cycle life on their industrial cylinder range is orders of magnitude higher than generic equivalents. For a machine designed to run 999,999-cycle tests repeatedly, this specification choice directly affects the machine's own maintenance interval and reliability.
A dedicated pressure-stabilizing air tank is integrated into the pneumatic circuit. Without pressure stabilization, the cyclic demand of the cylinders at 5Hz would produce pressure fluctuations in the supply line — resulting in force variation that exceeds the ±5% dynamic control accuracy specification. The stabilizing tank smooths these fluctuations, ensuring that actual applied force tracks the programmed setpoint throughout the test run, not just at the start of each cycle.
Independent closed-loop force controllers maintain the programmed load amplitude on both the handlebar and deck axes. This is essential for fatigue testing: as the folding joint softens with progressive damage, an open-loop (force-uncontrolled) system would see the force drop below the specified level — underloading the joint and producing non-conservative test results. Closed-loop control compensates automatically, maintaining the target force regardless of specimen compliance change.
Two 5kN disc-type sensors on the handlebar axis provide redundant force measurement at each handlebar cylinder — allowing the system to detect and flag asymmetric loading if the two cylinders diverge. One 1kN disc-type sensor on the deck axis measures the lower deck force range with appropriate resolution (1/1,000 of 1kN = 1N resolution). The three-sensor configuration gives full coverage of both load paths without over-ranging any sensor.
All fixture position adjustments use leadscrew mechanisms for precise, repeatable positioning — critical for consistently placing the cylinder load application points at the correct geometry relative to the folding joint. Position locks use quick-release screws rather than conventional bolts, allowing fixture reconfiguration between different scooter models without tools. This combination of precision (leadscrew) and speed (quick-release) is practical for test labs handling multiple scooter models.
Every test result — force values, cycle count, failure cycle (if applicable), deformation at stop — is automatically recorded to the database without operator intervention. Results are stored in a format suitable for analysis and can be exported as evidence for certification submissions, QC records, or customer acceptance documentation.
The electrical control system is housed in a separate, independent cabinet — physically isolated from the test bench. This separation keeps the control electronics away from the vibration and pneumatic pressure of the test area, improving longevity of the control hardware and simplifying maintenance access.
Specification | Handlebar Axis | Deck Axis |
|---|---|---|
Force range | 500–1,500N | 2,000–3,500N |
Loading direction | Angled downward | Vertically downward |
Force control | Closed-loop | Closed-loop |
Cylinders | 2 × Φ80×100mm | 1 × Φ125×100mm |
Force sensors | 2 × 5kN disc-type | 1 × 1kN disc-type |
Sensor resolution | 1/1,000 | 1/1,000 |
Dynamic accuracy | ±5% | ±5% |
Specification | Details |
|---|---|
Test frequency | 0–5Hz |
Test cycles | 0–999,999 (freely settable) |
Auto-stop condition | Cylinder stroke exceeds deformation limit |
Data logging | Automatic database recording per cycle |
Specification | Details |
|---|---|
Pneumatic component brand | FESTO (Germany) |
Air supply pressure | 0.7MPa |
Air flow requirement | 400L/min |
Pressure stabilization | Dedicated stabilizing tank |
Power supply | AC 220V, 5A |
Control cabinet | Independent, separate from test bench |
500–1,500N handlebar / 2,000–3,500N deck range covers the force spread across scooter categories in EN 14619 — from lighter children's scooter handlebar loads at the lower end to heavy-duty adult scooter deck loads at the upper end — on the same machine. The 3,500N upper deck limit corresponds to a ~360kg equivalent load, providing headroom above the heaviest standard load specification for abuse-condition testing.
Φ80mm handlebar cylinders (×2) + Φ125mm deck cylinder (×1) — cylinder bore is selected to produce the required force at the 0.7MPa supply pressure with headroom: at 0.7MPa, a Φ80mm cylinder generates approximately 3.5kN at full bore, adequate for 1,500N with ample force margin; a Φ125mm cylinder generates approximately 8.6kN at 0.7MPa, adequate for 3,500N. This sizing ensures cylinders operate comfortably within their rated pressure range rather than at the limit.
FESTO components + pressure-stabilizing tank — the combination of tier-one pneumatic hardware and supply pressure stabilization is what sustains ±5% dynamic force accuracy throughout a 999,999-cycle run. Generic cylinders without pressure stabilization typically exhibit force drift that exceeds ±5% within the first few thousand cycles as supply line pressure fluctuations compound with component wear.
Automatic deformation-based stop provides an objective, cycle-count-logged failure criterion that transforms the test from a pass/fail endpoint check into a fatigue life data point — the failure cycle count is recorded and stored automatically, providing quantitative comparative data between different joint designs or manufacturing batches.
The scooter is mounted in the test fixture. Cylinder load application points are positioned at the handlebar grips and deck surface using leadscrew adjustment, then locked with quick-release screws. Position geometry is set to match the standard-specified load application points for the scooter's category.
Handlebar force setpoint (500–1,500N), deck force setpoint (2,000–3,500N), test frequency (0–5Hz), and cycle count (0–999,999) are entered into the control system. Deformation stop threshold (maximum allowable cylinder stroke extension) is configured.
Air supply at 0.7MPa is confirmed. The stabilizing tank is at operating pressure. FESTO cylinder pre-travel is verified. Both axes are dry-cycled at low force to confirm cylinder and sensor operation before the test force is applied.
Both axes start simultaneously at the programmed frequency. Handlebar cylinders apply the angled downward force; the deck cylinder applies the vertical downward force — both cycling together. The closed-loop controllers maintain force amplitude on each axis independently. The database logs each cycle's results automatically.
The machine runs to the programmed cycle count (pass condition) or stops early when cylinder stroke exceeds the deformation limit (fail condition). The cycle count at stop is recorded. For a pass run, the scooter is inspected for visible fatigue damage; for a fail run, the failure location is documented alongside the failure cycle count.
Database records — force values, cycle count, stop condition, failure cycle if applicable — are exported for QC documentation, certification submission, or comparative design analysis.
A handlebar-only fatigue tester misses the deck load contribution to folding joint stress. A deck-only tester misses the handlebar bending moment. Only simultaneous loading on both axes produces the combined stress state at the folding joint that occurs during actual riding — and that is what EN 14619 and related standards require.
Data Captured | Value |
|---|---|
Failure cycle count (if applicable) | Enables comparative design analysis between variants |
Force history per cycle (database) | Documents test conditions for certification evidence |
Deformation at stop | Quantifies joint compliance change over fatigue life |
This means the FH-HB3312 generates engineering data from every test run — not just a binary pass/fail verdict — enabling manufacturers to compare folding joint designs, track batch-to-batch consistency, and establish safety margins above the standard minimum.
Leadscrew adjustment and quick-release position locks allow fixture reconfiguration between different scooter models without tools — practical for test labs handling multiple OEM product lines or manufacturers running comparative tests across variants.
A test lab running the FH-HB3312 at 3Hz for 8 hours per day accumulates approximately 86,400 pneumatic cycles per day. Over a year, that is over 30 million cycles on the cylinders, valves, and regulators. FESTO's rated cylinder life for industrial actuators at this duty cycle is measured in hundreds of millions of cycles — making the component specification appropriate for continuous production QC use, not just periodic certification testing.
A single-axis folding fatigue tester (handlebar only, or deck only) cannot replicate the combined stress state at the folding joint that occurs during riding. For certification testing under EN 14619 — which specifies simultaneous loading — only a dual-axis machine produces defensible test data. Verify that any machine under consideration applies both handlebar and deck loads simultaneously.
Pneumatic actuation (as in the FH-HB3312) is appropriate for scooter folding fatigue testing: the required force levels (up to 3,500N) and frequencies (0–5Hz) are well within the envelope where pneumatics deliver cost-effective, reliable performance with adequate force control accuracy. Servo-electric actuation offers higher bandwidth and lower force error, but at significantly higher cost — appropriate for applications requiring sub-1Hz precision waveform control or forces below the pneumatic resolution threshold. For EN 14619 scooter folding fatigue testing at 0–5Hz and 500–3,500N, pneumatic closed-loop is the standard industry choice.
Cylinder and valve brand determines maintenance interval and lifetime reliability in continuous use. Request the pneumatic component brand specification before purchasing — FESTO, SMC, and Parker are the established brands for fatigue test machine applications; generic-brand cylinders at these duty cycles typically require replacement within 6–12 months of production use.
Without a stabilizing air tank in the circuit, 5Hz cyclic demand from multiple cylinders produces measurable pressure drop-and-recovery on each cycle — translating directly into force variation that exceeds the ±5% dynamic accuracy specification. Confirm that any machine considered includes supply pressure stabilization, not just a regulator.
A European OEM preparing EN 14619 certification for a new folding urban scooter ran the folding fatigue test sequence with the FH-HB3312 at handlebar load 1,000N and deck load 2,800N for the standard cycle count. The machine stopped automatically at 73% of the required cycle count due to a deformation-stop trigger at the folding latch — identifying insufficient latch spring pre-load before the certification submission. The latch design was revised; the subsequent test ran to full cycle count.
A scooter manufacturer comparing three folding joint designs — pin-and-latch, lever-latch, and magnetic-assist — used the failure cycle count data from the FH-HB3312 database to rank the three designs by fatigue life margin above the EN 14619 minimum. The magnetic-assist design, despite higher unit cost, showed a 2.4× fatigue life advantage — data that was used to justify the premium specification to procurement.
A test laboratory serving multiple scooter OEM clients used the quick-release fixture system to run tests on four different scooter models in a single working day, each requiring a different handlebar geometry and deck load application point — demonstrating the time savings that leadscrew-plus-quick-release adjustment delivers over conventional bolt-lock fixtures.
The folding joint experiences both handlebar bending moment and deck compression simultaneously during actual riding. Applying them separately would test two different, simpler load cases rather than the combined stress state that accumulates fatigue at the joint in real use — and that EN 14619 specifies as the test condition.
A rider's hands apply force at the handlebars in a direction that is neither purely horizontal nor purely vertical — it is a resultant that combines forward/rearward steering input with downward body weight transfer through the arms. The angled downward direction specified for the FH-HB3312 replicates this resultant force, producing the bending moment at the stem/folding joint that is most mechanically representative of real riding.
The cylinder stroke exceeding a preset deformation threshold. As the folding joint fatigues and deforms, the cylinder must extend further to maintain the programmed force — when that extension exceeds the limit, the machine stops and records the cycle count. This provides an objective, measurement-based failure criterion rather than requiring an operator to judge when deformation is "too much."
FESTO industrial cylinders and valves are rated for tens to hundreds of millions of actuation cycles. A machine running 999,999-cycle tests multiple times per week accumulates enormous component cycle counts quickly. Tier-one component specification is necessary for machines used in production QC environments — not just occasional certification testing.
At 0–5Hz cycling frequency, multiple cylinders create a pulsating demand on the air supply. Without a tank, this produces pressure oscillations that translate into force variation at the cylinder output. The stabilizing tank acts as a pressure reservoir that absorbs these fluctuations — maintaining stable supply pressure and therefore stable force output throughout the test.
Yes. Both handlebar and deck force setpoints are entered in the control software. Switching between scooter categories or test specifications requires only setpoint changes — no cylinder replacement, sensor change, or hardware modification.
Every test run is automatically recorded to the database — force values, cycle count, stop condition, and failure cycle if applicable. Records are stored per-test and can be exported for QC documentation, certification evidence, or comparative analysis.

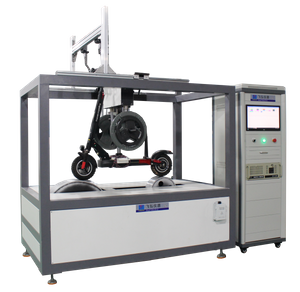

Scooter Dynamic Durability Testing Machine — dual-roller road simulation at 0.5m/s with obstacle module per EN 14619 / GB/T 20096; pairs with the FH-HB3312 for full scooter structural and durability qualification
Dual-Roller Scooter Tester (FH-HB3309) — two-wheel simultaneous road and obstacle simulation per CNS6263-11
Scooter Handlebar Fatigue Test Machine — isolated handlebar and stem bending fatigue testing
Brake Lever & Brake System Test Machine — cyclic actuation fatigue for levers, cables, and calipers
Scooter Deck / Footboard Fatigue Test Machine — repetitive deck load cycling for structural endurance
Scooter Frame Vibration Test Machine — vibration endurance for frames and welded joints
Scooter Drop / Impact Test Machine — drop-weight impact testing per EN 14619
Tyre Roundness & Radial Runout Test Machine — wheel out-of-round measurement
Feihong Machine (Dongguan Feihong Instrument and Equipment Co., Ltd.) designs and manufactures scooter and sports equipment testing machines for manufacturers and testing laboratories worldwide.
To get started:
Request a Quote — share your scooter category, target force values, and applicable standard
Request Technical Datasheet — full dimensional drawings, pneumatic schematic, and sensor calibration data
Schedule a Demo — see the FH-HB3312 run a live folding fatigue test with dual-axis real-time force display
