Scooter Dynamic Durability Testing Machine FH-HB3100

Road simulation durability testing for kick scooters, e-scooters, and roller skates — flat road, obstacle course, and static load in one machine.

The Feihong Scooter Dynamic Durability Testing Machine simulates real riding conditions to evaluate the structural fatigue, material durability, and rolling wear performance of kick scooters, electric scooters, and roller skate wheels. A 700mm diameter roller running at 0.5m/s replicates long-distance road travel; a built-in obstacle module introduces periodic impact loads; and an adjustable 20–100kg weight loading system distributes simulated rider mass across handlebar, seat, pedal, and cargo rack positions — all under touchscreen control with Feihong's proprietary software. Standards covered: EN 14619:2004(E), GB/T 20096-2006 clause 5.14, and CNS6263-11.

Quick Specs

• Standards: EN 14619:2004(E), GB/T 20096-2006 (5.14), CNS6263-11

• Roller diameter: 700mm

• Roller speed: 0.5m/s (±5%)

• Load range: 20–100kg (adjustable)

• Speed measurement accuracy: ±0.1km/h

• Load measurement accuracy: ±0.1kg

• Test duration: 1 min – 9,999h

• Control: Touchscreen, Feihong proprietary software

• Power: AC 380V, 50Hz, 10A

• Bench dimensions: 2150 × 1300 × 2450mm

 Table of Contents

1. Why Scooters and Roller Skates Need Dynamic Durability Testing

2. Overview of the Scooter Dynamic Durability Testing Machine

3. Standards Covered: EN 14619, GB/T 20096, CNS6263-11

4. Main Test Functions and Applications

5. Design Features

6. Technical Specifications

7. How the Testing Process Works

8. Benefits for Manufacturers and Testing Labs

9. Choosing the Right Scooter Durability Tester

10. Real-World Application Scenarios

11. FAQs

12. Related Testing Equipment

13. Get a Quote from Feihong Machine

Why Scooters and Roller Skates Need Dynamic Durability Testing

Kick scooters, electric scooters, and inline skates all share a structural characteristic that makes durability testing critical and demanding: they are small, lightweight vehicles that carry significant rider loads relative to their own mass, transmit every road surface irregularity directly into their frames, wheels, and folding mechanisms, and are used by riders who frequently exceed the design load through aggressive riding, jumping, or overloading.

For kick scooters and e-scooters, the fatigue failure modes most commonly seen in service — deck cracking, folding mechanism failure, handlebar stem fracture, wheel bearing failure — are all cyclic fatigue phenomena that develop gradually under the alternating bending and impact loads of normal use. A scooter that passes static strength tests can still fail in fatigue after a few thousand kilometers of real-world use if its structural details are inadequate for cyclic loading.

For roller skate wheels, the key durability metric is not structural fatigue but rolling wear and hardness retention — how much material is lost from the wheel surface, and whether the wheel remains round and grippy after extended use.

Dynamic durability testing addresses both failure modes: a long-duration roller simulation accumulates the cyclic load history that produces structural fatigue, while the obstacle module introduces the impact loads that accelerate both fatigue crack growth and wheel surface degradation. Standards EN 14619:2004, GB/T 20096-2006, and CNS6263-11 all require this type of test as a mandatory qualification requirement for products sold in EU, Chinese, and Taiwanese markets respectively.

Overview of the Scooter Dynamic Durability Testing Machine

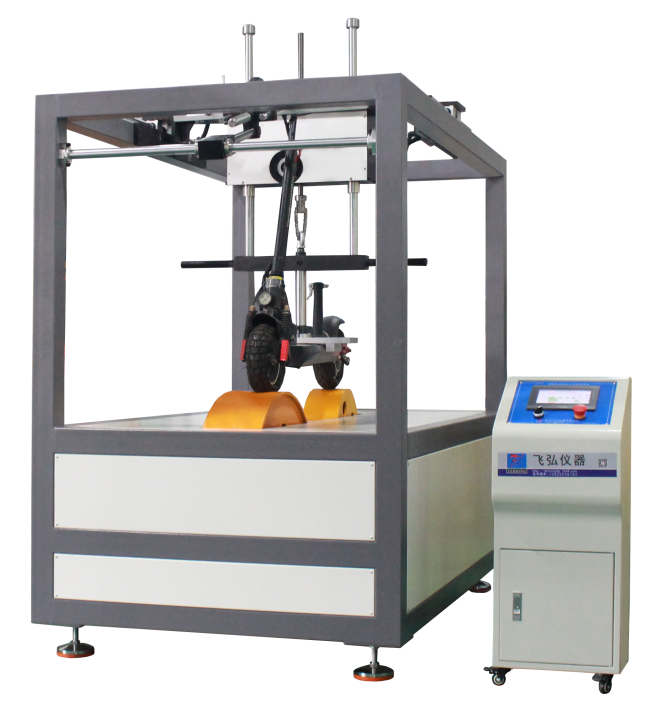

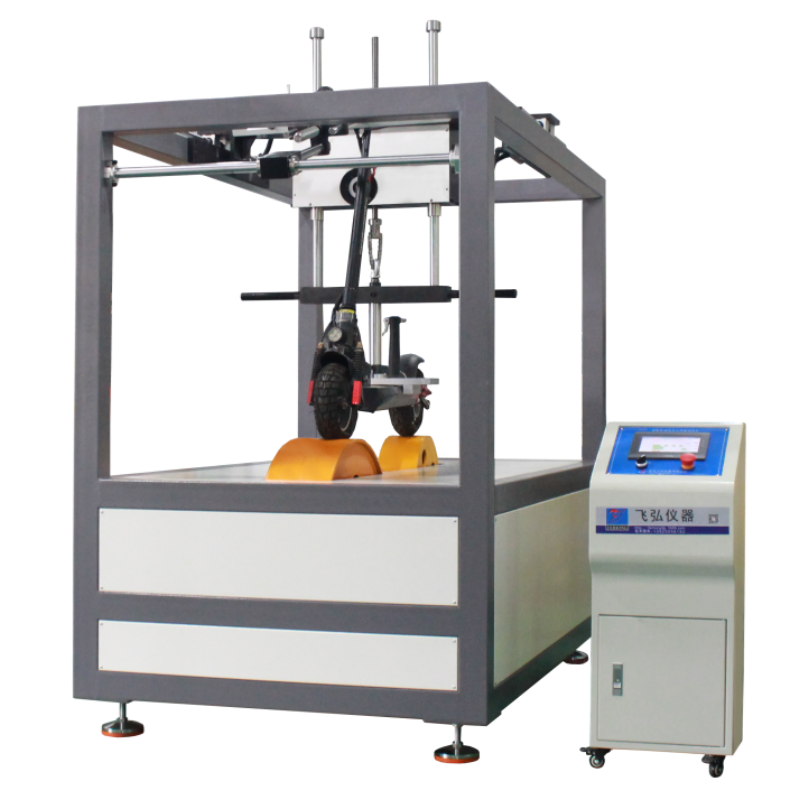

The Feihong Scooter Dynamic Durability Testing Machine FH-HB3100 is a roller-based road simulation tester that covers all three test types required by EN 14619 and GB/T 20096-2006: dynamic riding test, long-distance walking test, and static load test — in a single machine configurable for each test type.

The scooter or roller skate is placed on a 700mm diameter roller running at 0.5m/s (approximately 1.8km/h). The 700mm roller diameter is large enough to avoid the artificial contact angle and load distribution errors that smaller rollers introduce on scooter and skate wheel testing; it produces a ground-contact geometry close enough to a flat road to give representative wear and fatigue data.

A weight loading system distributes simulated rider mass (20–100kg adjustable) across the vehicle's load-bearing points — handlebar, seat, pedal deck, and cargo rack — matching the load distribution geometry of a real rider. This is critical for fatigue testing: applying load only at a single point (as simpler machines do) misrepresents the bending moment distribution in the frame and produces non-representative fatigue results.

An obstacle module allows the test to introduce periodic impact loads replicating road surface irregularities, kerb transitions, and speed bumps — the events that produce the highest single-cycle loads during normal scooter use and accelerate fatigue damage most rapidly.

Standards Covered: EN 14619, GB/T 20096, CNS6263-11

EN 14619:2004(E) — Roller Sports Equipment: Freestyle Scooters

The primary EU standard for kick scooters (freestyle/urban category). EN 14619 defines dynamic endurance test requirements including road simulation on a roller test bench, obstacle testing, and static load tests for deck, handlebar stem, and folding mechanism. The standard specifies test duration, roller speed, load magnitude and distribution, and pass criteria (no fracture, no significant deformation, all safety-relevant mechanical functions intact).

GB/T 20096-2006 — Roller Skating Equipment: Wheels

China's national standard for roller skate equipment, with clause 5.14 specifically addressing wheel durability and wear testing on a roller bench. The test parameters — roller diameter, rolling speed, load, and test duration — are the framework the machine is designed to execute. This makes the machine directly applicable to wheel wear testing for inline skate wheels, scooter wheels, and similar small-diameter rolling products.

CNS6263-11 — Toy and Sports Equipment Safety (Taiwan)

Taiwan's CNS standard covering scooters and related wheeled sports equipment, aligned in methodology with EN 14619. Manufacturers exporting to Taiwan or working with Taiwanese OEM buyers frequently require CNS6263-11 compliance alongside EN 14619 — the Feihong machine's test parameters cover both simultaneously.

Comparative Standard Requirements

Main Test Functions and Applications

1. Dynamic Riding Simulation Test

The scooter or skate is loaded to the test weight and run on the roller at 0.5m/s for the programmed duration. This accumulates rolling cycles on wheels, bearings, and structural joints — revealing fatigue-driven degradation in deck flex, folding mechanism play, handlebar vibration damping, and wheel roundness that would emerge after extended real-world use.

Application: Long-distance durability verification for kick scooters, electric scooters, and urban mobility devices ahead of EN 14619 or GB/T 20096 certification.

2. Obstacle Test

A defined obstacle element is introduced into the roller path, producing periodic impact loads at the wheel-obstacle interface during the test run. This simulates the kerb drops, speed bumps, and road joint transitions that produce the highest instantaneous loads in normal scooter use — the events most likely to initiate fatigue cracks in the deck, stem, and folding mechanism.

Application: Impact fatigue screening for folding mechanisms, deck-to-stem joints, and wheel assemblies where road impact behavior is a critical safety consideration.

3. Static Load Test

The vehicle is loaded statically at the specified load points — deck, handlebar, seat, and cargo rack — and held for the defined duration. This tests creep behavior, joint relaxation, and structural adequacy under sustained load without the fatigue component of the dynamic test.

Application: Structural adequacy verification for load-bearing points per EN 14619 static load requirements.

4. Electric Scooter Range Test

For electric scooters, the roller simulation allows a standardized range test under controlled load and speed conditions — the vehicle runs on the roller at rated speed under rated load until the battery depletes, with total distance logged. This provides a repeatable, indoor range figure that eliminates the weather, gradient, and operator-weight variability of outdoor road tests.

Application: Battery range validation for electric kick scooters and light electric vehicles before product launch or export documentation.

5. Roller Skate Wheel Wear Test

Roller skate wheels are mounted and run against the 700mm roller under defined load (per GB/T 20096-2006 clause 5.14) for the specified duration. Wheel weight, diameter, and surface condition are measured before and after to quantify wear rate and assess out-of-round development.

Application: Urethane wheel compound durability and wear resistance testing for inline skates, roller derby wheels, and scooter replacement wheels.

Adjustable Load Points — Four Positions

The loading system accommodates weight distribution across:

• Handlebar — simulates rider hand/arm weight and steering input load

• Seat — for seated-rider scooter and e-scooter configurations

• Deck / Pedal — primary rider weight application point for standing-rider scooters

• Cargo rack — for cargo-configured scooters and delivery e-scooters

Design Features

700mm Large-Diameter Roller

The 700mm roller diameter is the key geometry specification for representative scooter and wheel testing. Smaller rollers produce a concave contact geometry that artificially increases contact stress concentration at the wheel-roller interface — making wear test results non-transferable to flat-road conditions. At 700mm, the contact geometry is close enough to a flat surface that wear rate and fatigue data correlate well with outdoor road test results.

Dual Test Surface — Flat Road and Obstacle Module

The roller surface is configurable for flat road simulation (smooth roller surface) and obstacle testing (obstacle elements introduced into the roller path). Switching between configurations does not require major fixture changes, allowing the standard test sequence — flat road followed by obstacle — to be completed efficiently in sequence.

Adjustable Roller Distance for Multiple Vehicle Sizes

The front-to-rear roller spacing is adjustable, accommodating scooters and skates across the size range covered by EN 14619 and GB/T 20096 — from compact children's scooters to full-size adult kick scooters and electric scooters with larger wheelbases.

20–100kg Adjustable Load System (±0.1kg Accuracy)

The weight loading system covers the full range of test loads specified across EN 14619, GB/T 20096, and CNS6263-11 — from lighter children's product load requirements to full adult-load specifications. Load measurement accuracy of ±0.1kg ensures that the applied test weight matches the standard specification precisely.

0–9,999h Programmable Test Duration

Test duration is settable from 1 minute to 9,999 hours — covering both the short standardized test sequences in EN 14619 and GB/T 20096 and extended endurance programs for internal product validation and lifetime testing. The machine runs unattended to completion.

Touchscreen Control with Feihong Software

The touchscreen interface displays test status, elapsed time, cycle count, current speed, and load readings in real time. The Feihong proprietary control software manages speed regulation, load monitoring, test duration countdown, and automatic stop — without requiring a separate PC for basic operation.

Motor Control System with ±5% Speed Regulation

The roller drive motor maintains 0.5m/s (±5%) throughout the test duration — equivalent to ±0.025m/s absolute tolerance. Speed measurement accuracy is ±0.1km/h, allowing the operator to verify that the roller speed is within specification at any point during the test.

Automatic Stop on Test Completion

The machine stops automatically at the programmed test duration, requiring no operator attendance during the run. For unattended overnight or multi-day tests (9,999h maximum), this auto-stop prevents over-testing and ensures all specimens complete the same controlled test duration.

Technical Specifications

Test Performance

Control and Electrical

Physical

Standards Compliance

Why These Specifications Matter

• 700mm roller diameter is the critical geometry specification: it produces a wheel-surface contact angle close enough to flat that wear test data correlates with outdoor road testing, unlike 200–400mm rollers used in lower-cost machines that introduce non-representative contact stress concentrations.

• 0.5m/s (±5%) speed control matches the roller speed specified in GB/T 20096-2006 clause 5.14. Uncontrolled speed variation outside this tolerance would alter the contact mechanics and wear rates, making results non-comparable with the standard reference conditions.

• 20–100kg load range covers the full span of test loads across EN 14619 (adult load up to 100kg), GB/T 20096 (wheel load per standard), and children's product specifications (lighter loads), without requiring load system reconfiguration between product categories.

• 9,999h maximum test duration allows genuine lifetime durability testing — not just standard-required minimum cycle counts — for manufacturers who want internal product validation data beyond the certification threshold.

• ±0.1kg load accuracy ensures the applied test weight is documentably within specification. For a 100kg test load, ±0.1kg is a 0.1% accuracy — well within the tolerance bands of all three referenced standards.

How the Testing Process Works

Step 1: Vehicle or Wheel Mounting

The scooter, e-scooter, or roller skate is positioned on the roller. For scooters, front and rear wheels are placed on the roller surface; wheelbase is adjusted to match the vehicle geometry. For roller skate wheel wear tests, the wheel is mounted in the appropriate fixture.

Step 2: Load Configuration

Weights are applied at the appropriate load points — deck/pedal for standing-rider scooters, seat for seated configurations, handlebar for the handlebar load component, cargo rack where applicable. Total load is verified against the standard requirement (or internal test specification) using the ±0.1kg load measurement system.

Step 3: Test Mode and Duration Setting

The operator selects test mode (flat road, obstacle, or static) and enters the test duration on the touchscreen. For the electric scooter range test, the vehicle is started under its own power with the roller providing the rolling resistance.

Step 4: Automated Test Run

The roller motor starts at 0.5m/s. The Feihong software monitors speed, load, and elapsed time continuously. For obstacle tests, the obstacle module introduces periodic impacts at the programmed interval. The display shows real-time speed, load, elapsed time, and remaining duration.

Step 5: Auto-Stop and Inspection

The machine stops automatically at the programmed duration. For wear tests, the wheel is removed and measured (weight, diameter, surface profile) for comparison with pre-test measurements. For structural durability tests, the vehicle is inspected for fracture, deformation, loosening, and functional degradation at all safety-relevant joints.

Benefits for Manufacturers and Testing Labs

Complete Standard Test Coverage in One Machine

EN 14619 requires three test types — dynamic, obstacle, and static. Running all three on a single machine eliminates the time and cost of transferring products between different test setups.

Indoor, Repeatable Range Testing for E-Scooters

Road-based range testing is affected by wind, gradient, rider weight variation, and temperature. The roller bench provides a controlled indoor environment where all variables are fixed — giving a defensible, repeatable range figure for marketing claims and regulatory submissions.

Wheel Wear Data for Material Qualification

For wheel compound development or supplier qualification, the machine provides quantitative wear data (weight loss, diameter change) under standardized conditions — enabling direct comparison between urethane formulations, hardness grades, or manufacturing batches.

Choosing the Right Scooter Durability Tester

Roller Diameter — Why 700mm Matters

Test machines for scooter and skate wheel durability range from small 200mm diameter rollers (cheap, compact) to 700mm+ rollers. The contact mechanics differ significantly: a small roller produces a concave contact geometry that concentrates stress at the wheel center, artificially accelerating wear at that point while underloading the wheel edges. A 700mm roller produces near-flat contact, giving wear data that transfers to real-world road conditions. If your test data needs to support certification submissions or comparative marketing claims, roller diameter is not a detail to compromise on.

Speed Control Accuracy

GB/T 20096-2006 clause 5.14 specifies roller speed at 0.5m/s. Confirm the machine's speed regulation tolerance and verify that the speed measurement system is accurate enough to document compliance. The ±5% speed tolerance and ±0.1km/h measurement accuracy of the Feihong machine provide this verification capability.

Multi-Point Load Distribution

A machine that applies load only at the deck center cannot replicate the multi-point load distribution — handlebar, deck, seat, cargo rack — that real riders impose. Single-point loading misrepresents the bending moment in the frame and produces non-representative fatigue results. Confirm the tester supports adjustable multi-point loading.

Test Duration Capability

For lifetime durability programs that go beyond standard minimum test requirements, confirm that the machine can run tests in the 1,000–9,999 hour range with auto-stop — enabling unattended long-duration testing without operator attendance.

Real-World Application Scenarios

A European scooter OEM preparing EN 14619 certification ran the full three-test sequence — 200km flat road simulation, obstacle test, static load — on a pre-production prototype, identifying deck-to-stem joint loosening at 150km that would have caused a certification failure. A weld bead redesign was implemented before the certification unit was submitted, avoiding a retest.

A wheel compound supplier testing new urethane formulations used the GB/T 20096-2006 clause 5.14 roller setup to compare wear rates across four hardness grades (78A, 82A, 85A, 90A) under identical 0.5m/s / 100kg conditions, generating comparative wear data in 72 hours that would have taken weeks of outdoor road testing with uncontrolled variables.

An electric scooter startup used the roller bench for range testing across three battery configurations under standardized 75kg rider load at 0.5m/s, producing consistent, repeatable range figures for their product specification sheet — figures their distributors could rely on, unlike field test results that varied ±30% with rider weight and road gradient.

FAQs

What vehicle types can this machine test?

Kick scooters, electric scooters (e-scooters), seated scooters and mopeds, and roller skate / inline skate wheels for wear testing. The adjustable roller spacing and multi-point load system accommodate different vehicle sizes and configurations.

What is the difference between the flat road test and the obstacle test?

The flat road test runs the vehicle on a smooth roller surface, accumulating rolling cycles that simulate long-distance use on normal road surfaces. The obstacle test introduces a defined obstacle element into the roller path, producing periodic impact loads that simulate kerb drops, speed bumps, and road joint transitions. EN 14619 requires both as separate test sequences.

Can it test electric scooters under their own power?

Yes. For the electric scooter range test, the vehicle's own motor drives the wheels against the roller's resistance — the machine measures the roller speed and load, and the vehicle runs until its battery depletes. Total distance is calculated from roller speed and elapsed time.

Why is the roller speed fixed at 0.5m/s?

GB/T 20096-2006 clause 5.14 specifies 0.5m/s (approximately 1.8km/h) as the standard roller speed for wheel and scooter durability testing. This speed is low enough to minimize aerodynamic and thermal effects while still accumulating representative contact fatigue and wear cycles within a practical test duration.

What happens to the roller skate wheels after the wear test?

The wheels are removed and measured — weight, outer diameter, and surface profile — and compared to pre-test measurements to quantify wear rate (g/km or mm/km) and assess out-of-round development. This data is used to compare compounds, qualify suppliers, or support product durability claims.

How long can a test run unattended?

Up to 9,999 hours with automatic stop on completion — suitable for multi-day and multi-week lifetime durability programs. The machine stops automatically at the programmed duration; no operator attendance is required during the run.

What load points can be loaded simultaneously?

Handlebar, seat, pedal/deck, and cargo rack — up to the 100kg maximum total load across all points combined, with ±0.1kg measurement accuracy at each point.
