Product Overview

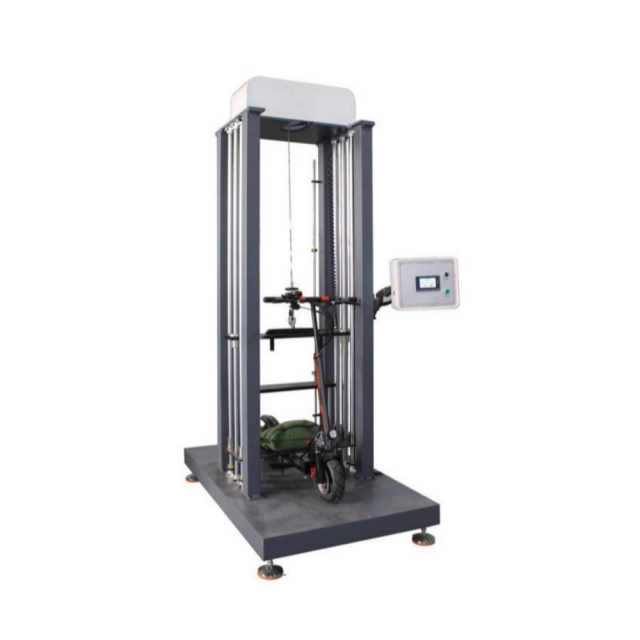

The Scooter Drop Testing Machine is designed to evaluate the impact resistance, transportation durability, and packaging protection performance of scooters, electric scooters, and other personal mobility products.
The system simulates accidental drops that may occur during transportation, warehousing, loading, unloading, and distribution processes. By reproducing controlled free-fall impacts from different heights and orientations, manufacturers can assess product integrity, packaging effectiveness, and structural reliability before products reach customers.
The equipment supports face drop, edge drop, and corner drop testing, helping manufacturers identify potential weaknesses in packaging design and product protection systems.
Reference Standards
The equipment can be used to perform testing according to transportation and packaging verification procedures including:
ISTA Series Transportation Testing
ISO Transportation Packaging Evaluation
ASTM Package Drop Test Procedures
Internal Product Reliability Standards
Logistics and Distribution Simulation Testing
Testing methods and fixture designs can be customized according to specific customer requirements and applicable standards.
Testing Functions and Testing Logic
1. Package Drop Test
Test Objective
To evaluate whether the packaging system can adequately protect the scooter during transportation and handling.
Testing Logic
During shipping and warehouse operations, packaged products may accidentally fall from pallets, conveyors, forklifts, or manual handling positions.
The machine simulates these events by releasing the packaged scooter from predetermined heights.
Typical Failures Detected
2. Product Impact Resistance Test
Test Objective
To verify the scooter's ability to withstand accidental impact events.
Testing Logic
Even with protective packaging, sudden impacts may transmit shock energy to the scooter frame, folding mechanism, battery compartment, display, and other critical components.
Controlled drop testing helps engineers identify vulnerable areas before mass production.
Typical Failures Detected
3. Face Drop Test
Test Objective
To evaluate impact resistance when the package lands flat on one surface.
Testing Logic
Face drops generate the largest overall impact force across a broad surface area and are commonly used to assess packaging energy absorption performance.
Evaluation Focus
4. Edge Drop Test
Test Objective
To evaluate packaging and product durability when impact is concentrated along one edge.
Testing Logic
Edge impacts generate higher localized stress than face impacts and are frequently encountered during manual handling and warehouse operations.
Evaluation Focus
5. Corner Drop Test
Test Objective
To evaluate the worst-case impact condition during transportation.
Testing Logic
Corner drops create highly concentrated impact forces at a single point and often reveal hidden structural weaknesses.
Evaluation Focus
Core Features
Precision Height Control
Multiple Drop Orientations
Supports:
Face drops
Edge drops
Corner drops
Electromagnetic Release System
One-button drop activation
Stable release performance
Accurate and repeatable testing
Wide Product Compatibility
Suitable for:
Safety Protection System
Technical Specifications
Item | Specification |
Drop Height Range | 300–1500 mm (Customizable) |
Maximum Test Weight | 60 kg |
Maximum Specimen Size | 2700 × 800 × 1000 mm |
Minimum Specimen Size | 30 × 30 × 10 mm |
Drop Angle Error | <1° |
Height Accuracy | ±10 mm |
Drop Types | Face, Edge, Corner |
Height Adjustment | Motor Driven |
Release Method | Electromagnetic Release |
Reset Method | Manual |
Machine Weight | Approx. 400 kg |
Machine Dimensions | 1650 × 1400 × 2300 mm |
Power Supply | AC380V / 50Hz |
Installed Power | 4 kW |
FAQ
Why is drop testing important for scooter manufacturers?
Many product failures occur during transportation rather than actual use. Drop testing helps manufacturers verify that packaging and product structures can withstand handling impacts before shipment.
What is the difference between face, edge, and corner drop testing?
Face drop testing evaluates overall packaging protection. Edge drop testing concentrates impact energy along one edge. Corner drop testing represents the most severe transportation impact condition and is often considered the worst-case scenario.
Why is transportation simulation necessary even if the product passes durability testing?
Durability testing evaluates product performance during use, while drop testing evaluates product survival during logistics and distribution. A scooter can pass riding durability tests but still suffer damage during transportation if packaging design is inadequate.
How is drop height selected?
Drop height is usually determined by product weight, package size, transportation method, and applicable testing standards. Common test heights range from 300 mm to 1500 mm depending on customer requirements.
What failures are most commonly discovered during scooter drop testing?
Typical failures include packaging collapse, frame scratches, display damage, folding mechanism deformation, battery compartment movement, and loose internal components.
