Overview

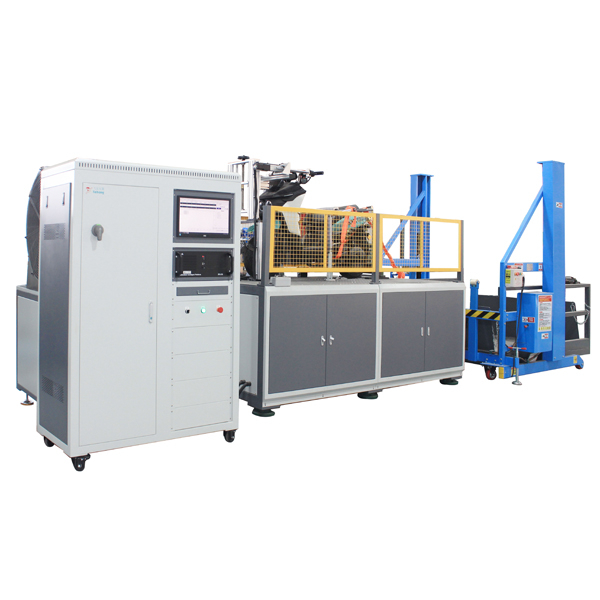

This test bench evaluates complete electric motorcycles under simulated road conditions. A servo-driven roller provides riding motion, while a programmable load motor applies adjustable wheel torque for vibration, road durability and brake endurance testing.
Key Features
• Simulates road load and riding conditions
• Supports vibration, driving durability and brake durability tests
• Measures load torque, speed, voltage, current and power
• Displays test curves and records all test data
• Supports report generation and data export
Technical Specifications
• Riding speed: 0–200 km/h
• Speed resolution: 0.1 km/h
• Speed accuracy: better than 1 km/h
• Distance accuracy: ≤1%
• Distance range: up to 100,000 m
• Distance resolution: 0.1 m
• Time range: 0–999 h
• Time resolution: 1 s
• Simulated load: 0–200 kg, adjustable
• Power supply: 380 V, 62 kW, 120 A
