Overview

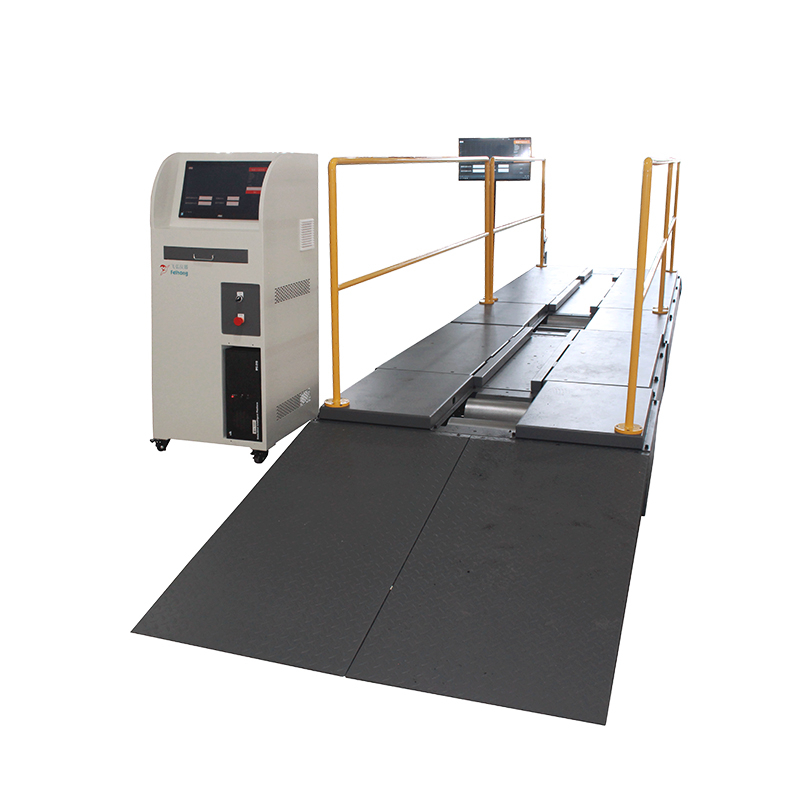

A complete inspection line for two-wheel electric motorcycles. It checks speedometer accuracy, acceleration, maximum speed, front and rear axle load, braking force, and wheel alignment.
Test Range
Wheelbase: 1250–1500 mm
Wheel diameter: 400–500 mm
Tire width: 100–180 mm
Maximum axle load: 300 kg
Maximum braking force: 1000 N
Maximum speed: 120 km/h
Minimum ground clearance: 150 mm
The system supports a continuous test process and prints the final inspection results.
