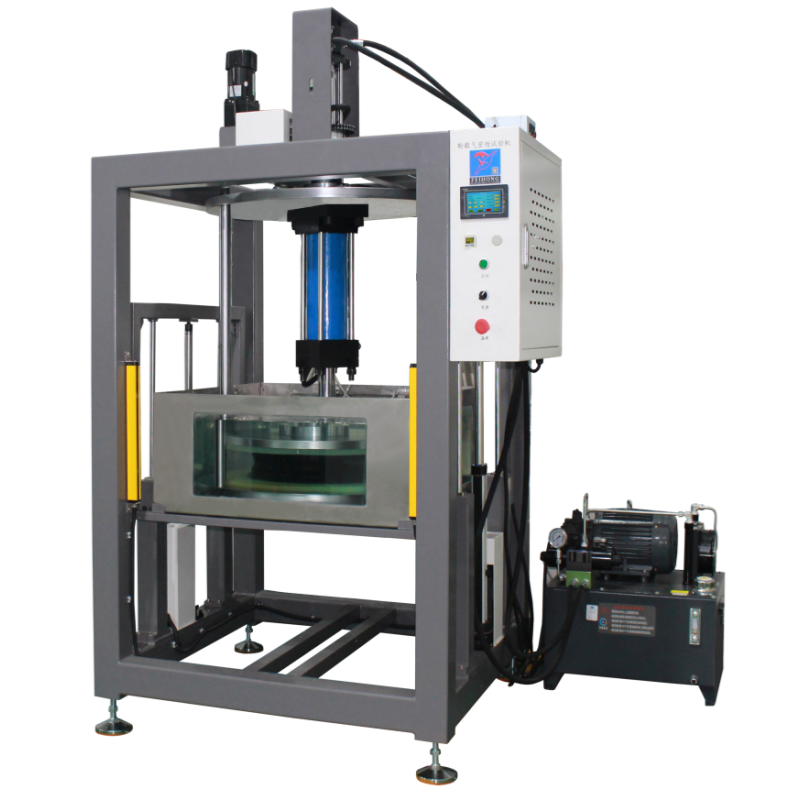

The Wheel Hub Airtightness Testing Machine is specially designed for airtightness and leak detection testing of tubeless wheels used in automobiles and motorcycles. The system utilizes a hydraulic clamping mechanism to securely seal both sides of the wheel hub with high-strength sealing gaskets, creating a reliable airtight testing environment.
The machine employs the air-pressure bubble immersion method, one of the most widely accepted and effective techniques for detecting air leakage in wheel assemblies. During testing, compressed air is introduced into the sealed wheel cavity, and the wheel is submerged in water. Any leakage points are immediately visible through escaping air bubbles, enabling fast and accurate inspection.
This equipment is ideal for wheel manufacturers, automotive suppliers, quality control departments, and testing laboratories seeking to ensure product safety, sealing performance, and manufacturing consistency.
Key Features
Designed for tubeless wheel airtightness testing
Suitable for automotive and motorcycle wheels
Hydraulic clamping system for secure sealing
High-strength sealing gaskets ensure reliable test results
Bubble immersion leak detection method
Fast and accurate leak identification
Adjustable wheel size compatibility
Stable hydraulic fixture design
Easy operation and maintenance
Suitable for production line and laboratory applications
Test Applications
Wheel Hub Airtightness Test
Tubeless Rim Leak Detection
Wheel Sealing Performance Verification
Manufacturing Quality Inspection
Production Line Leak Testing
New Product Validation Testing
Wheel Repair Inspection
Final Product Quality Assurance
Technical Specifications
Item | Specification |
Maximum Air Pressure | 0.5 MPa |
Clamping Method | Hydraulic Fixture Clamping |
Wheel Fixture Stroke | 60 – 150 mm |
Detection Method | Air Pressure Bubble Immersion Test |
Water Tank Stroke | 250 – 400 mm |
Water Tank Capacity | 45 – 1500 mm |
Wheel Height Range | 220 – 600 mm |
Test Platform Dimensions | 1400 × 1200 × 2220 mm |
Hydraulic Station Dimensions | 660 × 480 × 640 mm |
Test Platform Weight | Approx. 920 kg |
Hydraulic Station Weight | Approx. 121 kg |
Power Supply | 380V, 3 kW |
Applications
Automotive Wheel Manufacturers
Motorcycle Wheel Manufacturers
Alloy Wheel Suppliers
Wheel Repair Centers
Automotive Quality Control Laboratories
Product Certification Laboratories
OEM and Tier-1 Suppliers
Vehicle Component Testing Facilities
Advantages
Reliable Airtightness Verification
The hydraulic sealing system ensures stable and repeatable testing conditions, providing highly accurate leak detection results.
Suitable for Multiple Wheel Sizes
The adjustable fixture design accommodates a wide range of automotive and motorcycle wheel dimensions.
Proven Bubble Leak Detection Method
The bubble immersion technique offers direct visual identification of leakage locations, making defect analysis simple and effective.
Improved Product Quality
Helps manufacturers identify sealing defects before shipment, reducing warranty claims and improving customer satisfaction.
FAQ
Q1: What types of wheels can be tested?
A: The machine is suitable for tubeless automobile wheels, motorcycle wheels, alloy rims, and similar wheel assemblies.
Q2: What leak detection method is used?
A: The system uses the air-pressure bubble immersion method, where the wheel is pressurized and submerged in water to visually identify leakage points.
Q3: What is the maximum testing pressure?
A: The machine can perform airtightness testing at pressures up to 0.5 MPa.
Q4: How is the wheel sealed during testing?
A: A hydraulic clamping fixture and high-strength sealing gaskets are used to seal both sides of the wheel securely.
Q5: Is the machine suitable for production line inspection?
A: Yes. The equipment is suitable for both laboratory testing and production-line quality control applications.
