Product Overview

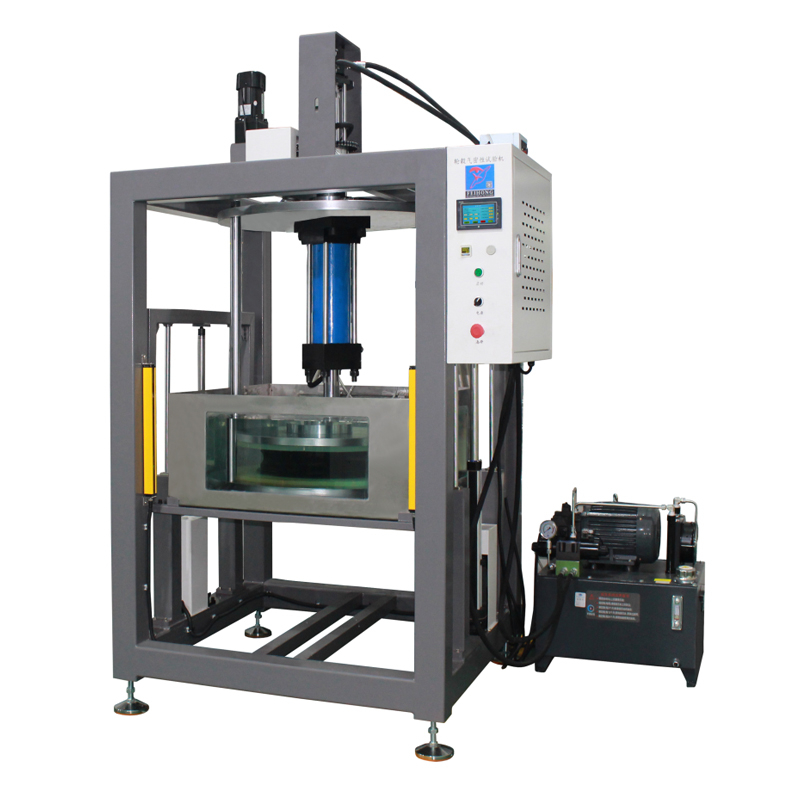

The Motorcycle and Automotive Wheel Rim Airtightness Testing Machine is designed to evaluate the sealing performance and leak resistance of tubeless wheel rims used in motorcycles, passenger vehicles, and light automotive applications.
The system utilizes hydraulic clamping fixtures and high-strength sealing gaskets to seal both sides of the wheel rim. Pressurized air is introduced into the test specimen and submerged in a water tank for bubble leak detection. Any leakage points can be quickly identified through visual inspection of air bubbles.
The equipment is widely used for wheel manufacturing quality control, product development, supplier qualification, and final inspection before shipment.
Testing Principle
Tubeless wheel rims rely on perfect airtightness to maintain stable tire pressure during operation.
Even minor leakage can result in:
The machine applies compressed air pressure inside the wheel rim and submerges the sealed assembly into a water tank. If air bubbles appear, leakage points can be accurately identified and evaluated.
This testing method follows the proven bubble leak detection principle widely used in wheel manufacturing and quality assurance processes.
Main Features
Hydraulic Clamping System
Stable hydraulic fixture locking
Reliable sealing performance
Fast loading and unloading
Suitable for various wheel sizes
High-Strength Sealing Structure
Upper and lower sealing covers
Durable sealing gaskets
Consistent test repeatability
Reduced leakage from fixtures
Bubble Leak Detection Method
Wide Application Range
Suitable for:
Industrial-Grade Design
Technical Specifications
Item | Specification |
Maximum Air Pressure | 0.5 MPa |
Clamping Method | Hydraulic Clamping |
Automotive Fixture Stroke | 500–700 mm |
Leak Detection Method | Bubble Leak Testing |
Water Tank Stroke | 250–400 mm |
Water Tank Diameter Range | 45–1500 mm |
Wheel Height Range | 220–800 mm |
Machine Dimensions | 1380 × 1200 × 2700 mm |
Hydraulic Unit Dimensions | 700 × 450 × 700 mm |
Applications
Motorcycle wheel manufacturers
Automotive wheel manufacturers
Aluminum wheel factories
Wheel quality inspection laboratories
OEM and aftermarket wheel suppliers
Product certification laboratories
Vehicle component testing centers
Advantages
Designed for tubeless wheel airtightness verification
Hydraulic clamping ensures reliable sealing
Fast and accurate leak detection
Suitable for motorcycle and automotive wheels
Easy operation and maintenance
High testing efficiency for production environments
Supports quality control and product validation
Frequently Asked Questions (FAQ)
What is a wheel rim airtightness test?
A wheel rim airtightness test evaluates whether a tubeless wheel can maintain internal air pressure without leakage. It is an essential quality control process for motorcycle and automotive wheel manufacturers.
Why is airtightness testing important for tubeless wheels?
Tubeless wheels rely entirely on the wheel rim and tire bead to maintain pressure. Even small leaks may cause gradual air loss, reduced vehicle safety, and customer complaints. Airtightness testing helps identify defects before products enter the market.
How does the bubble leak testing method work?
The wheel rim is sealed and pressurized with air, then submerged in water. If air bubbles appear, the leak location can be visually identified. This method is widely used because it is reliable, simple, and effective.
What types of wheels can be tested?
The system is suitable for motorcycle wheels, passenger vehicle wheels, aluminum alloy rims, steel rims, and other tubeless wheel assemblies.
Why use hydraulic clamping instead of manual clamping?
Hydraulic clamping provides consistent sealing force, improves testing repeatability, reduces operator influence, and increases production testing efficiency.
To establish a complete wheel testing laboratory, this machine can be combined with:
Wheel Radial Fatigue Testing Machine
Wheel Cornering Fatigue Testing Machine
Wheel Impact Testing Machine
Wheel Dynamic Durability Testing Machine
Wheel Runout Testing Machine
Wheel Balance Testing Machine
Tire and Rim Assembly Testing Equipment
Wheel Material Strength Testing System
Together, these systems provide a comprehensive wheel safety, durability, and quality verification solution.
