Air Pump Comprehensive Performance Test Machine (FH-Q4403)

Five simultaneous performance curves. Four Excel data columns. The complete picture of how a vehicle air pump actually performs.

The FH-Q4403 tests vehicle-mounted air pumps against a programmable target pressure — monitoring positive pressure, flow, and current simultaneously throughout the test and generating five real-time curve views: current vs. pressure, flow vs. pressure, pressure vs. time, and the combined pressure-flow-current vs. time chart that shows how all three parameters interact from zero to target. All data auto-saves to Excel; all curve charts are saveable as files. A no-load test mode measures free-flow and no-load current for baseline motor characterization. Engineering test software is included.

Quick Specs

• Application: Vehicle air pump product standard testing

• Test method: Close bleed valve, run to target pressure, monitor all parameters

• Real-time curves: Flow / current / pressure (all vs. time; current and flow also vs. pressure)

• Saved curves: 5 chart types, all saveable

• Data export: Positive pressure, flow, current, time → Excel automatic

• No-load test: Flow and current at zero back-pressure

• Software: Engineering test software included

• Power: 220V, 1kW

• Test bench: 800 × 1200 × 1610mm (L×W×H)

• Control cabinet: 700 × 650 × 1460mm (L×W×H)

Table of Contents

1. Why Vehicle Air Pump Characterization Requires Curve Analysis, Not Just Pass/Fail

2. Overview of the FH-Q4403 Test Machine

3. Standards and Application Context

4. Five Performance Curve Types: What Each Reveals

5. Design Features of the FH-Q4403

6. Technical Specifications

7. How the FH-Q4403 Testing Process Works

8. Benefits for Air Pump Engineers and Product Teams

9. The Three Feihong Air Pump Testers: FH-Q4402, FH-Q4403, FH-Q4404 — Which One When

10. Real-World Application Scenarios

11. FAQs for the FH-Q4403

12. Related Testing Equipment

13. Get a Quote from Feihong Machine

Why Vehicle Air Pump Characterization Requires Curve Analysis, Not Just Pass/Fail {#section-1}

A pass/fail production test tells you whether a pump's maximum pressure, current, and inflation time meet their specification limits. It does not tell you how the pump behaves between zero and its maximum pressure — how current rises as back-pressure builds, how flow rate changes as the pump approaches stall, whether the pressure-vs-time curve is linear or shows a plateau, or whether the current peak is sharp (indicating a hard stall) or gradual (indicating a soft load characteristic).

These curve shapes matter significantly for vehicle air pump applications:

For product development, the current vs. pressure curve tells the motor designer whether the motor's torque characteristic is matched to the pump's load — a mismatch shows up as a non-monotonic current curve or as an early stall before reaching rated pressure. The flow vs. pressure curve tells the valve and piston designer whether flow is maintained at high back-pressure or whether valve flutter is causing flow instability. The pressure vs. time curve tells the system designer how quickly the product can inflate a tire to target pressure and whether the inflation rate slows significantly in the last 0.2 bar before target.

For standard compliance documentation, GB/T 29283 and similar automotive air pump standards require not just point measurements but performance characterization data — typically presented as curves — to demonstrate that the product's performance envelope is within the standard's requirements across the full operating range.

For supplier qualification and incoming inspection, comparing a new supplier's pressure-flow-current curves against a reference curve from a qualified supplier reveals substitutions in motor design, piston seal material, or valve spring specification that would be invisible to a simple pass/fail check on three endpoint values.

The FH-Q4403 is designed to generate this curve data — accurately, automatically, and in the exportable format that engineering and compliance workflows actually use.

Overview of the FH-Q4403 Test Machine {#section-2}

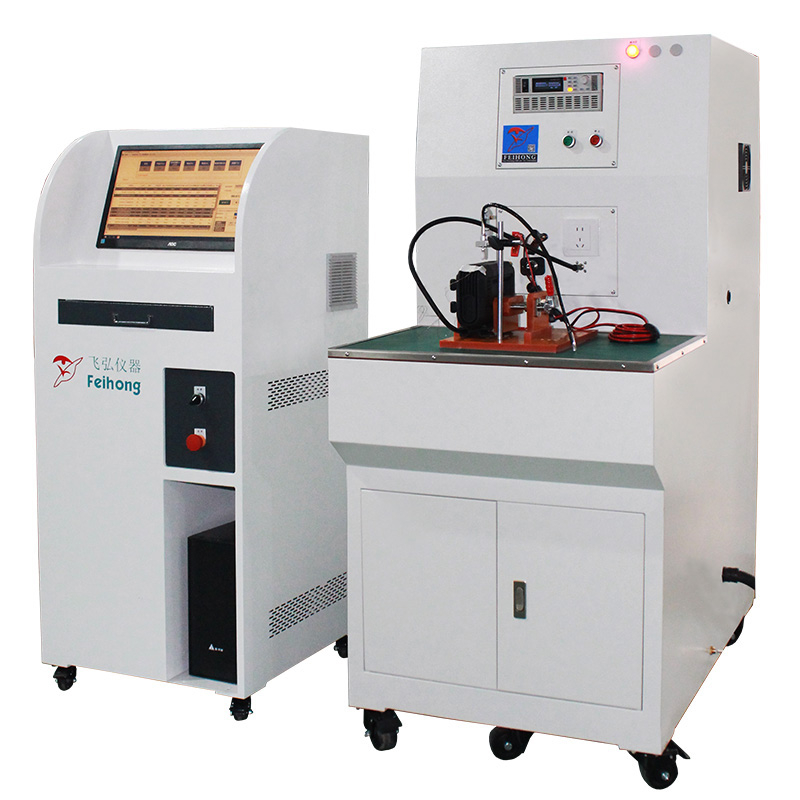

The FH-Q4403 is a single-station vehicle air pump comprehensive performance characterization machine. The pump under test is connected to the machine's pneumatic test circuit; the bleed valve is closed; the pump runs to the programmed target pressure while the machine simultaneously measures pressure, flow, and current at high resolution throughout the run.

The monitoring and visualization system generates five curve types in real time:

1. Flow curve vs. time

2. Current curve vs. time

3. Pressure curve vs. time

4. Current vs. pressure (cross-plot)

5. Flow vs. pressure (cross-plot)

6. Combined pressure + flow + current vs. time (overlay chart)

All curve types are displayed on-screen during the test and saveable as chart files on completion. All underlying data — positive pressure, flow, current, and time — is simultaneously saved to Excel automatically, giving the raw data for custom analysis alongside the pre-generated chart views.

A no-load test mode runs the pump at zero back-pressure (open exhaust), measuring free-flow and no-load current — the baseline motor characterization data that separates motor performance from pneumatic load effects.

Engineering test software is included — designed for technical users who need to configure test parameters, calibrate the measurement system, and work directly with the raw data output.

Standards and Application Context {#section-3}

GB/T 29283 — Portable Tire Inflators (China)

GB/T 29283 specifies performance requirements for portable tire inflators including maximum pressure, rated current, inflation time, and noise. The standard's test methods require measurement of these parameters under defined conditions — the FH-Q4403's pressure, current, flow, and time measurements cover the GB/T 29283 test parameter set, and the curve output provides the characterization data that supports a complete compliance documentation package.

Automotive OEM and Tier-1 Supplier Requirements

Vehicle-mounted air pumps supplied to automotive OEMs or Tier-1 suppliers are typically subject to the automotive customer's own performance specification, which defines not only the endpoint values (maximum pressure, rated current) but also the performance characteristics at intermediate operating points — expressed as curves. The FH-Q4403's curve output is directly compatible with the format in which these specifications are typically expressed and verified.

GB/T 22517 and Sports Equipment Inflation

For air pumps used in sports equipment inflation (basketballs, footballs, air mattresses), the relevant performance metrics (inflation time, final pressure, flow at back-pressure) correspond directly to the FH-Q4403's measurement capabilities, making the machine applicable beyond purely automotive air pumps to any pump product where detailed performance characterization is required.

Export Markets

For pump products exported to the EU, North America, or Southeast Asia, buyers and regulatory bodies increasingly request performance characterization data alongside point-measurement compliance certificates. The FH-Q4403's Excel output and saveable curve files provide the documentation format that international technical buyers expect.

Five Performance Curve Types: What Each Reveals {#section-4}

Curve 1: Current vs. Time — I=f(t)

What it shows: How current drawn by the pump motor changes from startup to target pressure.

What it reveals:

• Startup current peak: The initial inrush current at motor start — an important thermal and electrical stress parameter

• Steady-state current: The current during the main pressurization phase — determines motor temperature rise under rated load

• Stall current and timing: The current at maximum pressure just before shutoff — indicates whether the motor reaches stall cleanly or exhibits current instability near maximum pressure

Engineering application: Used to size the power supply, verify thermal management design, and confirm the motor's rated current stays within the motor specification across the full operating range.

Curve 2: Flow vs. Time — Q=f(t)

What it shows: The volumetric flow rate delivered by the pump as it pressurizes the test circuit over time.

What it reveals:

• Initial flow rate: Peak flow at low back-pressure — an indicator of piston displacement and valve efficiency

• Flow at intermediate pressures: How flow rate changes as back-pressure builds — piston seal condition and valve flutter are visible as non-smooth flow trends

• Flow at near-maximum pressure: The flow rate just before reaching target pressure — determines how long the last incremental pressure step takes

Engineering application: Used to characterize the pump's volumetric efficiency across the operating range and to predict inflation time for different tire or vessel volumes.

Curve 3: Pressure vs. Time — P=f(t)

What it shows: How pressure in the test circuit builds from zero to target pressure.

What it reveals:

• Inflation rate: The slope of the pressure curve indicates how fast the pump adds pressure — a slowing slope indicates decreasing flow rate at higher pressure

• Pressure curve shape: Linear indicates constant flow; decelerating curve indicates flow reduction at high back-pressure; plateau indicates incipient stall before reaching target

• Time to target pressure: The total inflation time from the curve endpoint

Engineering application: Used to verify inflation time specification compliance and to predict actual tire inflation time for specific tire volumes and starting pressures.

Curve 4: Current vs. Positive Pressure — I=f(P)

What it shows: The pump motor's current as a function of the back-pressure it is pumping against — the motor's electrical load characteristic.

What it reveals:

• Load-current relationship: Should be monotonically increasing for a well-matched motor-pump system; any non-monotonic region indicates a torque characteristic mismatch or mechanical irregularity

• Current at rated pressure: Confirms the motor draws within its rated current at the design operating point

• Stall current margin: The current at maximum pressure vs. the motor's rated maximum current determines the safety margin against motor burnout at stall

Engineering application: Used to verify motor-pump matching, size protection fuses or PTC elements, and characterize the system for thermal analysis.

Curve 5: Flow vs. Positive Pressure — Q=f(P)

What it shows: The pump's volumetric flow rate as a function of back-pressure — the pump's hydraulic performance curve.

What it reveals:

• Free-flow rate (at zero pressure): The maximum flow rate the pump produces — measures piston displacement and valve efficiency at no load

• Flow at rated pressure: The flow rate at the design operating back-pressure — determines inflation time in actual use

• Shut-off pressure: The pressure at which flow drops to zero — the pump's maximum pressure capability

Engineering application: The Q-P curve is the standard form for characterizing any pump or compressor. Used to predict performance at any operating point, compare different pump designs, and verify that the pump covers the operating range of its intended application.

Curve 6: Combined P + Q + I vs. Time

What it shows: All three parameters simultaneously on a shared time axis — the complete dynamic picture of the pump's startup-to-maximum-pressure event.

What it reveals: The temporal relationship between pressure rise, flow rate change, and current draw — showing whether current peaks before, during, or after the main flow phase; whether pressure plateaus correlate with current spikes; and the exact timing of any anomalous events during the pressurization sequence.

Engineering application: Used for comprehensive performance review, quality baseline documentation, and comparison between design variants or production batches.

Design Features of the FH-Q4403 {#section-5}

Simultaneous Three-Parameter Real-Time Measurement

Pressure, flow, and current are all measured and displayed simultaneously throughout the test — not sequentially. This is essential for generating the cross-parameter curves (current vs. pressure, flow vs. pressure) that require simultaneous readings at each instant; sequential measurement would produce the same time-series but would not allow the cross-parameter curves to be plotted accurately.

Five Curve Views with Real-Time Display

All five curve types are generated in real time during the test, displayed on screen. The operator can observe any anomaly — a current spike, a flow dip, a pressure plateau — as it happens, without waiting for the test to complete and the data to be analyzed. Saveable chart files allow the post-test curve to be archived alongside the Excel data.

Automatic Excel Data Export

All four parameters — positive pressure, flow rate, current, and time — are automatically saved to Excel on test completion, formatted for direct use in engineering analysis or compliance documentation. No manual transcription, no copy-paste from a proprietary format. The Excel file can be immediately opened in any spreadsheet application for custom plotting, statistical analysis, or insertion into test reports.

No-Load Test Mode

The no-load test runs the pump with the exhaust open — zero back-pressure — measuring:

• Free-flow rate: Maximum volumetric output without resistance — characterizes the pump's displacement efficiency independently of valve and seal effects at back-pressure

• No-load current: Motor current without mechanical load — characterizes motor electrical efficiency and provides the baseline for comparing loaded vs. unloaded motor behavior

Free-flow and no-load current are the two motor characterization data points that separate motor contribution from pneumatic component contribution in overall pump performance — used in R&D to attribute performance differences to their correct subsystem.

Engineering Test Software

The included engineering test software provides the calibration, parameter configuration, and data analysis interface for technical users. This goes beyond the simpler pass/fail interfaces typical of production machines — the engineering software supports sensor calibration, test parameter documentation, raw data access, and custom curve configuration appropriate for R&D and compliance testing use cases.

Technical Specifications of the FH-Q4403 {#section-6}

Measurement and Output

Curve Types Generated

Data Output

Software

Physical and Electrical

Why These Specifications Matter

• Simultaneous three-parameter measurement is the architectural requirement for accurate cross-parameter curves. If pressure, flow, and current are measured sequentially (or by separate instruments that aren't time-synchronized), the cross-parameter plots (current vs. pressure, flow vs. pressure) will contain timing errors that distort the curve shape — particularly at the rapid-change regions near startup and near stall.

• Six curve types from one test means the complete picture of pump performance is captured in a single pressurization run — the engineer does not need to run separate tests for each curve type. All six derive from the same dataset, collected in one test.

• Excel auto-save is the practical specification for how engineers actually work with performance data: Excel for calculations, comparison charts, test reports, and sharing with team members. A proprietary data format that requires conversion steps adds friction to every analysis step.

• No-load test mode provides the free-flow / no-load current baseline that allows performance attribution — the engineer can compare loaded and unloaded performance and identify which component (motor, valves, seals) is limiting overall performance.

• Engineering software distinguishes this machine from a simple production tester: calibration access, raw data access, configurable test parameters, and analysis tools are features that R&D and compliance testing users need that production line operators typically do not.

How the FH-Q4403 Testing Process Works {#section-7}

Step 1: Pump Connection and Test Setup

The vehicle air pump under test is connected to the test circuit. The bleed/exhaust valve is closed (to build positive pressure in the test volume). Target pressure is set in the engineering software. Measurement parameters (sensors, calibration) are confirmed.

Step 2: No-Load Test (Optional)

With the exhaust valve open (no back-pressure), the pump is run briefly to measure free-flow rate and no-load current — the motor's baseline electrical and mechanical performance without pneumatic loading.

Step 3: Pressurization Test (Main Test)

The pump runs with the bleed valve closed, pressurizing the test circuit to the target pressure. The system simultaneously measures and logs positive pressure, flow, and current throughout the run at high time resolution. All six curve types are plotted in real time on the display.

Step 4: Data Save

On test completion:

• All curve charts are saved as files (operator-named or auto-named)

• All numeric data (positive pressure, flow, current, time) is auto-exported to Excel

Step 5: Analysis and Reporting

The engineer reviews the curves on-screen, opens the Excel file for statistical analysis or custom plotting, and inserts the saved curve images and Excel data into the compliance test report or engineering analysis document.

Benefits for Air Pump Engineers and Product Teams {#section-8}

Complete Performance Map from One Test Run

A single pressurization run generates six curve views and four-column Excel data that characterizes the pump's complete operating envelope — from free-flow at zero back-pressure to stall at maximum pressure. No re-running, no reconfiguration between curve types.

Engineering-Grade Documentation for Compliance and Development

Excel Output Integrates Directly into Engineering Workflow

The four-column Excel output (pressure, flow, current, time) is immediately available for:

• Custom plot generation in Excel or Python/MATLAB

• Statistical analysis across multiple test units

• Insertion into test reports

• Comparison with reference data from previous designs or suppliers

No conversion, no export step, no proprietary file to work around.

No-Load Baseline Separates Motor from Pneumatic Components

Comparing no-load current to loaded current at the same pressure quantifies how much of the performance difference between units is attributable to motor variation versus pneumatic component (valve, seal, piston) variation — a diagnostic tool that shortens root cause analysis when batch-to-batch performance variation is observed.

The Three Feihong Air Pump Testers: FH-Q4402, FH-Q4403, FH-Q4404 — Which One When {#section-9}

Feihong Machine offers three air pump test machines that serve complementary purposes across the product lifecycle. Understanding which machine answers which question clarifies the right investment for your program:

When to use FH-Q4403 only: Standalone R&D characterization or compliance documentation for a product that is already validated for life; no production QC requirement (e.g., small-volume custom or research pump).

When to use FH-Q4402 + FH-Q4403: Development program where both detailed performance curves (FH-Q4403) and life validation (FH-Q4402) are required before production release.

When to use FH-Q4403 + FH-Q4404: Compliance documentation and supplier qualification (FH-Q4403) plus production 100% QC (FH-Q4404) for a product with a known, validated life.

Complete program (all three): Development characterization → FH-Q4403; Life validation → FH-Q4402; Production QC → FH-Q4404.

Real-World Application Scenarios {#section-10}

A vehicle accessory manufacturer developing a new 12V tire inflator used the FH-Q4403's current vs. pressure curve to identify a mismatch between the motor's torque characteristic and the pump's load profile — the current was non-monotonic between 2.0 and 2.5 bar, indicating a region where the motor was producing insufficient torque to maintain smooth pressurization. The curve immediately localized the problem to the motor's back-EMF characteristic at that speed range, allowing the motor supplier to adjust the rotor winding specification. The same test on the revised motor showed a clean monotonically-increasing current curve.

An automotive Tier-1 supplier qualifying a new pump source used the FH-Q4403 to generate a reference curve set (current-pressure, flow-pressure, pressure-time) from the existing qualified supplier, then ran the new supplier's samples through the same test and overlaid the curves. The new supplier's flow-pressure curve showed 15% lower flow at back-pressures above 2.0 bar — invisible in the endpoint maximum pressure measurement but clearly visible in the curve comparison. The difference was traced to a smaller inlet valve diameter in the new supplier's design, which the customer required to be corrected before qualification was granted.

A compliance engineer preparing a GB/T 29283 test submission used the FH-Q4403 to generate the pressure-time curve and current measurements required by the standard, then used the Excel export to populate the test report template with the logged numeric data. The combined curve file and Excel data constituted the test evidence package for the submission.

FAQs for the FH-Q4403 {#section-11}

What parameters does the FH-Q4403 measure?

Positive pressure, volumetric flow rate, current, and time — all measured simultaneously throughout the test run.

How many curve types does it generate from one test?

Six: current vs. time, flow vs. time, pressure vs. time, current vs. pressure, flow vs. pressure, and a combined overlay of pressure + flow + current vs. time. All six derive from the same test dataset and are generated in one run.

How is data exported?

Automatically to Excel at test completion — four columns of numeric data (positive pressure, flow, current, time) with no manual export step. Curve chart images are separately saveable as files.

What is the no-load test mode?

With the exhaust open (zero back-pressure), the pump runs briefly to measure free-flow rate and no-load current — characterizing the motor's baseline electrical and mechanical performance without pneumatic loading. This baseline is compared to loaded performance to attribute differences to motor vs. pneumatic components.

How does this machine differ from the FH-Q4404 production tester?

The FH-Q4404 runs six fast pass/fail parameter checks on four units simultaneously for production QC. The FH-Q4403 generates detailed pressure-flow-current curves and Excel exports for a single unit — used in R&D, compliance, and supplier qualification where the complete performance picture is needed, not just endpoint pass/fail values.

Is it suitable for compliance testing to GB/T 29283?

Yes. The FH-Q4403 measures the parameters required by GB/T 29283 (positive pressure, current, inflation time) and generates the curve and data output formats used in standard compliance documentation packages.

What is meant by "engineering test software"?

The included software provides calibration tools, test parameter configuration, raw data access, and analysis features suited to technical users — product engineers, R&D engineers, and compliance engineers — who need to customize the test setup and work directly with measurement data. This contrasts with the simpler operator interfaces typical of production QC machines.

Related Testing Equipment {#section-12}

• 4-Station Air Pump Production Line Performance Test Machine (FH-Q4404) — six pass/fail parameter tests on four units simultaneously for production line QC; uses the performance specification established by FH-Q4403 characterization as its pass/fail limits

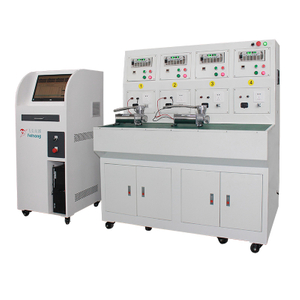

• 4-Station Air Pump Life Endurance Test Machine (FH-Q4402) — ON/OFF cycle, pressure-range cycle, and constant-pressure life testing on four simultaneous stations; used alongside FH-Q4403 for complete design validation

• Leakage Rate / Air Tightness Tester — dedicated precision leak testing for pump sub-assemblies before final performance characterization

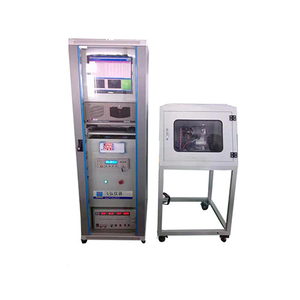

• Motor Performance Test Bench — isolated motor characterization (torque, speed, efficiency, thermal) upstream of pump assembly; complements the FH-Q4403's loaded pump characterization with motor-only baseline data
