FH-Q4401
Feihong

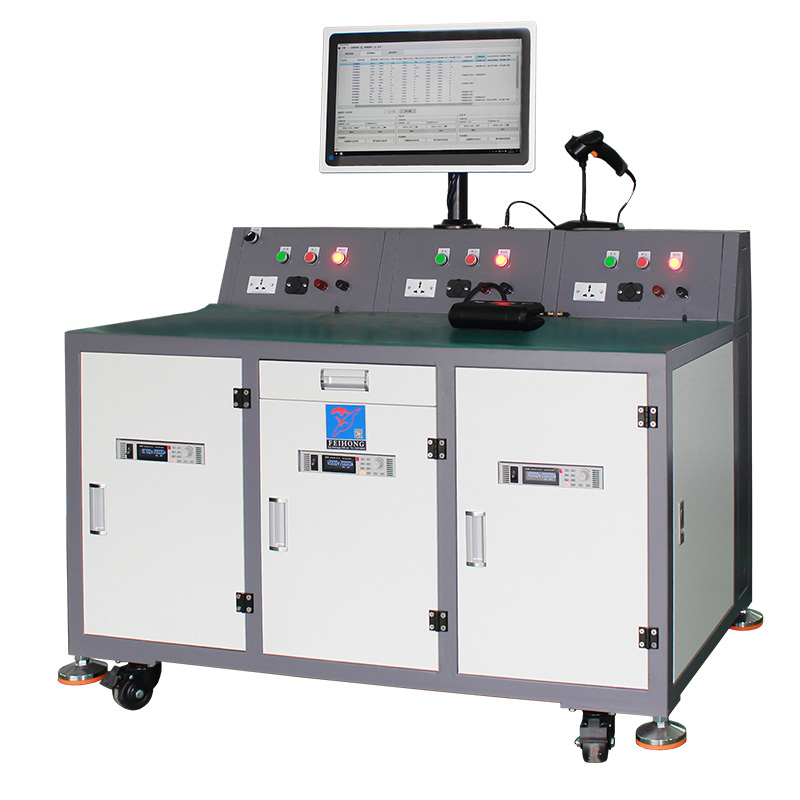

FH-Q4401 In-Line Air Pump Performance Tester – Full-Cycle Electrical and Pressure Testing for Production QC
A dedicated production-line testing machine for air pumps, running a complete sequence of no-load current detection, load flow measurement, maximum current tracking, maximum pressure testing, high-pressure start testing, and high-pressure leak testing. Designed for 100% in-line inspection, the FH-Q4401 helps manufacturers catch blocked, underperforming, or leaking pumps before they leave the factory. Test precision is customizable to each customer's product specification and tolerance requirements.
[Contact us for a quote / technical datasheet]
Introduction to the FH-Q4401 Air Pump Production Line Performance Testing Machine
Design and Construction of the FH-Q4401
Technical Specifications and Test Sequence
Key Features for Reliable In-Line Pump Testing
Applications and Use Cases
How the FH-Q4401 Works in Practice
Why Choose the Feihong FH-Q4401?
Customization and Precision Support
Frequently Asked Questions (FAQ)
Related Products and Accessories
Get in Touch
The FH-Q4401 Air Pump Production Line Performance Testing Machine runs six connected tests — no-load current/blockage, load flow, max current, max pressure, high-pressure start (3 cycles), and high-pressure leak testing — in a single automated station, giving manufacturers a fast, repeatable way to verify every pump before it ships.
The Feihong FH-Q4401 is built for one job: verifying that every air pump coming off the production line performs correctly across its full operating range, from a free-spinning no-load state up to maximum working pressure. Rather than checking a single parameter, the FH-Q4401 runs a connected sequence of electrical and pneumatic tests, giving QC teams a complete performance profile for each unit in a single test cycle.
Catches Blocked or Faulty Pumps Early: No-load current testing flags gas blockage or mechanical faults before the pump is even put under pressure.
Confirms Real-World Output: Load flow testing measures actual delivered flow under working pressure, not just electrical draw.
Protects Against Overcurrent Failures: Max current tracking across the full pressure range highlights pumps that draw excessive current as pressure builds.
Verifies Starting Reliability: The 3-cycle high-pressure start test checks whether the pump can reliably restart against a pressurized load, a common real-world failure mode.
Confirms Seal Integrity: High-pressure leak testing checks the pump and its connections for leaks at working pressure.
Customer-Specific Precision: Test precision can be configured to match each customer's product tolerance requirements.
Feature | Benefit |
|---|---|
No-load current & blockage test | Detects electrical and mechanical faults before pressure testing |
Load flow test | Confirms real delivered flow under working pressure |
Max current test | Tracks current draw across the full no-load-to-max-pressure range |
Max pressure test | Confirms the pump reaches its rated maximum pressure |
High-pressure start test (3 cycles) | Verifies restart reliability under pressurized load |
High-pressure leak test | Confirms seal and connection integrity at working pressure |
Customizable test precision | Matches each customer's product tolerance requirements |
This test sequence makes the FH-Q4401 well suited to 100% in-line QC, incoming inspection of purchased pump units, and end-of-line performance verification for air pump manufacturers and assemblers.
The FH-Q4401 is built as an in-line production testing station, sequencing electrical and pneumatic measurements so that a single pump can be run through the full no-load-to-max-pressure profile without manual reconfiguration between steps. The system captures current readings continuously through the pressure ramp, so the maximum current point is recorded automatically rather than estimated from spot checks.
The high-pressure start test cycles the pump through three consecutive starts against a pressurized load, replicating the repeated-restart conditions a pump may see in the field. A separate high-pressure leak test stage checks the pump body and fittings for leakage once the unit reaches working pressure.
Because pump specifications vary by model and customer, the FH-Q4401's test precision is configured per application rather than fixed at a single tolerance, allowing the same machine to support multiple pump product lines with different QC requirements.
Test Stage | What It Measures |
|---|---|
No-load test | Air pump current draw at no load, and detection of gas blockage |
Load flow test | Air pump flow rate under load pressure |
Max current test | Maximum current drawn by the pump from no-load through to maximum pressure |
Max pressure test | The air pump's maximum achievable pressure |
High-pressure start test | Pump starting capability under high-pressure load, run for 3 consecutive starts |
High-pressure leak test | Leak detection at high pressure; test precision customized to customer requirements |
Feature | Benefit |
|---|---|
Six-stage automated sequence | Covers electrical, flow, and pressure performance in one continuous test cycle |
No-load blockage detection | Identifies mechanically blocked or faulty units before pressure is applied |
Continuous current tracking | Captures true max current across the full pressure ramp, not just at fixed checkpoints |
3-cycle high-pressure start test | Reveals restart failures that a single-start test would miss |
High-pressure leak check | Confirms seal and fitting integrity under working pressure |
Configurable test precision | Adapts to different pump models and customer tolerance specs |
Together, these features let production teams verify pump performance comprehensively at line speed, rather than relying on sample-based or single-parameter checks.
Run every pump through the full no-load-to-max-pressure sequence before packing, catching blocked, underpowered, or leaking units before they reach the customer.
Manufacturers who purchase pump modules from suppliers can use the FH-Q4401 to verify incoming units meet current, flow, and pressure specifications before assembly into finished products.
For products such as inflators, tire pumps, or pneumatic devices built around an air pump, the FH-Q4401 can serve as a final performance checkpoint before shipment.
R&D teams can use the max current, max pressure, and high-pressure start data to compare pump designs or motor/compressor combinations during development.
Because test precision is configurable, the same machine can support multiple product lines or customer specifications without hardware changes.
Pump Mounting and Setup
Connect the air pump to the test station's electrical and pneumatic interfaces.
Configure test precision and pass/fail thresholds for the specific pump model being tested.
Running the Test Sequence
No-load stage: The pump runs unloaded while current is measured and checked for signs of blockage.
Load flow stage: A working pressure load is applied and flow rate is measured.
Max current stage: Current is tracked continuously as pressure rises from no-load to maximum, capturing the peak value.
Max pressure stage: The pump is run to its maximum achievable pressure.
High-pressure start stage: The pump is started three consecutive times against a high-pressure load to verify restart reliability.
High-pressure leak stage: The pressurized pump and connections are checked for leakage at the configured test precision.
Recording and Evaluation
Results from each stage are captured for the unit under test.
Pass/fail evaluation is applied against the configured customer-specific tolerances.
Data can be used for line-level yield tracking and supplier quality reporting.
Benefit | Details |
|---|---|
Complete Performance Profile | Six connected test stages cover electrical, flow, and pressure behavior in one cycle. |
Early Fault Detection | No-load blockage testing and continuous current tracking catch problems other single-point tests miss. |
Realistic Reliability Check | The 3-cycle high-pressure start test reflects real-world restart conditions. |
Leak-Tight Verification | High-pressure leak testing confirms seal integrity at working pressure. |
Adaptable to Your Product | Configurable test precision supports multiple pump models and customer specifications. |
Overall, the FH-Q4401 gives air pump manufacturers a single-station way to verify electrical, flow, and pressure performance before pumps leave the production line.
Every air pump product has its own current, flow, and pressure tolerance requirements. The FH-Q4401's test precision — particularly for the high-pressure leak test — is configured to match each customer's specification rather than fixed at the factory. When requesting a quote, share your pump's rated voltage/current, target flow and pressure ranges, and required leak-test sensitivity so the test station can be configured accordingly.
It measures the air pump's current draw while running unloaded and checks for gas blockage, helping identify mechanical or electrical faults before pressure testing begins.
The load flow test measures the air pump's flow rate while it operates under load pressure, confirming real delivered output rather than just electrical performance.
Current is tracked continuously as the pump runs from no-load through to its maximum pressure, and the highest reading in that range is recorded as the max current.
The high-pressure start test starts the pump three consecutive times under high-pressure load to verify reliable restart performance.
It checks the pump and its connections for leakage at high pressure. Test precision for this stage is customized based on the customer's specific requirements.
Yes. Test precision, particularly for the high-pressure leak test, is configured per customer and product specification rather than fixed.
Question | Answer |
|---|---|
No-load test | Current draw + blockage detection |
Load flow test | Flow rate under load pressure |
Max current test | Peak current from no-load to max pressure |
Max pressure test | Pump's maximum achievable pressure |
High-pressure start test | 3 consecutive starts under high-pressure load |
High-pressure leak test | Leak detection; precision customized per customer |
To build a complete air pump / compressor QC line around the FH-Q4401, consider pairing it with:
Car Air Pump Comprehensive Performance Testing Machine (FH-Q4403) — for broader multi-parameter performance testing of finished car air pump products.
Pump Noise & Vibration Testing Equipment — for evaluating acoustic and vibration performance alongside pressure and flow.
Motor Life & Durability Test Bench — for long-cycle endurance testing of the pump's drive motor.
(Internal linking suggestion: link each item above to its corresponding product page once published, and add a reciprocal link back to this FH-Q4401 page from those pages' "Related Products" sections.)
Looking to automate in-line performance testing for your air pump production? Contact Feihong Machine for a detailed technical datasheet, a customized quote, or to discuss configuring test precision for your specific pump model.
