FH-Q4402
Feihong
500 cycles. 5,000 cycles. 50,000 cycles. Four pumps running simultaneously. The computer watches everything.
The FH-Q4402 runs four air pumps through the full life test sequence simultaneously — ON/OFF duty cycle control, pressure-range cycling with automatic solenoid deflation, and constant-pressure endurance runs — logging inflation count, inflation time, and peak current for every single cycle at up to 1-second data resolution. The computer stops the test the moment any pump exceeds its current limit or fails to complete a cycle within the allowed time. Designed for product development validation, design verification, and reliability analysis of portable air pumps, tire inflators, and similar 12V/30A products.
Quick Specs
Stations: 4 simultaneous
Test modes: ON/OFF timer cycle / Pressure-range cycle / Constant-pressure life
ON/OFF control: X min ON, X min OFF (programmable)
Pressure cycling: From X pressure to X pressure (programmable range)
Deflation: Automatic solenoid valve; pump can be set to stop during deflation
Cycle count: Programmable; minimum 500 cycles recordable
Data recording: Computer auto-record, minimum 1 record per second
Recorded data per cycle: Inflation count, inflation time, maximum current
Auto-stop: Overcurrent (settable) / Single-cycle time exceeded (settable)
Power supply for pumps: 12V / 30A
Why Air Pump Life Testing Requires a Different Machine from Production QC Testing
Overview of the FH-Q4402 Life Test Machine
Standards and Reliability Requirements for Air Pump Life Testing
Three Life Test Modes
Design Features of the FH-Q4402
Technical Specifications
How the FH-Q4402 Testing Process Works
Benefits for Air Pump Manufacturers and R&D Labs
FH-Q4402 vs. FH-Q4404: Life Testing vs. Production Line Testing
Real-World Application Scenarios
FAQs for the FH-Q4402
Related Testing Equipment
Get a Quote from Feihong Machine
Production QC testing and life testing ask fundamentally different questions about an air pump.
Production QC testing (the FH-Q4404's purpose) asks: Is this specific unit within specification right now? — at the end of the assembly line, before shipment. The test is fast (seconds to minutes per unit), covers six performance parameters, and must keep pace with production output. Every unit goes through it; passing units ship.
Life testing (the FH-Q4402's purpose) asks: How long will a pump of this design continue to operate within specification under real-world use conditions? — across hundreds or thousands of hours of simulated use. The test is long (hours to weeks), tracks degradation over time, and applies to a sample of units rather than every unit. The results determine whether the design meets its rated service life, where it fails when it does fail, and what the failure mode is.
These two questions require different machine architectures:
Life testing needs programmable duty cycles (ON/OFF timing that replicates real use patterns — a tire inflator that runs for 5 minutes, rests for 30 minutes, runs again — rather than continuous operation that doesn't represent how the product is used)
Life testing needs pressure range cycling (pumping from low to high pressure repeatedly, with automatic deflation between cycles, replicating the load variation of real inflation events)
Life testing needs high-resolution time-series data (logging current, time, and pressure at up to 1-second resolution across thousands of cycles, so the point at which degradation begins is precisely identified)
Life testing needs automatic failure detection (current exceedance and cycle-timeout auto-stop with exact failure cycle logged, because no operator monitors a multi-thousand-cycle test in real time)
The FH-Q4402 is built around these life-test requirements — not production throughput optimization. It runs four pumps simultaneously to maximize the number of units under life test at once, but its value is in the quality and resolution of the data it generates over time, not in the speed of its per-unit cycle.

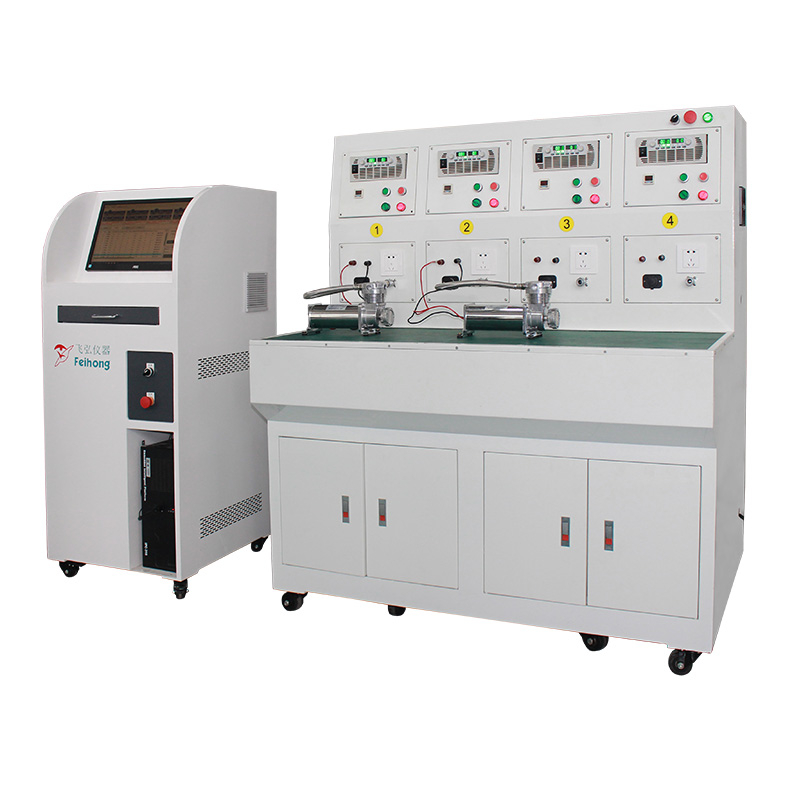

The FH-Q4402 is a 4-station simultaneous air pump life endurance tester with three programmable test modes: ON/OFF duty cycle, pressure-range cycling, and constant-pressure endurance. All four stations run in parallel — the same test program on all four units, or independently configured programs depending on the test objective.
The machine is powered by a 12V/30A supply — matching the electrical specification of automotive-grade portable tire inflators and similar 12V consumer/automotive air pumps. Each station connects the pump under test to the machine's pneumatic circuit; an automatic solenoid valve controls deflation between pressure cycles; the computer controls pump ON/OFF timing, records test data at up to 1-second resolution, and monitors current and cycle timing continuously.
On every cycle, the computer records three data items for each station: inflation count (cumulative cycle number), inflation time (time to reach the programmed upper pressure), and maximum current (peak current drawn during that inflation cycle). These three data items, accumulated over hundreds to thousands of cycles, build the time-series picture of pump degradation that life test analysis requires.
Auto-stop conditions protect the test and document failure: if any pump's current exceeds the set limit, or if any pump fails to complete a cycle within the allowed time, that station's pump stops and the failure cycle number is logged. The other three stations continue unaffected.
Application | Typical Life Target | Key Life Failure Mode |
|---|---|---|
Portable tire inflator (automotive) | 300–500 inflation cycles | Motor brush wear, commutator erosion, bearing failure |
Roadside emergency air pump | 100–200 inflation events | Motor insulation degradation at peak temperature |
Consumer sports equipment pump | 500–1,000 cycles | Piston seal wear, valve seat fatigue |
Blood pressure monitor pump | 10,000–50,000 cycles | Diaphragm fatigue, valve reed fatigue |
Industrial air sampling pump | 100,000+ cycles | Diaphragm material fatigue |
The FH-Q4402's minimum 500-cycle recording capability covers portable inflator life targets; its programmable cycle count extends to whatever total is required for higher-cycle applications.
GB/T 29283 (China) — Portable tire inflators: includes rated cycle life requirements and defines the duty cycle test method (ON time, OFF time, back-pressure for each cycle) against which the FH-Q4402's ON/OFF and pressure-cycle modes are configured.
IEC 60335-2 series — Safety requirements for household and similar electrical appliances: includes endurance test requirements for motor-driven appliances that apply to consumer air pumps. Test cycle counts and duty cycles defined in IEC 60335-2 product-specific parts inform the FH-Q4402's programmable cycle and timing parameters.
ISO 13485 / ISO 9001 — Quality management system requirements: life test data generated by the FH-Q4402 with automatic computer logging supports the design validation documentation required for product qualification under ISO 13485 (medical devices) and the design verification records required under ISO 9001 general quality management systems.
IEC 60068 — Environmental testing: life tests are often run at elevated temperature to accelerate aging. While the FH-Q4402 tests at ambient conditions, it can be used in combination with a temperature chamber for thermally-accelerated life testing of pumps placed inside the chamber.
Configuration: X minutes ON / X minutes OFF, repeating for the programmed cycle count.
What it simulates: Real-world use patterns where the pump operates for a defined period, then rests before the next use event. For a portable tire inflator, this might be 5 minutes ON (one tire inflation) / 30 minutes OFF (driving to the next tire); for a blood pressure monitor pump, it might be 15 seconds ON / 5 minutes OFF (one measurement cycle).
Data captured per cycle:
Inflation count (cumulative)
ON-time duration per cycle (actual vs. expected — deviation indicates motor slowdown)
Maximum current per ON period
Why this mode matters: Continuous-run tests (running the pump without rest) do not replicate real use and may produce different failure modes than actual service. A pump that fails after 200 hours of continuous running might survive 2,000 real-use cycles if the cycles allow sufficient cooling. Or conversely, a pump that passes continuous tests might fail earlier under duty cycles that produce thermal cycling stress at the brush-commutator interface. Only duty-cycle testing gives realistic life data.
Configuration: Cycle from X pressure (lower limit) to X pressure (upper limit), with automatic solenoid valve deflation between cycles. Pump can be set to stop or continue running during the deflation phase. Programmable cycle count.
What it simulates: Repeated inflation events — each cycle pressurizes the circuit from the lower pressure (simulating a starting condition) to the upper pressure (simulating full inflation), then deflates back to the lower pressure for the next cycle. This is the most direct simulation of how a tire inflator is used: inflate to target, remove from tire (pressure drops), reinflate.
Data captured per cycle:
Cycle count (cumulative)
Time per inflation phase (lower to upper pressure) per cycle — trend identifies flow rate degradation
Maximum current per cycle — trend identifies motor condition change
Engineering value: The pressure-range cycle accumulates the stress events most associated with pump wear mechanisms — the motor starting current transient at the beginning of each inflation (brush-commutator arc stress), the peak current at upper pressure (winding temperature stress), and the load reversal at deflation (valve spring fatigue). Running 500–5,000 of these cycles and watching the inflation-time trend and current trend identifies where and when each degradation mechanism begins.
Deflation control: The automatic solenoid valve on the deflation path is controlled by the computer. Setting the pump to stop during deflation gives the pump a rest period between cycles; setting the pump to continue running during deflation tests a different wear profile (continuous motor run, load cycling from back-pressure variation).
Configuration: The pump runs against a fixed back-pressure (constant load condition) for the programmed duration or cycle count.
What it simulates: Continuous operation at a defined load point — used to evaluate motor thermal performance, brush and commutator wear at a defined operating point, and steady-state mechanical fatigue of valves and seals.
Data captured: Current, operating time, any deviation from the expected operating parameters.
Use case: Constant-pressure testing is used for regulatory compliance tests that specify a defined load and duration (e.g., IEC 60335-2 endurance tests at rated operating conditions), and for accelerated thermal testing of motor windings where a continuous high-current condition is maintained to stress the insulation system.
All four stations run the same test program in parallel — four pumps accumulating cycles at the same time. For life tests that run for days or weeks, this means four life test data sets are generated in the time it would take a single-station machine to generate one. For product development programs where multiple design variants are being compared, four stations can run different variants simultaneously under identical conditions — the most statistically valid comparative method.
The computer logs all monitored parameters at up to 1-second intervals throughout the test. For a pump cycling at 5 minutes ON / 30 minutes OFF, 1-second resolution means 300 data points per ON period — enough to characterize the current waveform at motor startup, track any mid-cycle current trend, and capture the exact moment of any anomaly. All data is time-stamped and cycle-stamped.
This data density is what makes the difference between a simple cycle counter (did the pump survive 500 cycles? yes/no) and a genuine life characterization test (at which cycle did inflation time begin to increase? at which cycle did peak current begin to decrease? what is the rate of degradation?).
The system maintains detailed records for a minimum of 500 cycles per station — retaining the complete data set from every cycle for post-test analysis. For higher cycle count applications, the recording capacity is configurable beyond the 500-cycle minimum.
Two auto-stop conditions are monitored per station independently:
Overcurrent stop: If any pump's current exceeds the independently set threshold on any cycle, that station's pump stops immediately. The failure cycle number and the current value at failure are logged. The other three stations continue unaffected.
Cycle-timeout stop: If any pump fails to complete its inflation cycle (lower to upper pressure) within the programmed time limit, that station's pump stops. The failure cycle number and the actual elapsed time are logged.
Station-selective stopping means a single unit's failure does not abort the test for the other three — maximum information is extracted from all four samples in a single test run.
The deflation path uses an automatic solenoid valve controlled by the computer — the deflation event is precisely timed, consistent between cycles, and logged. The computer also controls whether the pump stops or continues running during deflation, which changes the stress profile applied to the pump and allows the test to be configured for the specific failure mode under investigation.
The machine powers the pumps under test from a 12V/30A supply — the voltage and current range of automotive-grade portable tire inflators and similar products. At 12V / 30A, the supply capacity is sufficient to power four simultaneously operating high-current pumps (up to 7.5A per station) without supply voltage sag that would distort the current measurements.
Test Mode | Key Programmable Parameters |
|---|---|
ON/OFF duty cycle | ON duration (min), OFF duration (min), total cycle count |
Pressure-range cycle | Lower pressure, upper pressure, pump state during deflation, cycle count |
Constant-pressure | Target pressure, test duration or cycle count |
Specification | Details |
|---|---|
Recording method | Computer automatic |
Recording interval | Up to 1 record per second (minimum) |
Recorded parameters | Inflation count, inflation time per cycle, maximum current per cycle |
Minimum recorded cycles | 500 per station |
Condition | Trigger | Action |
|---|---|---|
Overcurrent | Current exceeds preset threshold | Stop that station; log failure cycle and current |
Cycle timeout | Cycle duration exceeds preset time | Stop that station; log failure cycle and elapsed time |
Specification | Details |
|---|---|
Stations | 4 (simultaneous) |
Pump power supply | 12V / 30A |
Deflation control | Automatic solenoid valve (computer-controlled) |
Station independence | Each station stops independently on failure |
1-second data resolution is the specification that allows degradation trending rather than just endpoint pass/fail. At 1-second resolution for a 5-minute inflation cycle, 300 data points are captured per cycle. Inflation time trends visible over 300+ cycles with this resolution allow prediction of remaining life before actual failure — the most valuable output of a well-instrumented life test.
500-cycle minimum recording is the baseline for portable tire inflator life test data: if a pump is rated for 300 inflation cycles and the test runs to 500, all 500 cycles' worth of data is retained. Machines that only log cumulative counts without per-cycle detail cannot answer the question "when did degradation begin?"
Station-independent auto-stop maximizes the information extracted from each test run: in a population of four nominally-identical pumps, the failure times will not be identical (reliability testing is inherently statistical). Stopping all four stations when the first one fails discards the remaining three units' time-to-failure data — critical information for Weibull analysis or other life data statistics.
12V/30A supply directly matches the electrical specification of automotive-grade portable air pumps. Testing at the rated supply voltage and current capacity gives representative motor performance data; testing at an under-rated supply would produce optimistic current and performance data.
Four pumps are connected to their respective stations — pump outlet to the test circuit, pump power leads to the 12V station supply. Station connections are verified before the test program starts.
The operator selects the test mode (ON/OFF cycle, pressure-range cycle, or constant-pressure) and enters the parameters on the computer:
ON time / OFF time for duty cycle mode
Lower and upper pressure, deflation settings for pressure-cycle mode
Target pressure for constant-pressure mode
Total programmed cycle count
Overcurrent alarm threshold per station
Single-cycle time limit per station
The computer starts the test. Pumps power on at the programmed intervals; solenoid valves deflate at the programmed endpoints; the computer logs inflation count, inflation time, and peak current for every cycle at up to 1-second resolution. All four stations run simultaneously.
When any station's pump exceeds its current threshold or cycle time limit, that station stops automatically and the failure event is logged with the cycle number and the triggering parameter value. The remaining stations continue unaffected.
When all programmed cycles complete on a station (or all four), the test ends for that station. The computer has logged every cycle's data for post-test analysis.
The complete per-cycle dataset — inflation count, inflation time trend, and current trend across all cycles — is reviewed on the computer. Trend analysis identifies when degradation began, what the degradation rate was, and what the primary failure mode was (inflation time increase = flow rate reduction = piston seal or valve wear; current decrease = motor brush wear; overcurrent = mechanical seizure or winding short).
A simple cycle counter tells you the pump survived N cycles. The FH-Q4402 tells you:
At which cycle inflation time began increasing (flow rate degradation onset)
At which cycle peak current began changing (motor condition change onset)
The rate of degradation from onset to failure
Whether all four tested units showed the same degradation pattern (systematic design issue) or different patterns (manufacturing variability)
This information is the basis for meaningful design life specifications, supplier qualification criteria, and product improvement priorities.
A single-unit life test gives one data point. Four simultaneous units give the minimum sample for initial Weibull or reliability estimation. The FH-Q4402 generates four life test data points in the same calendar time as one — a 4× acceleration of the design validation cycle.
Development Stage | Recommended Test Mode |
|---|---|
Early development screening | Pressure-range cycle (fast cycles, identifies immediate degradation) |
Design verification | ON/OFF duty cycle (realistic use simulation) |
Regulatory compliance | Constant-pressure (per IEC 60335-2 or similar standard) |
Accelerated life testing | Pressure-range cycle at elevated pressure and current |
Manual life tests — where an operator checks and records pump performance periodically — miss the between-check data and introduce timing variability in the measurement. Computer logging at 1-second resolution captures everything between operator visits, independent of when the operator actually checks the machine.
Both machines test four air pumps simultaneously, but they serve completely different quality functions:
FH-Q4402 (Life Endurance) | FH-Q4404 (Production Performance) | |
|---|---|---|
Purpose | How long does the design last? | Is this unit within spec right now? |
Test subject | Design samples (R&D, validation) | Every production unit (QC) |
Test duration | Hours to weeks | Minutes per unit |
Data output | Time-series trends across 500+ cycles | Six parameters per unit, pass/fail |
Traceability | Per-station time series | Per-unit barcode logging |
Cycle recording | 500+ cycles per unit | Single-cycle (one test pass) |
Data resolution | 1-second continuous | Per-test-step snapshot |
Power supply | 12V / 30A (pump supply) | Programmable AC (1–300V / 1–22A) |
Primary use | Development, design verification, reliability | Production line, 100% inspection |
When to use the FH-Q4402: Design validation, reliability qualification, life spec setting, failure mode investigation, supplier part qualification.
When to use the FH-Q4404: End-of-line 100% production QC, batch release testing, incoming inspection.
When to use both: A complete quality program uses both — the FH-Q4402 to qualify the design and establish the life specification, and the FH-Q4404 to verify that every production unit meets the performance specification at ship time.
A portable tire inflator manufacturer was receiving warranty returns from a subset of units that failed within the first 50 inflation cycles — far below the rated 300-cycle life. Running four units simultaneously on the FH-Q4402 in pressure-range cycle mode, the current trend data showed a rapid current decrease starting at cycle 15–20 on the failing units — consistent with brush wear rather than motor seizure or seal failure. Correlation with production records identified that the affected units came from a batch with undersized brush material. The data from the FH-Q4402 provided the failure mode identification and the cycle number of onset that directed the root cause investigation.
An OEM pump supplier preparing a design validation submission for a new automotive OEM customer ran FH-Q4402 life tests on four units simultaneously in ON/OFF duty cycle mode (5 min ON / 30 min OFF per the customer's specified use pattern) for 500 cycles. The computer-logged inflation time and current trends across all 500 cycles for all four units were submitted as part of the design validation package — satisfying the customer's requirement for statistically-based life demonstration data with time-series supporting evidence.
A medical device manufacturer using a diaphragm pump in a blood pressure monitor qualification ran FH-Q4402 constant-pressure endurance tests at the rated operating pressure for 10,000 cycles per station — running four stations simultaneously to accumulate four life test data sets in parallel. The per-cycle inflation time trend identified one station showing measurable flow rate reduction starting at cycle 6,500 (diaphragm stiffening from fatigue) while the other three completed 10,000 cycles within specification — a result that quantified the design margin and identified the diaphragm material as the life-limiting component.
The FH-Q4402 is a life endurance tester — it runs pumps through hundreds to thousands of cycles to characterize how long the design lasts and how it degrades. The FH-Q4404 is a production performance tester — it runs six fast performance checks on every production unit to verify it meets specification at ship time. They serve different quality functions and are used at different stages of the product lifecycle.
Three parameters per station per cycle: inflation count (cumulative cycle number), inflation time (time from cycle start to reaching upper pressure), and maximum current (peak current drawn during that inflation cycle). These are recorded at up to 1-second resolution and retained for a minimum of 500 cycles per station.
Two independent conditions: (1) pump current exceeding the preset overcurrent threshold on any cycle, and (2) a single cycle taking longer than the preset maximum cycle time. Each station is monitored independently — one station's failure stops only that station; the others continue.
Please confirm with the Feihong technical team at the time of inquiry — this depends on the specific software configuration. Typically life test machines run all stations on the same test program for comparability.
In pressure-range cycle mode, between the upper pressure and the next cycle start, the solenoid valve deflates the circuit. Setting the pump to stop during this deflation gives the pump a rest period between cycles. Setting the pump to continue running during deflation applies a different (lower back-pressure) load condition to the motor during deflation. The two settings produce different thermal and mechanical stress profiles and may produce different failure modes.
500 cycles per station at full per-cycle data (inflation count, inflation time, maximum current). For higher cycle count applications, the recording capacity can be configured beyond this minimum.
12V / 30A — covering most portable automotive tire inflators, consumer air pumps, and similar 12V-powered products. At 30A total supply capacity with four stations, each station can drive pumps drawing up to approximately 7.5A continuously, or higher current briefly during motor startup transients.

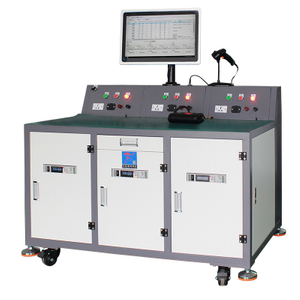

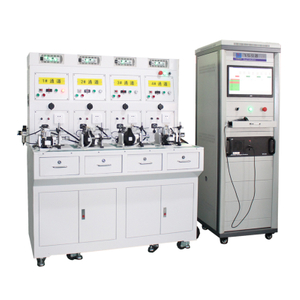

4-Station Air Pump Production Line Performance Test Machine (FH-Q4404) — the complementary production QC machine; tests six performance parameters per unit for 100% production inspection with barcode traceability; used after the FH-Q4402 qualifies the design
Leakage Rate / Air Tightness Tester — high-precision leak detection for pump housings and valves at sub-assembly stage; upstream screen before life test sample selection
Motor Performance and Efficiency Test Bench — isolated motor characterization before assembly; identifies motor-level quality issues that would confound pump-level life test results
Temperature Chamber (Customer-Supplied) — FH-Q4402 stations can be placed inside a customer-supplied temperature chamber for thermally-accelerated life testing at elevated temperatures
Feihong Machine (Dongguan Feihong Instrument and Equipment Co., Ltd.) designs and manufactures air pump life testing and production testing equipment for manufacturers and testing laboratories worldwide.
To get started:
Request a Quote — share your pump type, rated voltage, target life cycle count, and test mode requirements
Request Technical Datasheet — full station layout, pneumatic schematic, and software data logging specification
Schedule a Demo — see the FH-Q4402 run a live pressure-range cycle life test with real-time trend display alongside the FH-Q4404 production tester
