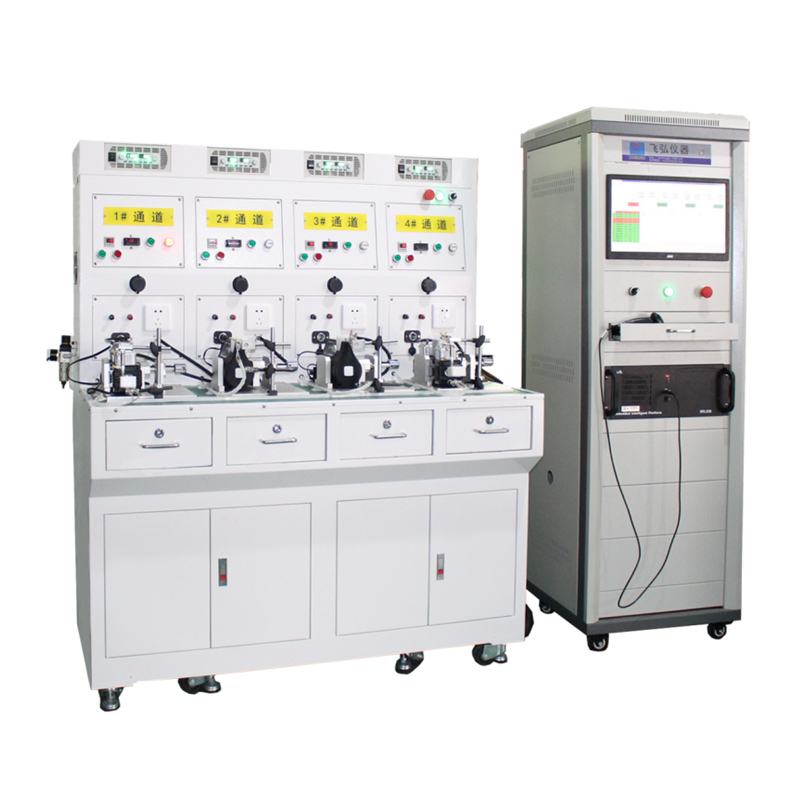

The Vehicle Air Compressor Standard Test Platform is a professional testing system designed for performance verification, quality control, and product validation of automotive air compressors and portable tire inflators.

The system automatically evaluates key performance parameters during the inflation process, including pressure, voltage, current, power consumption, and inflation time. By closing the discharge valve and pressurizing the air tank to a preset target pressure, the platform accurately records the operating characteristics of the air compressor throughout the entire testing cycle.

Suitable for R&D laboratories, production quality inspection, incoming quality control, and certification testing, the platform provides reliable and repeatable test data to ensure product compliance with performance specifications and customer requirements.

Key Features

Automated Standard Performance Testing

The system automatically performs inflation tests according to preset pressure targets and records critical operating data throughout the testing process.

Comprehensive Electrical Performance Monitoring

Real-time measurement of:

• Operating Voltage

• Current Consumption

• Power Consumption

• Inflation Time

• Pressure Build-Up Performance

High-Current Testing Capability

Equipped with a 50A current measurement system and high-capacity power supply to support testing of high-performance automotive air compressors.

Accurate and Repeatable Results

Integrated sensors and intelligent control software ensure stable test conditions and highly repeatable measurement results.

Expandable Air Storage System

The standard 20-liter air tank can be upgraded to a 32-liter capacity to accommodate different testing requirements and product specifications.

Main Test Functions

Inflation Performance Test

Evaluate the compressor's ability to increase pressure from ambient conditions to a predefined target pressure.

Current Consumption Test

Monitor operating current throughout the inflation cycle and identify abnormal power draw conditions.

Voltage Stability Test

Measure voltage performance under load and evaluate operational stability.

Power Consumption Analysis

Calculate real-time and average power consumption during testing.

Inflation Time Measurement

Determine the time required to reach specified pressure levels for product benchmarking and quality verification.

Product Consistency Verification

Compare test data across production batches to ensure stable manufacturing quality.

Technical Specifications

Software & Data Management

The testing software provides:

• Real-Time Pressure Monitoring

• Current & Voltage Curves

• Power Consumption Analysis

• Inflation Time Recording

• Historical Data Storage

• Automatic Test Reports

• Pass/Fail Evaluation

• Data Export Functions

• Quality Traceability Management

Applications

Automotive Air Compressor Manufacturers

Performance validation and quality control for vehicle-mounted air compressors.

Portable Tire Inflator Manufacturers

Product development, production inspection, and reliability testing.

Automotive Electronics Suppliers

Verification of electrical performance and power consumption characteristics.

Quality Inspection Laboratories

Standardized testing and product certification support.

Research & Development Centers

Performance optimization and comparative product evaluation.

Product Advantages

One-Click Automated Testing

Reduces operator involvement and improves testing efficiency.

Comprehensive Data Collection

Simultaneously records pressure, voltage, current, power, and inflation time.

High-Load Testing Capability

Supports high-current air compressor products up to 50A operating conditions.

Accurate Quality Evaluation

Provides repeatable and traceable test results for product verification and quality assurance.

Flexible System Expansion

Upgradeable air tank capacity and customizable testing programs accommodate various product types and testing standards.

FAQ

Q1: What products can be tested on this platform?

A: The system is suitable for vehicle-mounted air compressors, portable tire inflators, DC air pumps, and automotive inflation systems.

Q2: What parameters can be measured during testing?

A: The platform measures pressure, voltage, current, power consumption, and inflation time throughout the entire test cycle.

Q3: Can the target pressure be customized?

A: Yes. Users can freely set the target pressure according to product specifications or testing standards.

Q4: Is the air tank capacity customizable?

A: Yes. The standard configuration includes a 20L tank, while a 32L tank or larger capacities can be provided upon request.

Q5: Can test reports be generated automatically?

A: Yes. The software automatically records test data and generates exportable reports for quality documentation and analysis.

Q6: Is this system suitable for production line quality control?

A: Yes. The platform is designed for both laboratory validation and high-volume manufacturing quality inspection applications.
