Product Application

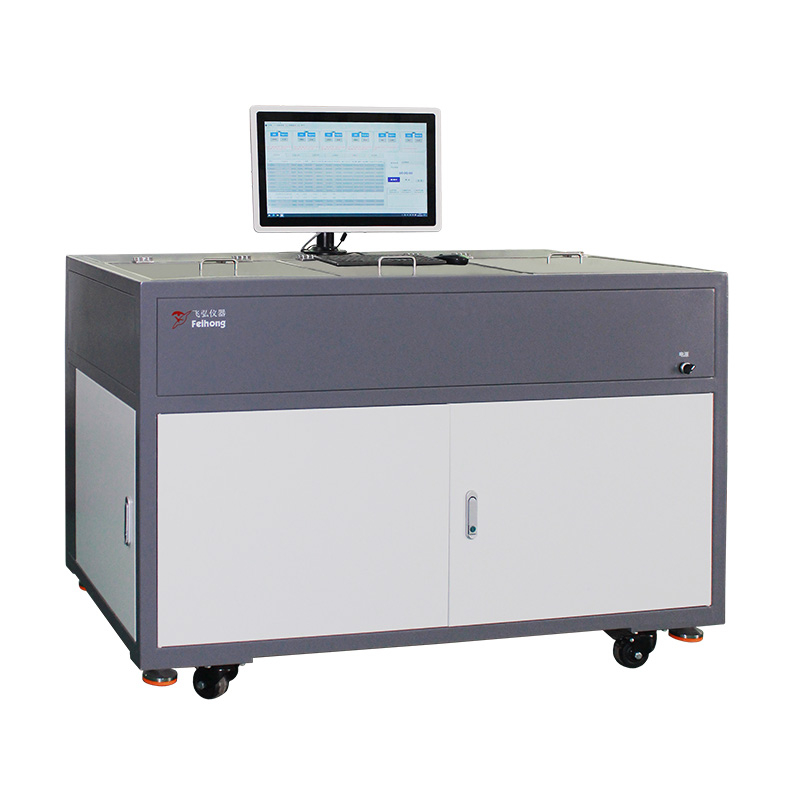

This machine is designed for performance, consistency and durability testing of air pumps. The six stations can operate independently or synchronously, making the system suitable for production-line inspection, laboratory analysis and R&D verification.
Key Features
• Six independent or synchronized test stations
• Measures pressure, flow, current and voltage
• Supports diaphragm, piston, scroll and micro air pumps
• Programmable test conditions and cycle settings
• Automatic curve display, data recording and report generation
Technical Specifications
• Number of stations: 6
• Air pressure test range: 0–200 psi
• Pressure sensor accuracy: ±0.5%
• Flow sensor accuracy: ±0.5%
• Air tank capacity: 10 L
• Overall dimensions: 1510 × 830 × 1430 mm
• Power supply: 220 V, 1 kW
