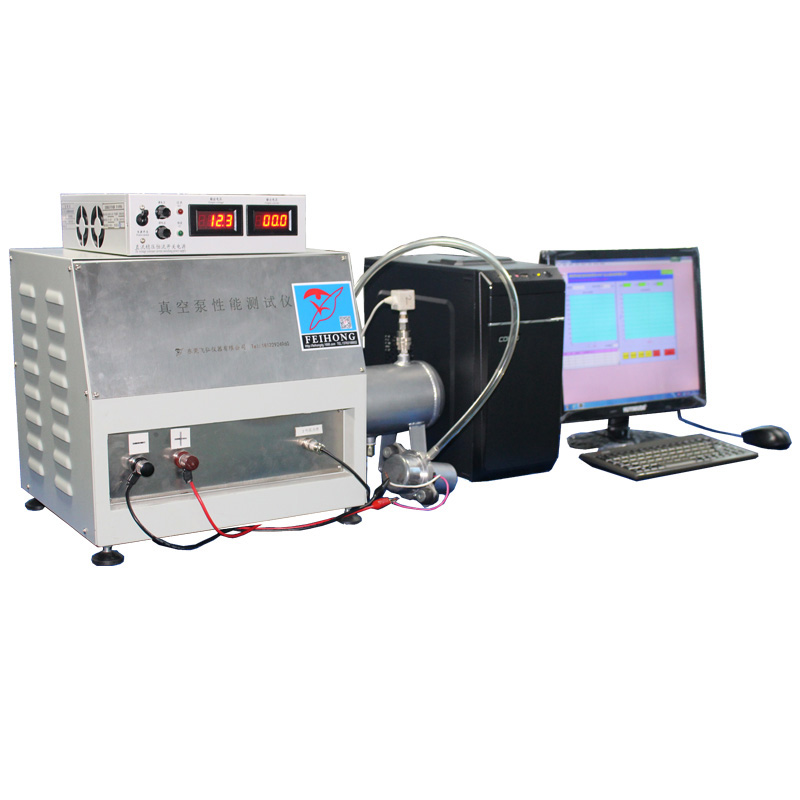

The Vacuum Pump Performance & Endurance Test System is designed to evaluate the operational performance, vacuum generation capability, electrical characteristics and long-term reliability of vacuum pumps.

The system automatically performs vacuum generation cycles, monitors current consumption, records evacuation time and conducts repetitive life cycle testing under programmable conditions.

By simulating real operating environments, the equipment helps manufacturers verify product durability, optimize performance and ensure consistent product quality before shipment.

Suitable for:

• DC vacuum pumps

• Mini vacuum pumps

• Industrial vacuum pumps

• Automotive vacuum pumps

• Medical vacuum pumps

• Laboratory vacuum pumps

• Portable vacuum systems

Why Vacuum Pump Testing Is Important

Vacuum pumps must maintain stable vacuum performance throughout their service life.

Without proper testing, manufacturers may encounter:

✔ Slow vacuum generation

✔ Excessive current consumption

✔ Motor overheating

✔ Reduced vacuum efficiency

✔ Premature component failure

✔ Inconsistent product quality

Our automated testing system enables early detection of performance issues before products reach customers.

Key Testing Functions

Vacuum Performance Test

Evaluate the vacuum generation capability of the pump under controlled conditions.

The system allows users to:

• Set target vacuum pressure

• Measure evacuation performance

• Monitor vacuum stability

• Verify pressure holding capability

Benefits

• Performance validation

• Product comparison

• Quality control verification

Automatic Pressure Cycling Test

The machine automatically performs repetitive vacuum cycles.

Testing sequence:

1. Pump evacuates chamber to target pressure

2. System reaches preset vacuum level

3. Chamber automatically vents to preset pressure

4. Cycle repeats automatically

This simulates actual field operation and accelerates durability evaluation.

Life Cycle Endurance Test

Designed to evaluate long-term reliability and service life.

Users can set:

• Number of test cycles

• Running duration

• Target vacuum level

• Cycle intervals

The system automatically stops when the preset cycle count is reached.

Applications

• Product qualification testing

• Reliability engineering

• Accelerated life testing

Evacuation Time Monitoring

Measures the time required for the pump to achieve the target vacuum level.

Key Benefits

• Detect performance degradation

• Compare product designs

• Evaluate production consistency

The system continuously records evacuation times throughout the life cycle test.

Current Consumption Monitoring

Real-time electrical monitoring provides accurate current measurements during operation.

Parameters monitored:

• Running current

• Peak current

• Current stability

Abnormal current consumption often indicates wear, leakage or motor issues.

Overcurrent Protection Test

Users can define a maximum allowable operating current.

If the pump exceeds the preset limit:

• Alarm is triggered

• Test automatically stops

• Fault event is recorded

This protects both the equipment and the test sample.

Intelligent Automated Control

The system supports fully programmable testing procedures.

Users can configure:

✔ Target vacuum pressure

✔ Test cycle count

✔ Maximum current threshold

✔ Evacuation time limit

✔ Test duration

✔ Automatic stop conditions

This enables unattended operation and repeatable testing results.

Key Advantages

Fully Automated Testing

Minimizes operator involvement and improves testing efficiency.

Performance & Reliability Evaluation in One System

Combines vacuum performance testing and endurance testing in a single platform.

Real-Time Monitoring

Continuous monitoring of vacuum pressure, current consumption and evacuation time.

Automatic Fault Detection

Immediate shutdown upon abnormal operating conditions.

Data Logging & Traceability

Supports complete testing records for quality assurance and certification.

Typical Applications

Vacuum Pump Manufacturers

• Product development

• Design verification

• Factory acceptance testing

Automotive Industry

• Brake vacuum pumps

• EV vacuum systems

• Emission control components

Medical Equipment Industry

• Portable vacuum pumps

• Medical suction systems

Laboratory Equipment

• Analytical instruments

• Vacuum chambers

• Scientific research equipment

Quality Control Laboratories

• Incoming inspection

• Reliability testing

• Certification testing

Technical Specifications

Industries Served

• Automotive Components

• Medical Devices

• Laboratory Equipment

• Industrial Vacuum Systems

• Consumer Appliances

• Packaging Equipment

• Environmental Monitoring Systems

FAQ

What types of vacuum pumps can be tested?

The system can be configured for DC vacuum pumps, industrial vacuum pumps, automotive vacuum pumps and custom vacuum systems.

Can the machine perform automatic life cycle testing?

Yes. Users can define the number of test cycles, and the system automatically performs repetitive vacuum generation and venting operations.

Does the machine monitor evacuation time?

Yes. The system continuously measures and records the time required to reach the target vacuum level.

Can overcurrent conditions be detected automatically?

Yes. Maximum allowable current can be preset, and the machine automatically stops if the limit is exceeded.

Is customized testing software available?

Yes. Test parameters, reports and software functions can be customized according to customer requirements.

Validate Vacuum Pump Performance with Confidence

Ensure product reliability, improve quality consistency and accelerate product development with an advanced Vacuum Pump Performance & Endurance Test System.
