One Integrated Solution for Compressor Motor Quality Control

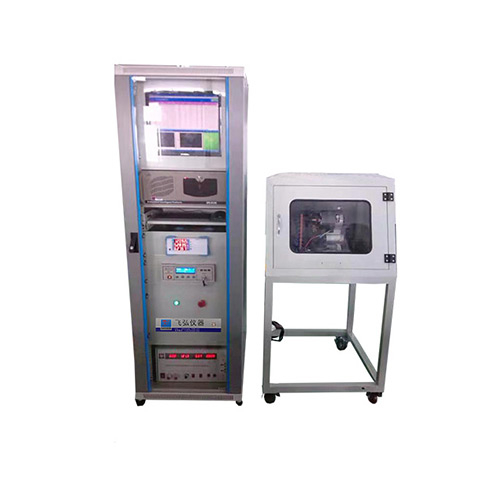

The Air Compressor Motor Testing System is designed for comprehensive electrical performance and safety evaluation of compressor motors. The system integrates multiple critical testing functions into a single automated platform, enabling manufacturers to verify motor quality before assembly or shipment.
Suitable for production lines, quality inspection departments, R&D laboratories, and end-of-line (EOL) testing applications.
Testing Functions
1. Motor Speed Test
Measures motor rotational speed accurately under operating conditions.
Benefits:
✔ Verify design specifications
✔ Ensure motor stability
✔ Evaluate operating performance
2. Motor Current Test
Measures operating current during motor operation.
Benefits:
✔ Detect abnormal current consumption
✔ Identify winding defects
✔ Improve energy efficiency
3. Motor Power Test
Measures input power and evaluates motor electrical performance.
Benefits:
✔ Verify rated power output
✔ Assess energy consumption
✔ Support efficiency analysis
4. Withstand Voltage (Hipot) Test
Performs high-voltage insulation testing between electrical circuits and housing.
Benefits:
✔ Detect insulation weaknesses
✔ Improve electrical safety
✔ Reduce field failure risk
5. Stator & Rotor Coil Resistance Test
Measures winding resistance of stator and rotor coils.
Benefits:
✔ Detect winding defects
✔ Identify poor connections
✔ Verify manufacturing consistency
Why Choose This System?
Traditional Testing:
Speed meter
Current meter
Power analyzer
Resistance tester
Hipot tester
Manual recording
Our Solution:
✔ Integrated testing station
✔ Automatic test sequence
✔ Automatic judgment (PASS/FAIL)
✔ Real-time data collection
✔ Report generation
✔ Improved testing efficiency
Key Features
High-Precision Measurement
Advanced sensors and measurement modules provide accurate and repeatable test results.
Automated Test Procedure
The system automatically executes predefined test sequences, reducing operator intervention.
Real-Time Monitoring
Displays speed, current, power, voltage, and resistance values in real time.
Pass/Fail Evaluation
Automatically compares measured values against preset specifications.
Data Storage & Traceability
Stores complete testing records for quality management and product tracking.
Flexible Fixture Design
Custom fixtures can be designed for various compressor motor models.
Typical Applications
Air Compressor Manufacturers
Final motor inspection before assembly.
Electric Motor Manufacturers
Production quality verification and performance validation.
OEM & ODM Production Facilities
Batch testing and quality assurance.
Quality Control Laboratories
Electrical safety and performance verification.
Research & Development Centers
Motor design validation and performance optimization.
Data Management Functions
The system can automatically record:
Motor Speed (RPM)
Current (A)
Voltage (V)
Power (W)
Coil Resistance (Ω)
Hipot Test Results
Product Serial Number
Test Date & Time
PASS/FAIL Status
Optional Features:
✔ Barcode Scanner Integration
✔ MES/ERP Connectivity
✔ Excel Report Export
✔ PDF Test Report
✔ Cloud Database Storage
Technical Advantages
Item | Conventional Testing | Our Testing System |
Testing Efficiency | Low | High |
Data Collection | Manual | Automatic |
Test Consistency | Operator Dependent | Highly Repeatable |
Quality Traceability | Limited | Complete |
Labor Requirement | High | Reduced |
Production Integration | Difficult | Easy |
Optional Customization
According to customer requirements, the system can be customized for:
Optional upgrades include:
FAQ
Q1: What types of motors can be tested?
The system can be configured for AC motors, DC motors, BLDC motors, induction motors, and compressor drive motors.
Yes. Test limits can be preset, and the system automatically evaluates each product.
Q3: Can testing reports be exported?
Yes. Reports can be exported in Excel, PDF, or customized formats.
Q4: Can this system be integrated into a production line?
Yes. We provide customized automation and MES integration solutions.
Q5: Is fixture customization available?
Yes. Fixtures can be customized according to motor dimensions and production requirements.
Whether you require a standalone testing station or a fully automated end-of-line testing system, our engineering team can design a solution tailored to your motor specifications and production process. Boost quality control, improve efficiency, and ensure every motor meets performance and safety requirements before shipment.
