Product Application

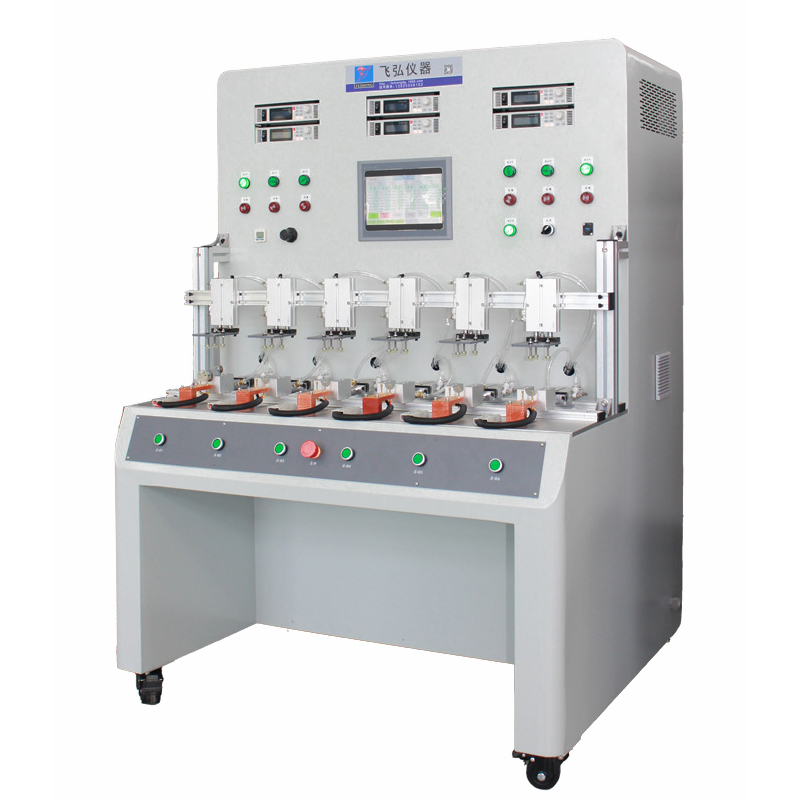

This machine is designed for production-line inspection of air pumps. It tests electrical and pneumatic performance, including voltage, current, pressure, start pressure, inflation time, ambient temperature, overcurrent protection and power.
Key Features
• Six independent testing stations
• Touchscreen control for parameter settings
• Independent power supply, start/stop switch and display for each station
• Adjustable pressure, current and leakage test settings
• Supports loaded-start and high/low-pressure leakage testing
• Automatically exports test data to Excel
Technical Specifications
• Number of stations: 6
• Maximum test pressure: 0–200 psi, adjustable
• Test current and alarm current: 0–50 A, adjustable
• Leakage test: High-pressure and low-pressure modes
• Leakage pressure and test time: Programmable
• Station power supply: 24 V, 50 A
• Air connection: Stainless-steel quick connector and high-pressure hose
• Machine dimensions: 1350 × 1100 × 1730 mm (L × W × H)
• Input power: 220 V, 2 kW, 10 A
