Product Description
Product Overview

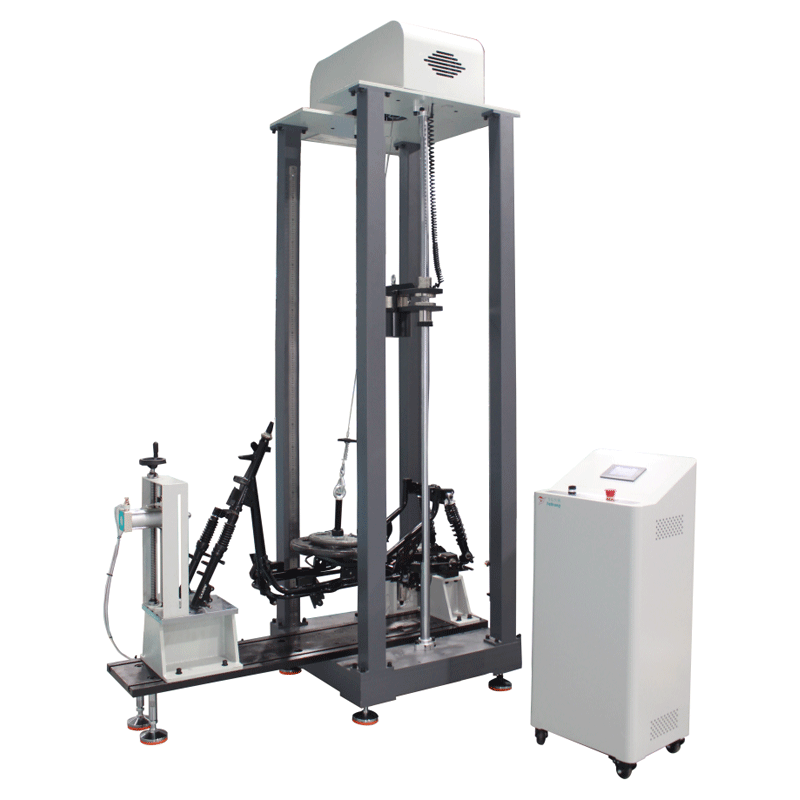

The Bicycle Frame and Fork Impact Testing Machine is designed to evaluate the structural integrity, impact resistance, and safety performance of bicycle and e-bike frame/fork assemblies under dynamic impact conditions.
The equipment simulates sudden road obstacle impacts and extreme riding conditions through falling mass impact tests and frame/fork drop impact tests. It is widely used for laboratory durability verification, product development, quality control, and compliance testing.
The system is suitable for bicycles, mountain bikes, road bikes, electric bicycles, and other light mobility products.
Reference Standards
Main Testing Functions
Frame and fork impact strength testing
Falling mass impact testing
Frame/fork drop impact testing
Structural integrity evaluation
Permanent deformation verification
Front fork impact resistance testing
E-bike frame durability evaluation
Laboratory compliance testing
Main Features
Designed according to ISO4210 testing logic
Simulates real riding impact conditions
Suitable for bicycle and e-bike testing
Stable and repeatable impact testing performance
Heavy-duty laboratory-grade structure
Accurate impact energy simulation
Professional safety testing solution
Easy operation and maintenance
Technical Specifications
Item | Specification |
Machine Size | 1600 × 800 × 2800 mm |
Power Supply | 220V |
Power Consumption | 1 KW |
Testing Principle
The system performs impact resistance evaluation by simulating sudden obstacle impacts and extreme riding loads on bicycle frame and fork assemblies.
The machine supports:
Falling mass impact testing
Frame/fork drop testing
Structural deformation evaluation
Crack and failure inspection
The testing process helps manufacturers evaluate frame durability and verify product safety performance.
Applications
Bicycle manufacturers
E-bike manufacturers
Bicycle R&D laboratories
Quality inspection organizations
Third-party testing laboratories
University research laboratories
Product certification testing
Advantages
ISO4210-oriented testing solution
Reliable structural safety verification
Professional laboratory testing system
Suitable for dynamic impact evaluation
Stable and repeatable test performance
Supports durability and compliance testing
FAQ
What products can be tested with this machine?
The machine is suitable for bicycles, mountain bikes, road bikes, electric bicycles, and similar mobility products.
Which standards does the machine support?
The equipment is designed based on ISO4210-6, GB3565-2005, and related bicycle safety testing standards.
What is the purpose of the impact test?
The impact test evaluates the structural integrity and impact resistance of bicycle frame and fork assemblies under sudden impact conditions.
Can the machine test e-bike frames?
Yes. The machine is suitable for electric bicycle frame and fork impact testing.
What types of impact tests are supported?
The system supports falling mass impact tests and frame/fork drop impact tests.
What does the test evaluate after impact?
The test evaluates:
Structural cracks
Permanent deformation
Frame integrity
Fork damage
Component separation
