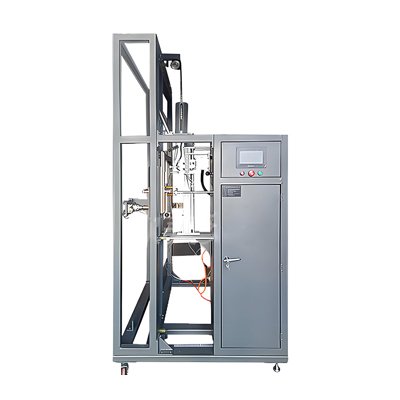

FINGERPRINT PASSWORD LOCK DURABILITY TESTING MACHINE FH-S2202
PRODUCT OVERVIEW
The FH-S2202 is designed to evaluate the operating life, functional reliability and fatigue performance of fingerprint and password smart locks. Programmable pneumatic actuators reproduce fingerprint pressing, password entry, card sensing and handle rotation for repeatable endurance testing.
CORE FUNCTIONS
• Adjustable simulated door load from 100 to 200 kg using weights
• Vertical deformation of the simulated door ≤5 mm at maximum load
• Supports clockwise and counterclockwise lock opening
• Programmable test sequence with at least 15 steps
• Supports semiconductor and optical fingerprint unlocking verification
• Supports password unlocking and proximity-card verification
• Pneumatic actuators reproduce keypad, fingerprint and card operations
• Touchscreen control, data storage and automatic stop on abnormal conditions
TECHNICAL SPECIFICATIONS
Test station: Single station; optional dual-station configuration
Fingerprint pressing force: 0–50 N, accuracy ±0.5%
Keypad test speed: 1–60 cycles/min, programmable
Operating environment: -10°C to 40°C, humidity ≤85% RH
Applicable standards: EN 14846:2008, EN 12209:2016, GA 374 and GB 21556-2008
Power supply: AC 220 V ±10%
Air supply: 0.25–0.6 MPa
Data management: 10-inch touchscreen, data storage, USB export and automatic report generation
Machine dimensions: Approx. 1400 × 500 × 1200 mm (L × W × H)
Simulated door opening direction: Right-hand inward opening
Maximum life-test setting: 250,000–500,000 cycles
APPLICATIONS
Smart lock R&D verification, production quality inspection, fingerprint-module endurance testing, keypad life testing, lock-bolt fatigue evaluation and third-party laboratory testing.
Note: Specifications and fixture configuration may be adjusted according to the confirmed test standard and customization requirements.
