Product Overview：

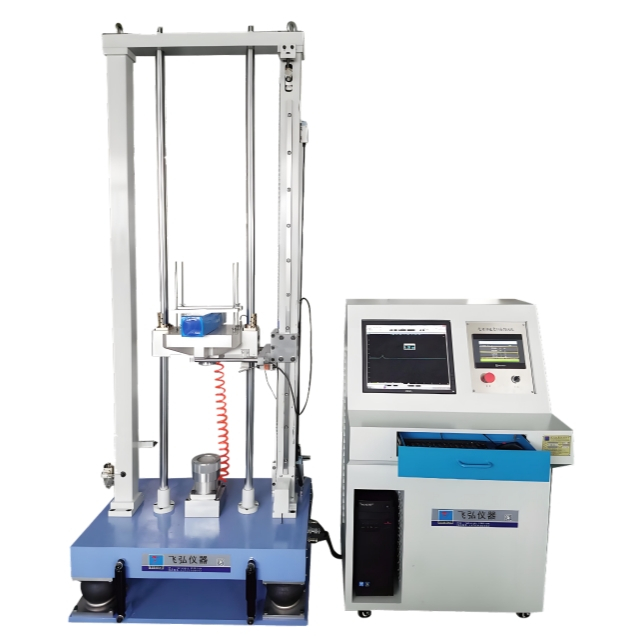

The hydraulic impact collision test bench is used to measure and determine the impact resistance performance of products or packaging, in order to achieve the impact wave and impact energy that products experience in actual environments, and thus improve or optimize the packaging structure of products systematically.
Product Parameters
Test load：About 10KG (can be customized according to requirements)
countertop dimensions：About 200mm * 200mm (can be customized according to requirements)
Pulse waveform：Half sine waveform
Pulse duration：Half sine: 0.6 · 20ms
Collision frequency：80 times/minute
drop height：About 1500mm
Overall dimensions：About 1000mm * 500mm * 2700mm
power consumption：2.5KVA
machine weight：About 1500kg
power supply voltage：AC380v,50/60Hz
